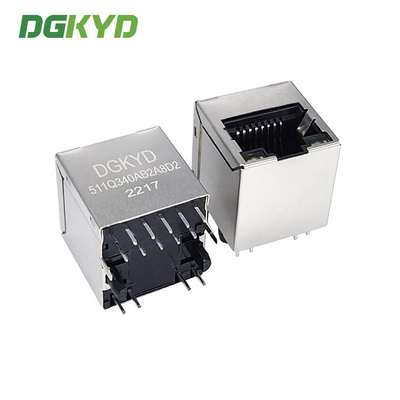

DGKYD511Q340AB2A8D2 180 Degree In Line Network Connector 2.5G Filter 10P8C Interface RJ45 Single Port

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD511Q340AB2A8D2

Detail Information

Connection Type: Pcb Mounting HOUSING: PBT
Connector Type : Modular Jack LED Color: Yes.L-Green/R-Yellow
Filter: With Filter Contact Mating Area Plating Material : Gold 6u/15u/30u/50u
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Size: 16.1*16.85*16.85mm
Latch: TAB-UP
High Light:

180 Degree In Line Network Connector

,

10P8C Interface RJ45 Single Port

,

2.5G Filter RJ45 Single Port

Product Description

DGKYD511Q340AB2A8D2 180 degree in-line network connector 2.5G filter 10P8C interface RJ45 single port



Parameters

Part Number

DGKYD511Q340AB2A8D2

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 1000 base-t Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

10

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

DGKYD511Q340AB2A8D2 180 Degree In Line Network Connector 2.5G Filter 10P8C Interface RJ45 Single Port 0DGKYD511Q340AB2A8D2 180 Degree In Line Network Connector 2.5G Filter 10P8C Interface RJ45 Single Port 1DGKYD511Q340AB2A8D2 180 Degree In Line Network Connector 2.5G Filter 10P8C Interface RJ45 Single Port 2

FAQ:

1.Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2.Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3.Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
