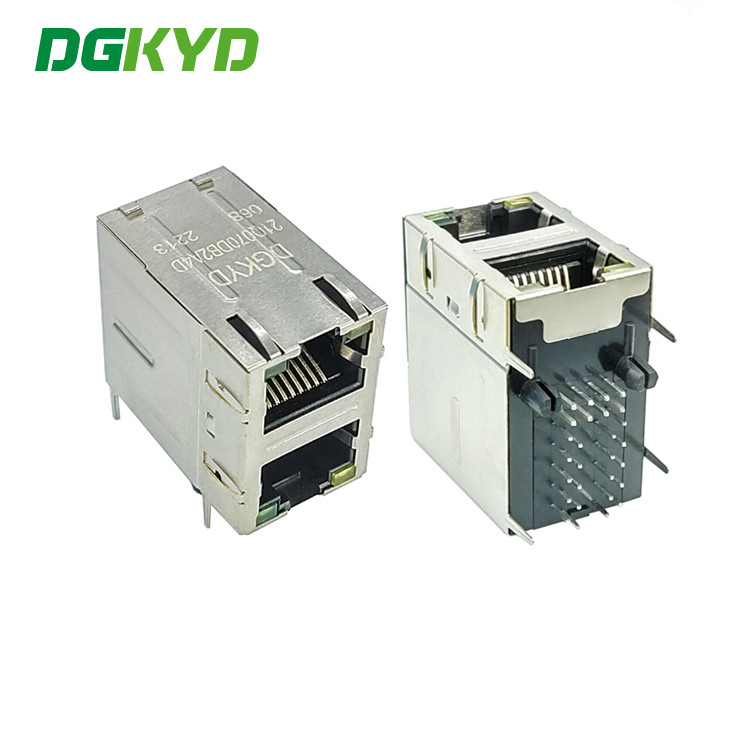

DGKYD21Q070DB2A4D068 1000 Base-T 2X1 Multiport RJ45 Connector With Magnetic Right Angle Ethernet Filter

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 360 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21Q070DB2A4D068

Detail Information

Connection Type: Pcb Mounting HOUSING: PBT
Connector Type : Modular Jack LED Color: Yes.L-Green/R-Yellow
Filter: With Filter Contact Mating Area Plating Material : Gold 6u/15u/30u/50u
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Contacts: 10PIN
Latch: TAB-UP/down
High Light:

Multiport RJ45 Connector With Magnetic

,

Ethernet Filter RJ45 Connector

,

2X1 Multiport RJ45 Magnetic Connector

Product Description

DGKYD21Q070DB2A4D068 1000 Base-T 2X1 Multiport RJ45 Connector with Magnetic Right Angle Ethernet Filter





Parameters

Part Number

DGKYD21Q070DB2A4D068

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up/down
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Multi Ports Number of Positions 

10

Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings
