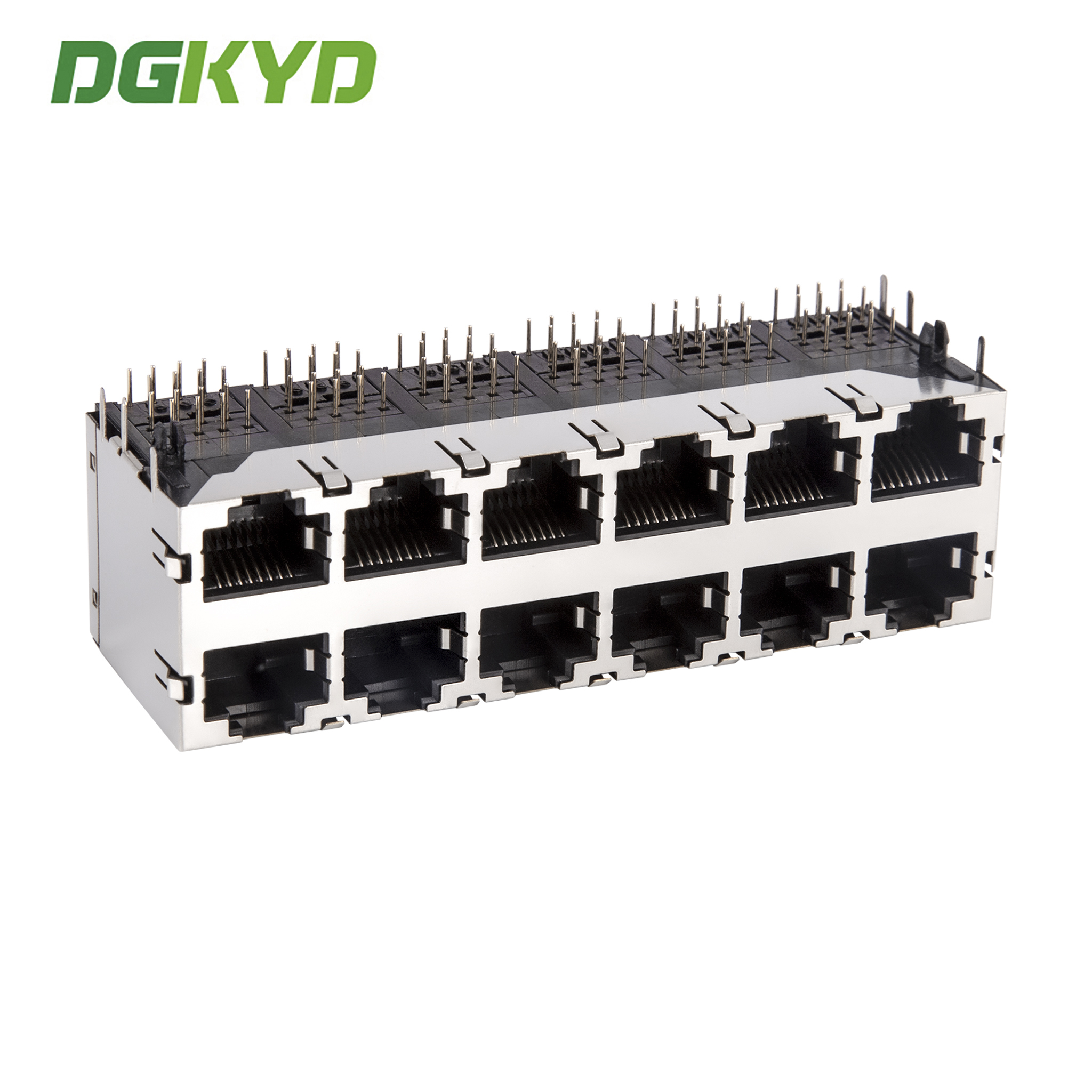

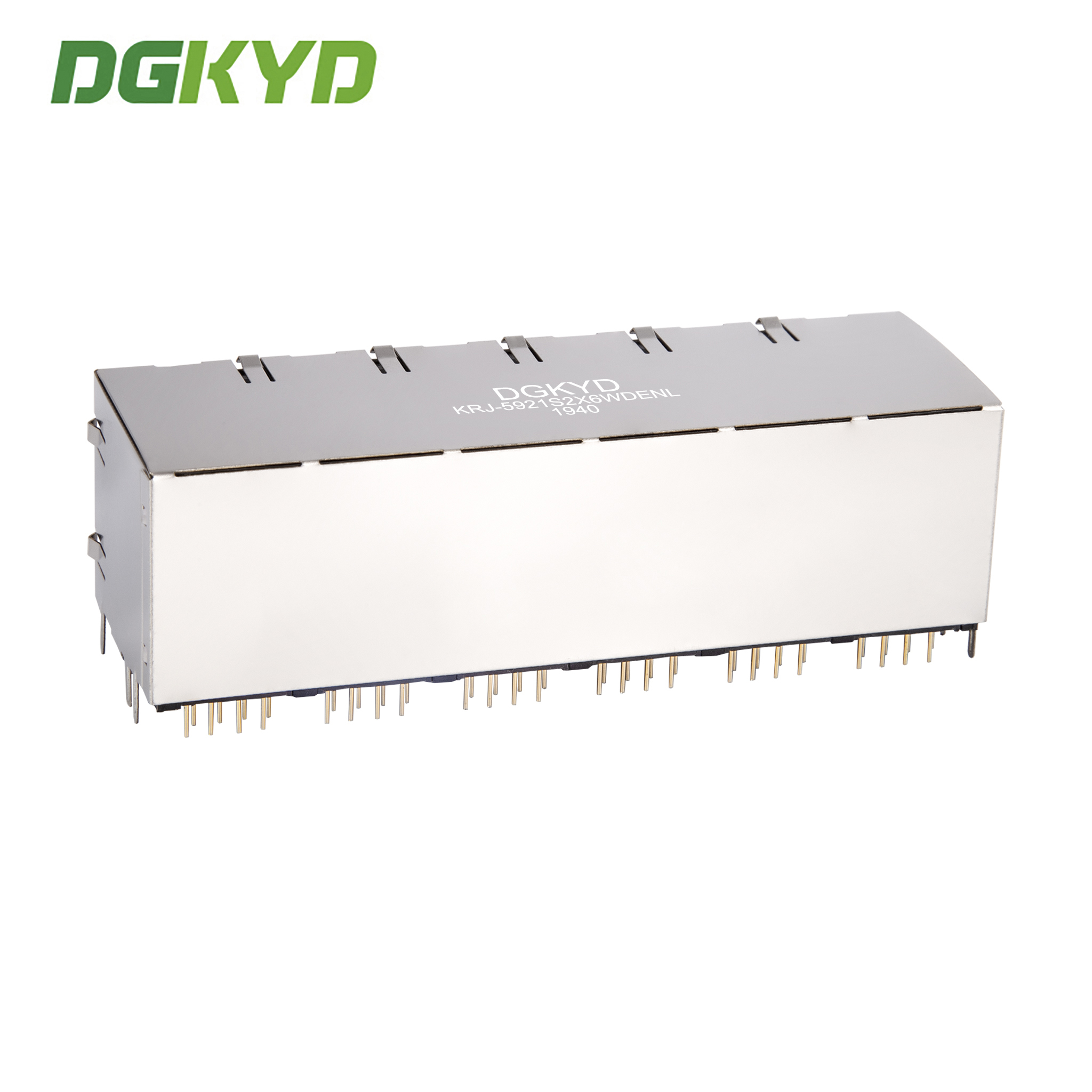

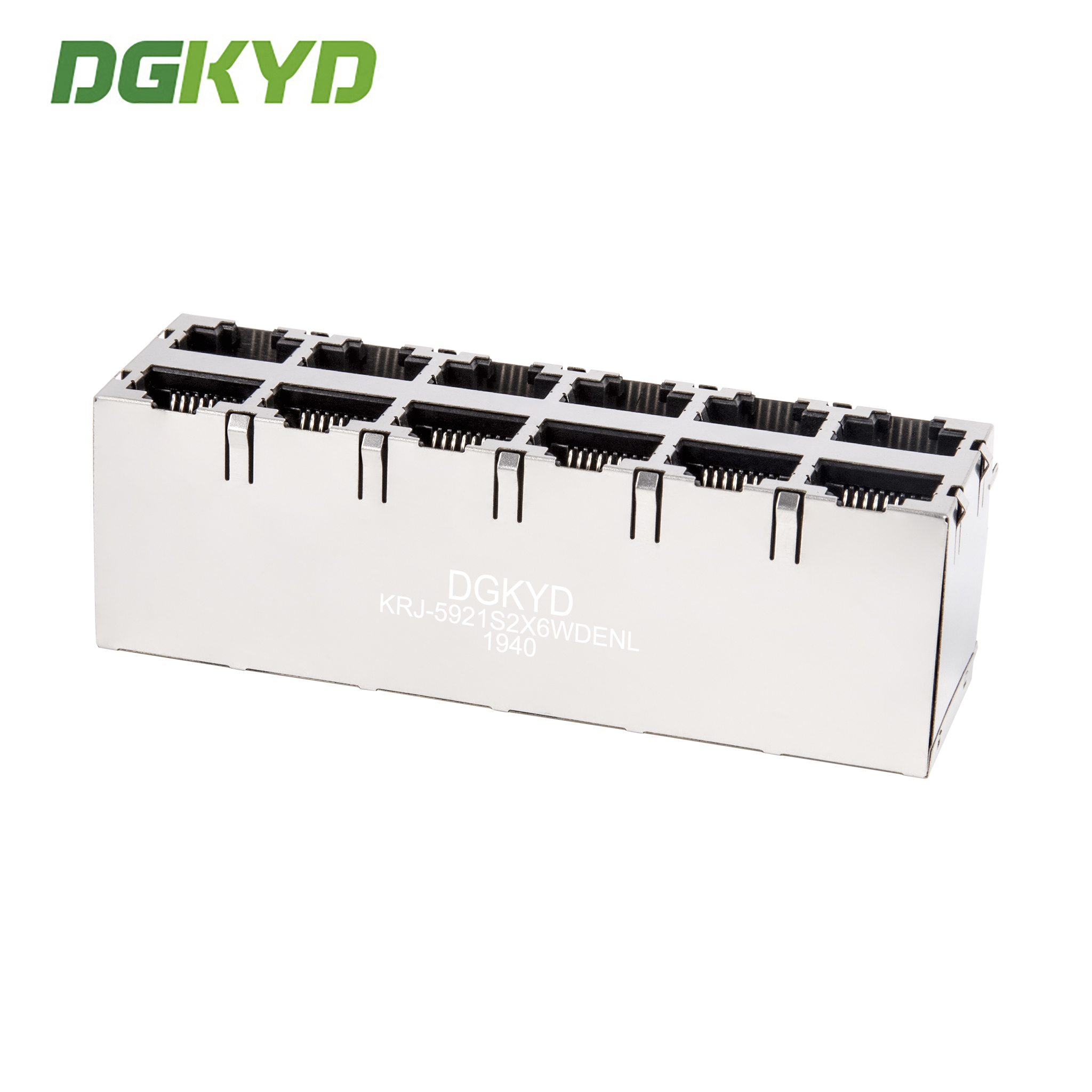

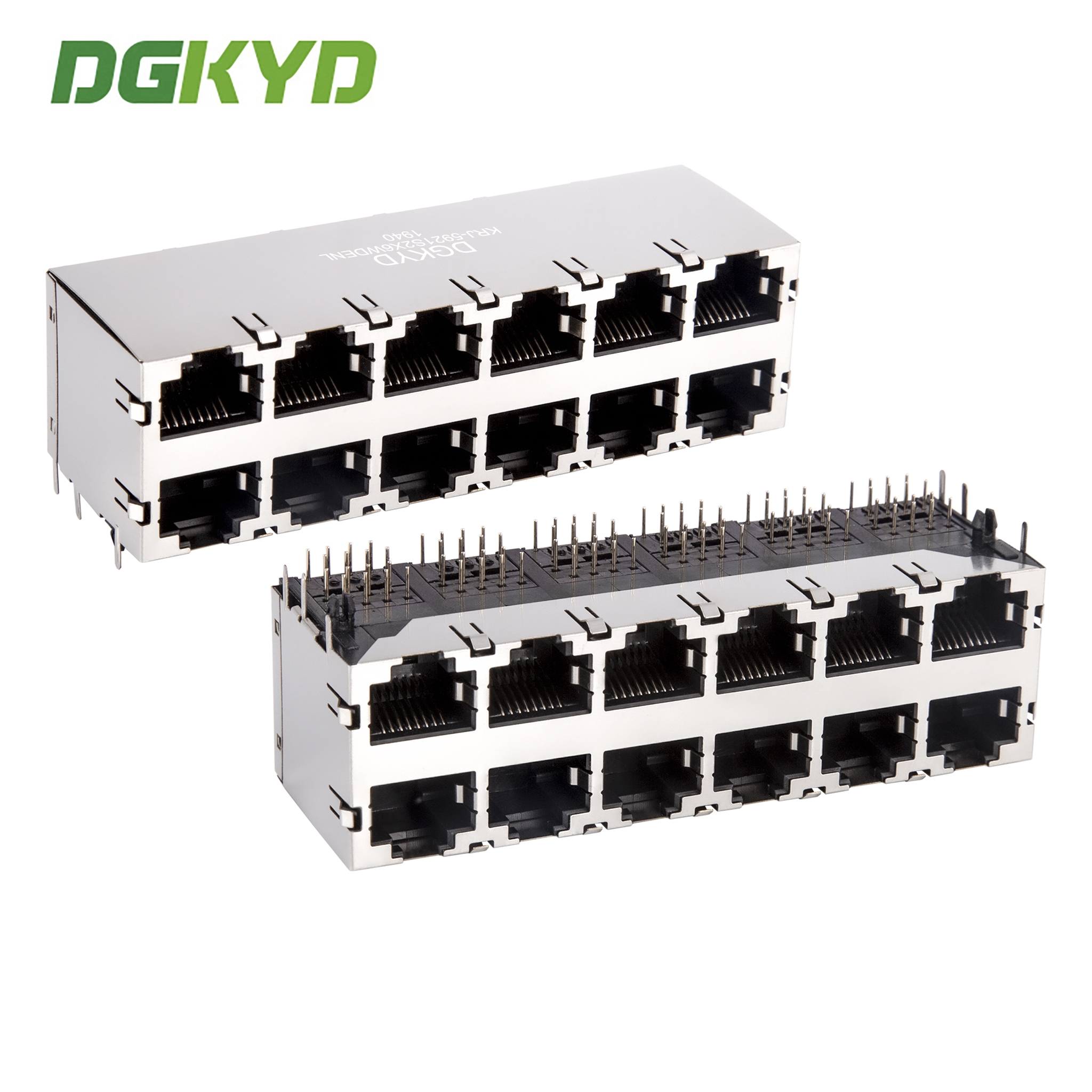

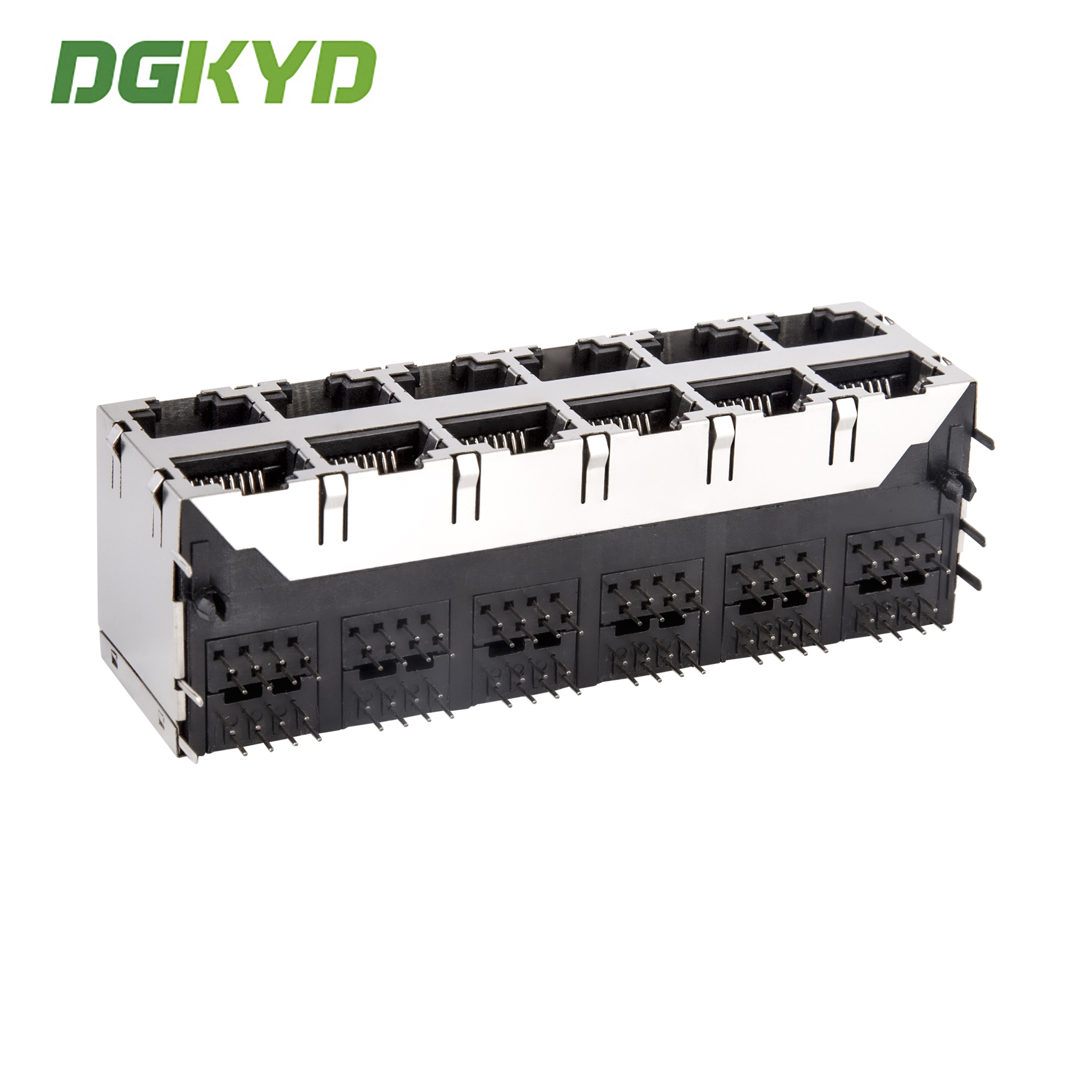

KRJ-5921S2X6WDENL 2X6 RJ45 connector 8P8C no light strip shielded network port socket

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S2X6WDENL

Detail Information
SIDE SOLDER TAILS:	N/A	FLANGE:	NO
Number Of Ports:	2x6	RoHS:	YES
Performance:	CAT3	ORIENTATION:	STACK
Mount Style:	DIP	OEM/ODM:	Yes
Number Of Positions/Contacts:	8p8c (RJ45, Ethernet)	Gold Plating On Contact Pins:	G/FU
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	shielded RJ45 2X6 connector , 8P8C network port socket , no light strip RJ45

Product Description

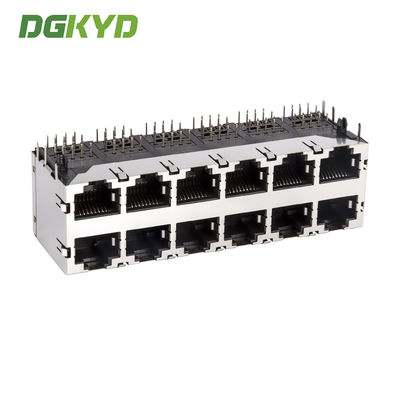

KRJ-5921S2X6WDENL 2X6 RJ45 connector 8P8C no light strip shielded network port socket

Drawing

KRJ-5921S2X6WDENL 2X6 RJ45 connector 8P8C no light strip shielded network port socket

Product Specification Document
KRJ-5921S2X6WDENL.pdf

Parameters

Part Number	KRJ-5921S2X6WDENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	2X6 Ports	Number of Positions	8
Jack Configuration	2X6	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
