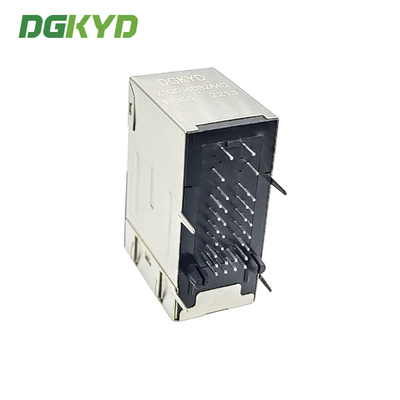

DGKYD21Q064DB2A4DP068 2X1 Multi-Port Socket Gigabit Ethernet Filter POE With Light And Shield RJ45 Connector

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 560Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21Q064DB2A4DP068

Detail Information

Product Type: RJ45 Encapsulation Method: DoubleIn-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Number Of Positions/Contacts: 8p10c (RJ45, Ethernet)
Number Of Ports: Tap Down/up Dimension (mm): 17.21* 38.35*25.79
Contact Plating: 6u Glod Plating Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

RJ45 Connector With Light And Shield

,

Gigabit Ethernet Filter POE RJ45 Connector

,

RJ45 Multiple Port Connectors With Light

Product Description

DGKYD21Q064DB2A4DP068 2X1 multi-port socket Gigabit Ethernet filter POE with light and shield RJ45 connector



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



 Parameters

Part Number

DGKYD21Q064DB2A4DP068

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down/up
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration    Multiple Ports Number of Positions  10
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

DGKYD21Q064DB2A4DP068 2X1 Multi-Port Socket Gigabit Ethernet Filter POE With Light And Shield RJ45 Connector 0DGKYD21Q064DB2A4DP068 2X1 Multi-Port Socket Gigabit Ethernet Filter POE With Light And Shield RJ45 Connector 1DGKYD21Q064DB2A4DP068 2X1 Multi-Port Socket Gigabit Ethernet Filter POE With Light And Shield RJ45 Connector 2
