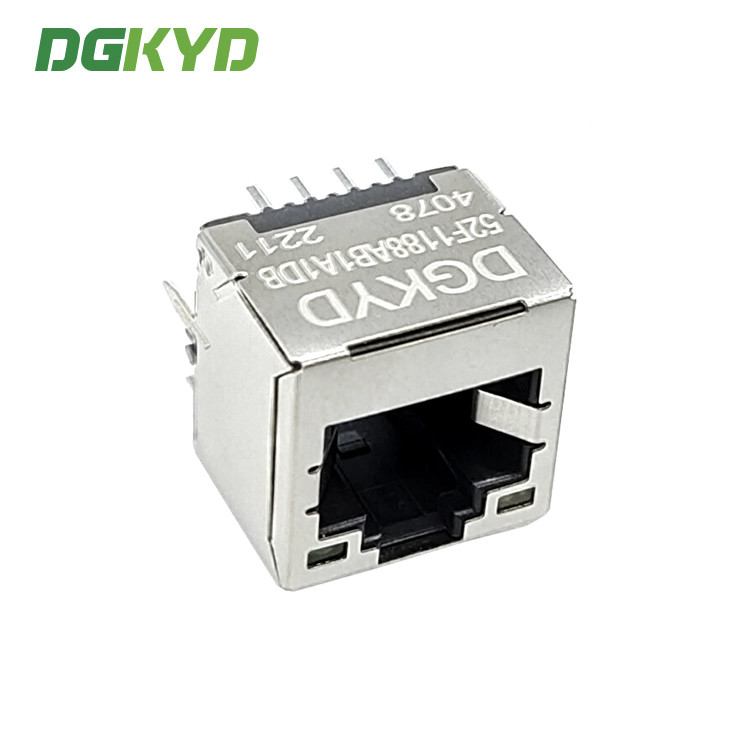

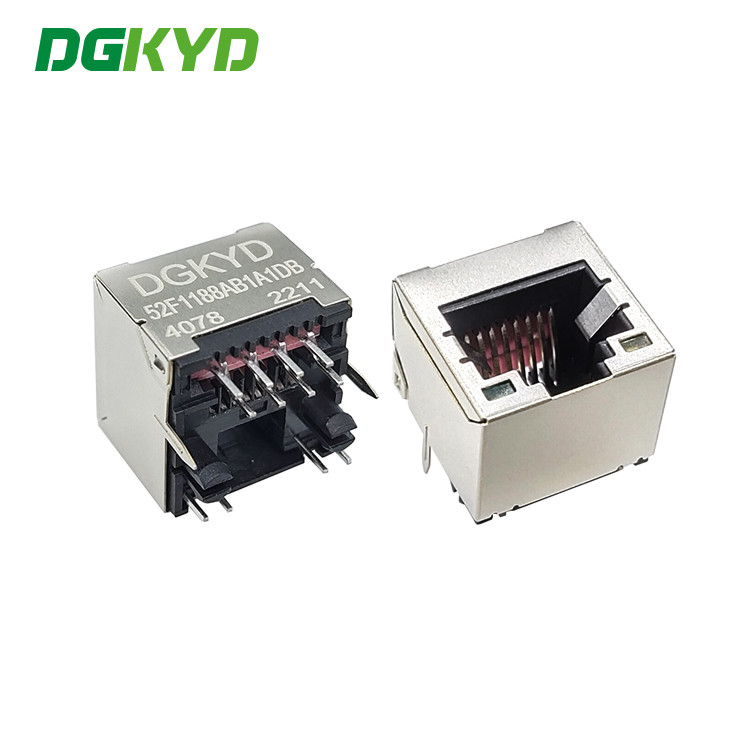

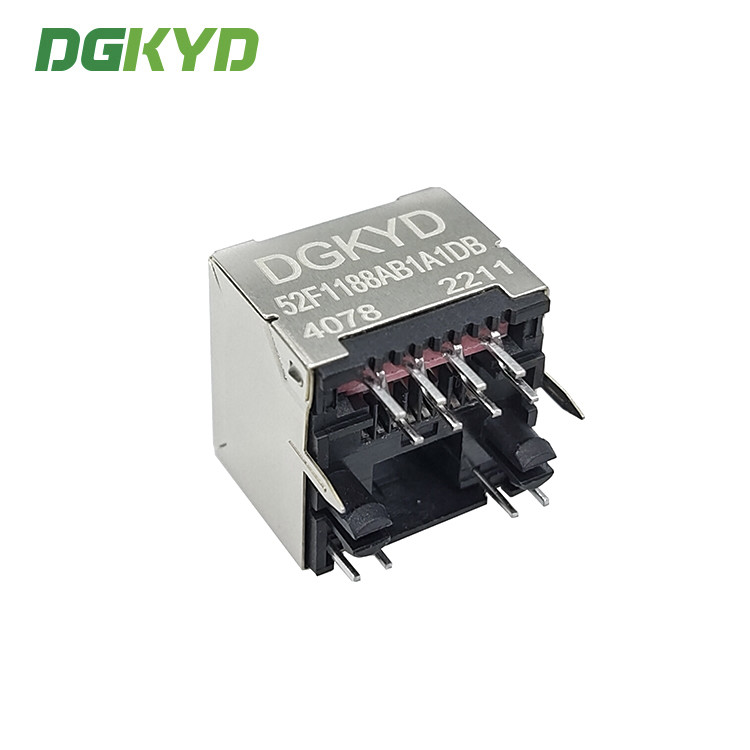

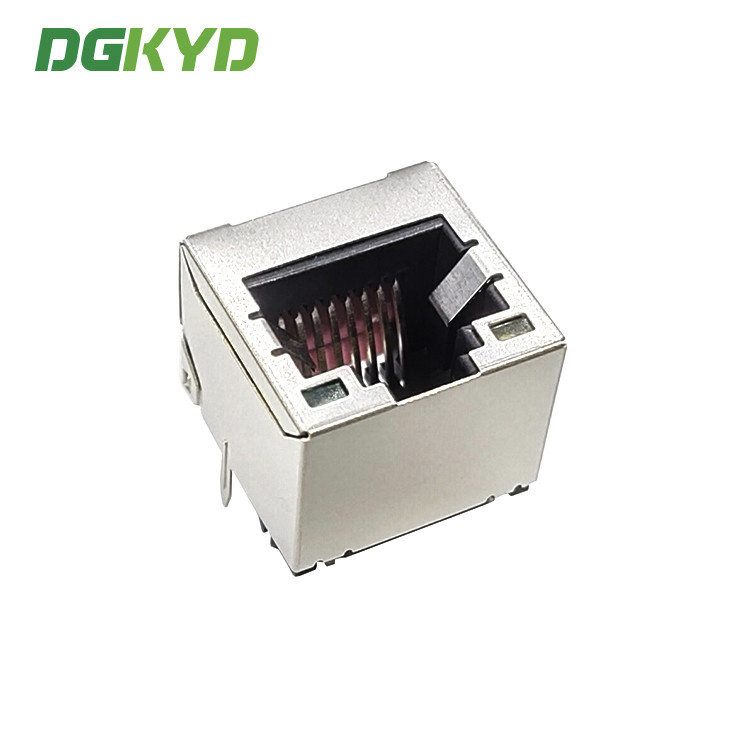

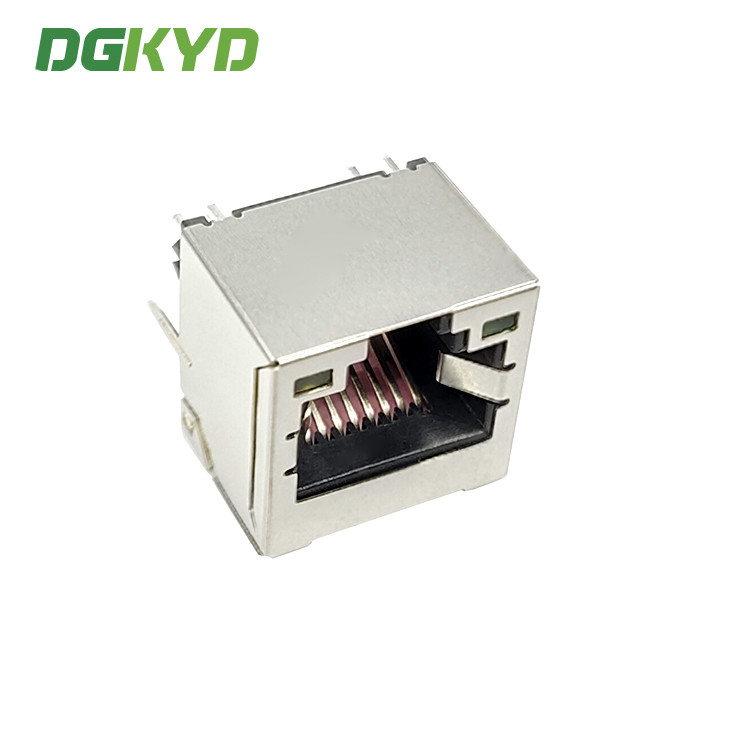

52F Single Port Network Socket 8P8C In-Line Connector With Light Without Transformer Modular Jack

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	4800Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD52F1188AB1A1DB4078

Detail Information
Product Type:	RJ45	Voltage Rating:	Jack
PCB Mount Style:	DIP	Shape:	Rectangle
Number Of Positions/Contacts:	8p8c (RJ45, Ethernet)	Filter:	Without Filter
Latch:	UP	Dimension (mm):	15.8512.915.6（mm）
Gold Plating On Contact Pins:	G/FU	Operating Temperature:	- 40 ℃ ~ 85 ℃
Storage Temperature:	- 40 ℃ ~ 85 ℃
High Light:	Inline 8P8C RJ45 Connector , 8P8C RJ45 Connector With Light , RJ45 Modular Jack Without Transformer

Product Description

52F single port network socket 8P8C in-line connector with light without transformer modular jack

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Delivery time: on time delivery, around two weeks.

2. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

Parameters

Part Number	DGKYD52F1188AB1A1DB4078	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Up
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

52F Single Port Network Socket 8P8C In-Line Connector With Light Without Transformer Modular Jack 0
