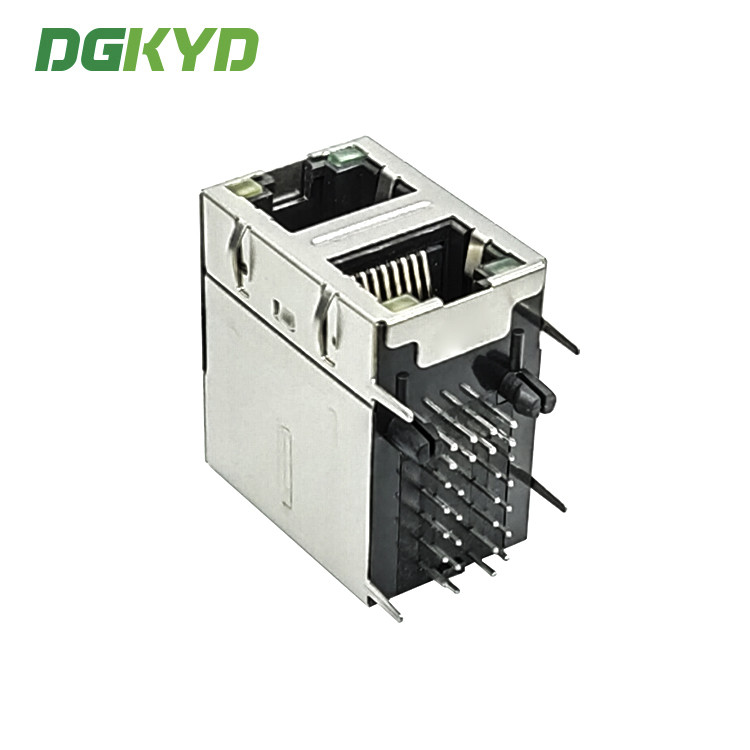

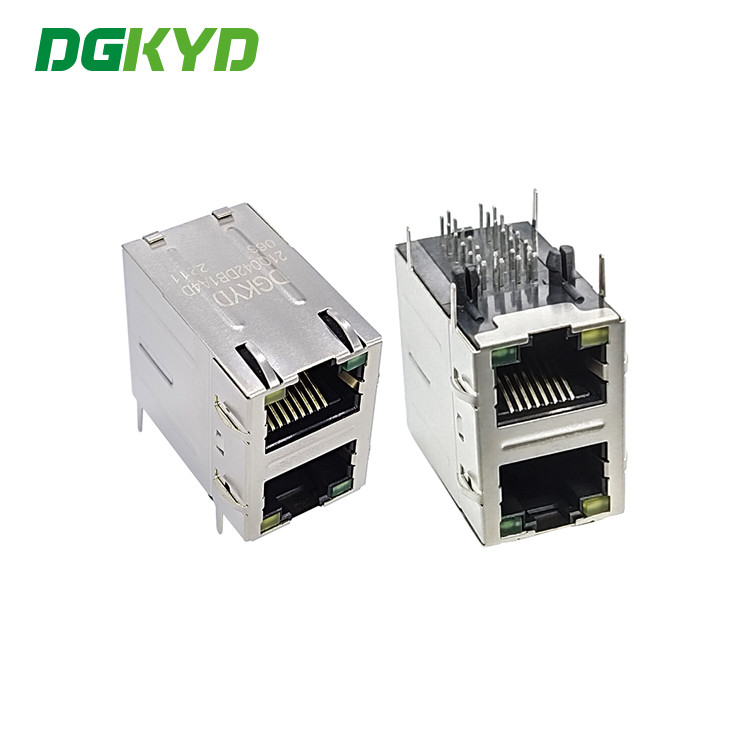

DGKYD21Q042DB1A4D068 Multi-Port Connector 2X1 Modular Socket Gigabit Filter RJ45 Interface 6U

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	360 Tray in Carton	Delivery Time :	20 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD21Q042DB1A4D068

Detail Information
Connection Type:	Pcb Mounting	HOUSING:	PBT
Connector Type :	Modular Jack	LED Color:	Yes.L-Yellow/R-Green
Filter:	With Filter	Contact Mating Area Plating Material :	Gold 6u/15u/30u/50u
Housing Material:	Brass/plastic	Contact Base Material :	Phosphor Bronze
Storage Temperature:	- 40 ℃ ~ 85 ℃	Contacts:	10PIN
Latch:	TAB-UP/down
High Light:	Modular RJ45 Multiple Port Connectors , Gigabit Filter RJ45 Multiple Port Connectors , 6U RJ45 Multi Port Jack

Product Description

DGKYD21Q042DB1A4D068 multi-port connector 2X1 modular socket Gigabit filter RJ45 interface 6U

Parameters

Part Number	DGKYD21Q042DB1A4D068	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Up/down
Filter	With Filter	LED Option	With LED
LED Color	Yes.L-Yellow/R-Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	No	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Multi Ports	Number of Positions	10
Jack Configuration	2X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

Whu Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested
• Quality Guarantee:6 Years
Competitive Price And Service
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• The Company Standard Is Defect-Free Products And Services
2X2 RJ45 Connector with Integrated Magnetics
