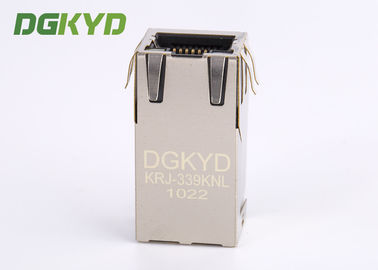

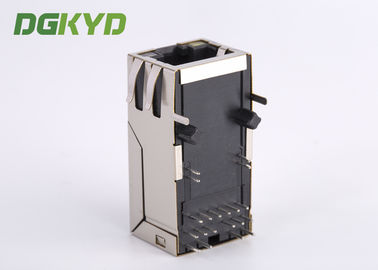

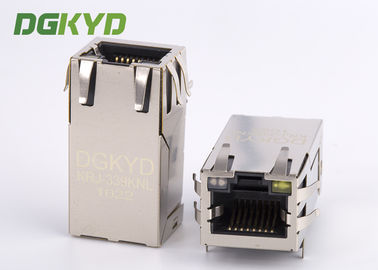

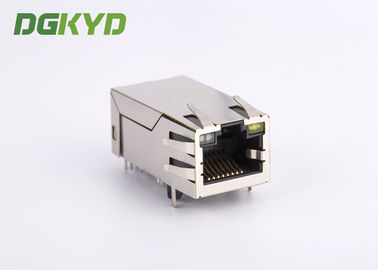

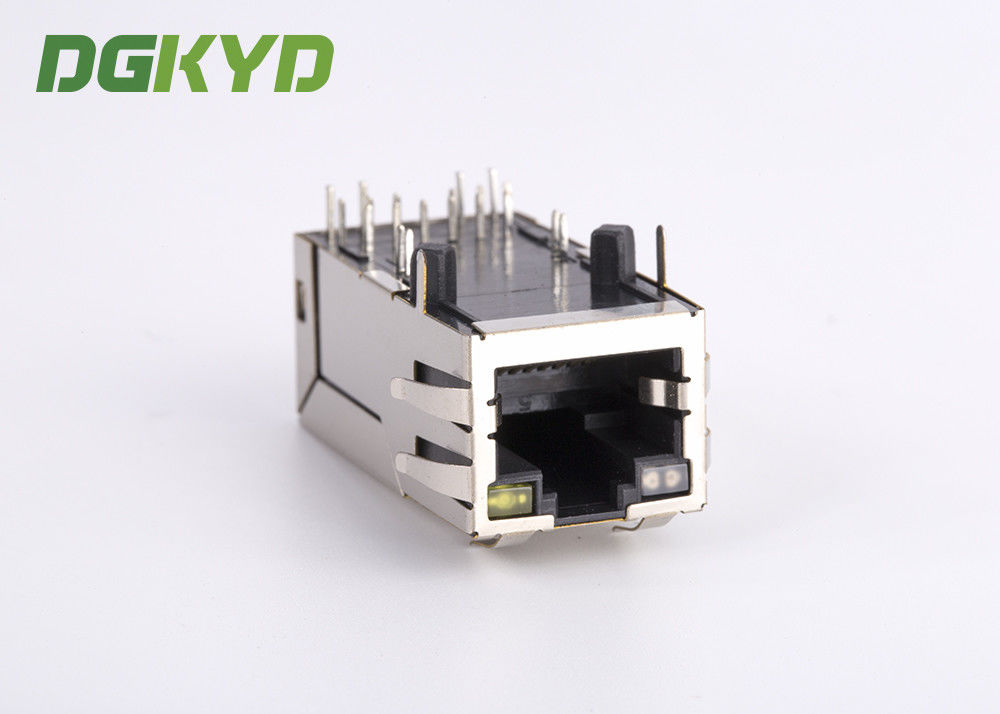

33mm Length Tab Up 12 Pins 1000 BASE RJ45 Modular Jacks With Gigabit Transformer

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-339KNL

Detail Information
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Shielded RJ45 Network Port
OEM/ODM:	Yes	Type:	Multi Pin Rj45 Magjack
Gender:	Rj45 Receptacle	Product Name:	RJ45 Modular Jack
Highlight:	rj45 connector shielded , network rj45 connectors , 1000 BASE RJ45 Modular Jacks

Product Description

33.0mm 1000BASE 12 Pin RJ45 Modular Jacks with Led and EMI Fingers 12P8C

33mm Length Tab Up 12 Pins 1000 BASE RJ45 Modular Jacks With Gigabit Transformer 0

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

ELECTRICAL
Current Rating: 1.5A per pin
Voltage Rating: 125V AC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 1000V AC

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
