Single Port CAT6 SFP Connector RJ45 With Transformer USB Combo

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-008QGYGWUSBNL

Detail Information

Product Name: RJ45 With Transformer Type: RJ45 USB Combo
Housing: Phenolic, PBT Black (UL94V-0) No.Port: RJ45 Single Port
High Light:

CAT6 SFP Connector RJ45

,

29.0mm SFP Connector RJ45

,

CAT6 RJ45 With Transformer

Product Description

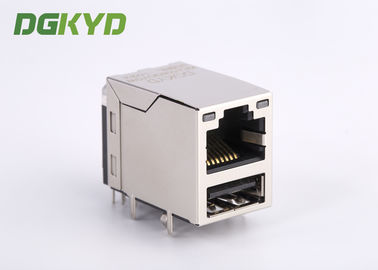

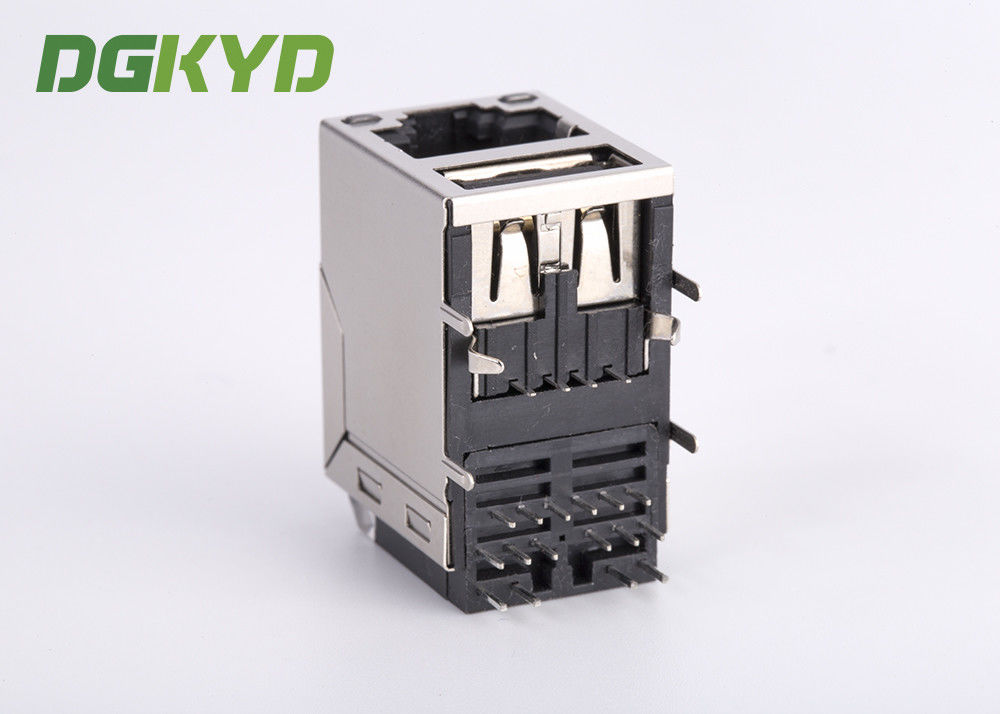

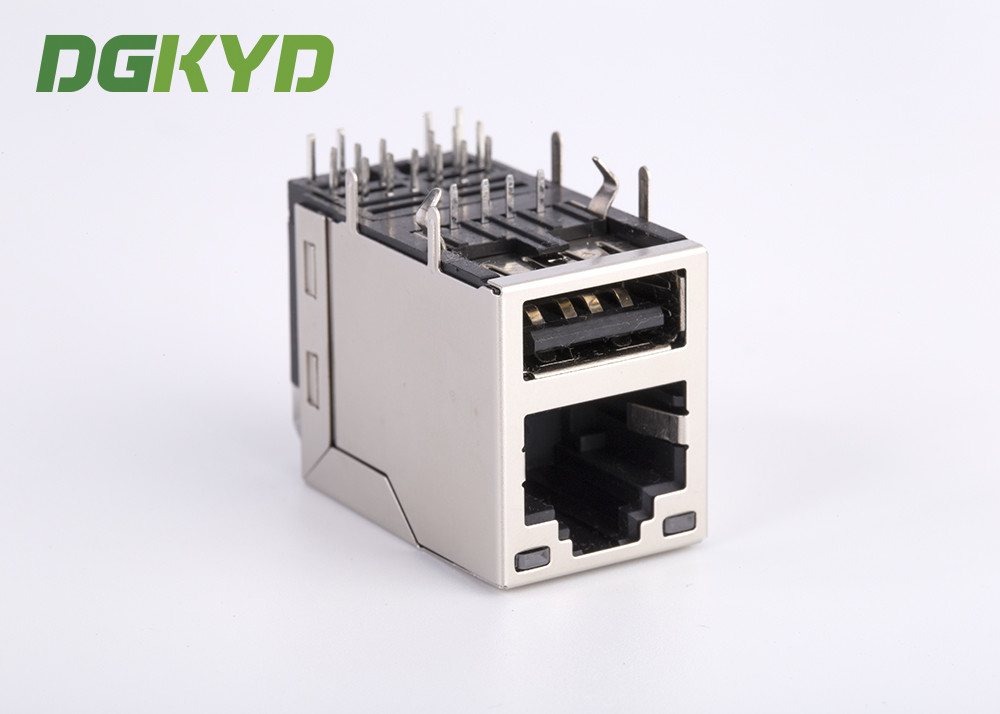

Single Port CAT6 SFP Connector RJ45 With Transformer USB Combo



CAT6 RJ45 Receptacle With Transformer, 1000BASE-TX, MJ, 2X1 RJ45+USB A TYPE, LED



KRJ-008QGYGWUSBNL RJ45 Receptacle with Transformer, 1000BASE-TX, MJ, 2X1RJ45+USB, LED

Part Number: KRJ-008QGYGWUSBNL

  • 10/100Base-Tx RJ45 single port 1X1 Right Angle with LEDS with USB

  • Single port 1X1 Tab-Up RJ45 with internal magnetics

  • Internal magnetics are 100% electrically tested for HI-POT and functionality

  • 350uHminimum OCL with 8mA bias current

  • High performance for maximum EMI suppression

  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

  •  ROHS-6 peak wave solder temperature rating 260℃

  • Operating temperarure range :0℃ to +70℃

  • Storage temperature range :-40℃ to +85℃

  • Number of positions:10

  • Number of contacts loaded:8

  • Shield:YES

  • Rohs compliant

  • Length:29.0mm

  • LEDS:YES

  • EMI fingers:YES

  • LEFT LED:Green,RIGHT LED:Yellow

  • Usage:KRJ-008QGYGWUSBNL

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)

  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold

  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl

  • Housing:Phenolic, PBT Black (UL94V-0)

  • Metal shell:Copper Alloy ,Tin and Nickel plated



RJ45 ,in order to keep good touch between gold finger and crystal head, should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u, according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.





Electrical Specifications at 25℃



.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH   @100KHZ 100Mv 8mA    DC
