DGKYD56221118IWA1DY4 Single Cell RJ45 10P8C Light Free All Plastic Mesh Socket 6U
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 1080 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD511Q068AC1A1DKB068 |
|
Detail Information |
|||
| Connection Type: | Pcb Mounting | HOUSING: | PBT |
|---|---|---|---|
| Connector Type : | Modular Jack | LED Color: | Yes.L-Yellow/R-Green |
| Filter: | With Filter | Contact Mating Area Plating Material : | Gold 6u/15u/30u/50u |
| Housing Material: | Brass/plastic | Contact Base Material : | Phosphor Bronze |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Size: | 15.95*21.55*18.5mm |
| Latch: | TAB-UP | ||
| High Light: | RJ45 Modular Jack With Notch Connector,180 Degree RJ45 Modular Jack,30U RJ45 Modular Connector |
||
Product Description

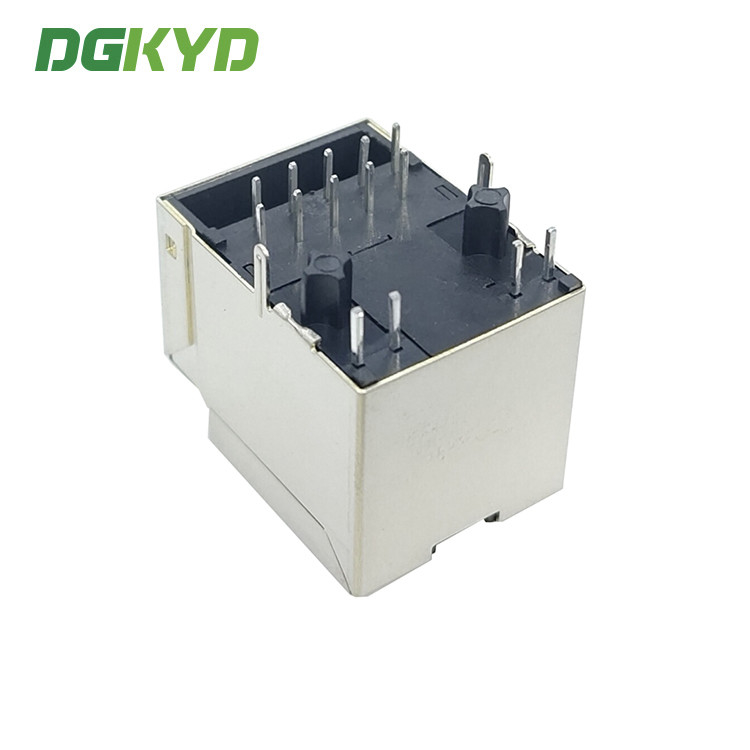

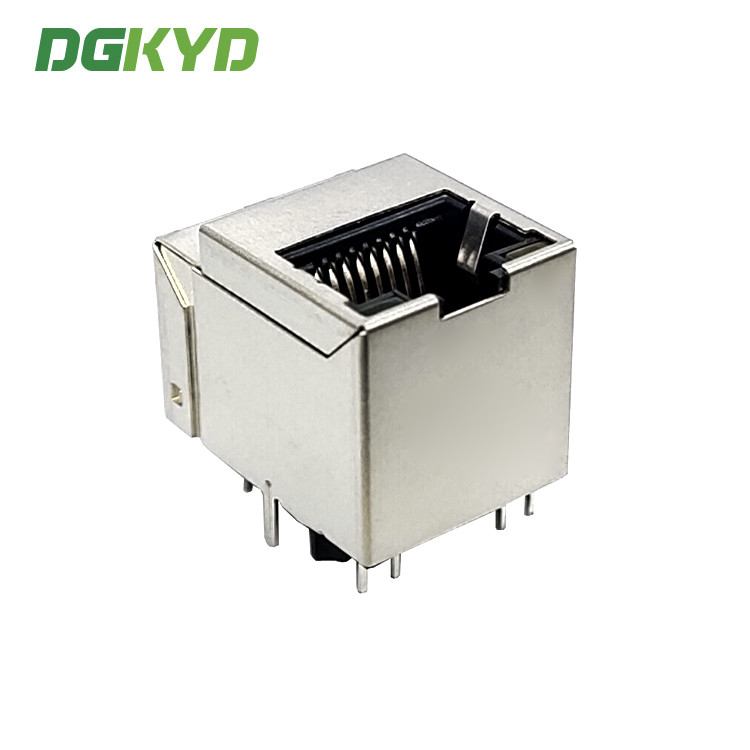

180 degree with notch connector DGKYD 10P8C with light Gigabit Ethernet filter 30U DGKYD511Q068AC1A1DKB068
Parameters
| Part Number |
DGKYD511Q068AC1A1DKB068 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Up |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yes.L-Yellow/R-Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 1000 base-t | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions |
10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | WithWithout Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
