DGKYD56221118IWA1DY4 Single Cell RJ45 10P8C Light Free All Plastic Mesh Socket 6U
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 1080 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD111B015DB2A1DPC |
|
Detail Information |
|||
| Part Number: | DIP Ethernet RJ45 Connector | HOUSING: | PBT |
|---|---|---|---|
| Connector Type : | Modular Jack | LED Color: | Yes.L-Green/R-Yellow |
| Filter: | With Filter | Dimensions: | 16*21.1*13.45mm |
| Contact Plating: | 50u Glod Plating | Contact Base Material : | Phosphor Bronze |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Applications Speed: | 10/100 Base-T, AutoMDIX |
| Latch: | TAB-down | ||
| High Light: | Illuminated RJ45 Shielded Connector,POE Modular RJ45 Shielded Connector,Illuminated RJ45 Modular Connector |
||
Product Description

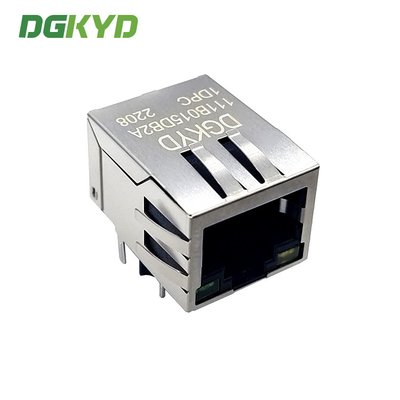

POE Single Port Jack Modular Network Interface RJ45 Shielded Illuminated Connector Ethernet Filtering DGKYD111B015DB2A1DPC
Parameters
| Part Number |
DGKYD111B015DB2A1DPC |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Down |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes.L-Green/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions |
10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | WithWithout Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Why Choose Us
MATERIAL:
HOUSING: PBT,UL 94V-0,BLACK.
TERMINALS BRACKET: PBT,UL94V-0,BLACK.
SHIEI .D: C2680,T=0.20MM,NICKEL PI ATING ON ALL AREA.
TERMINAL: PHOSPHOR BRONZE C5210,T=0.35MM,
6U" GOLD PI ATING ON CONTACT AREA.
MECHANICAL:
DURABILITY : 750 CYCLES MIN.
MATING FORCE : 23N MAX.
OPERATING TEMPERATURE: -40°C~ +859C.
STORAGE TEMPERATURE: -40°C~+85°C.
ALL CRITICAL DIMENSIONS WITH "*"
Drawings
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
