Single Port 8P8C Female CAT6 PCB Connector RJ45 Without Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD211B371GWA4D

Detail Information

Part Number: DIP Ethernet RJ45 Connector HOUSING: PBT
Connector Type : Modular Jack LED Color: No
Filter: Without Filter Gender: Female
Contact Plating: 6u Glod Plating Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Application: PCB
Latch: TAB-UP
High Light:

Female CAT6 PCB Connector

,

8P8C CAT6 PCB Connector

,

CAT6 RJ45 Female Connector

Product Description

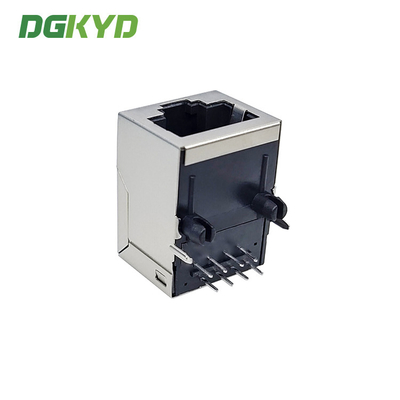

Single Port 8P8C Female CAT6 PCB Connector RJ45 Without Transformer



DGKYD211B371GWA4D Single Port Connector Tab Up 8p8c Female Cat6 Plugs Pcb Connector Rj45 Ethernet RJ45 with transformer



Parameters

Part Number

DGKYD211B371GWA4D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

Single Port 8P8C Female CAT6 PCB Connector RJ45 Without Transformer 0Single Port 8P8C Female CAT6 PCB Connector RJ45 Without Transformer 1Single Port 8P8C Female CAT6 PCB Connector RJ45 Without Transformer 2



FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
