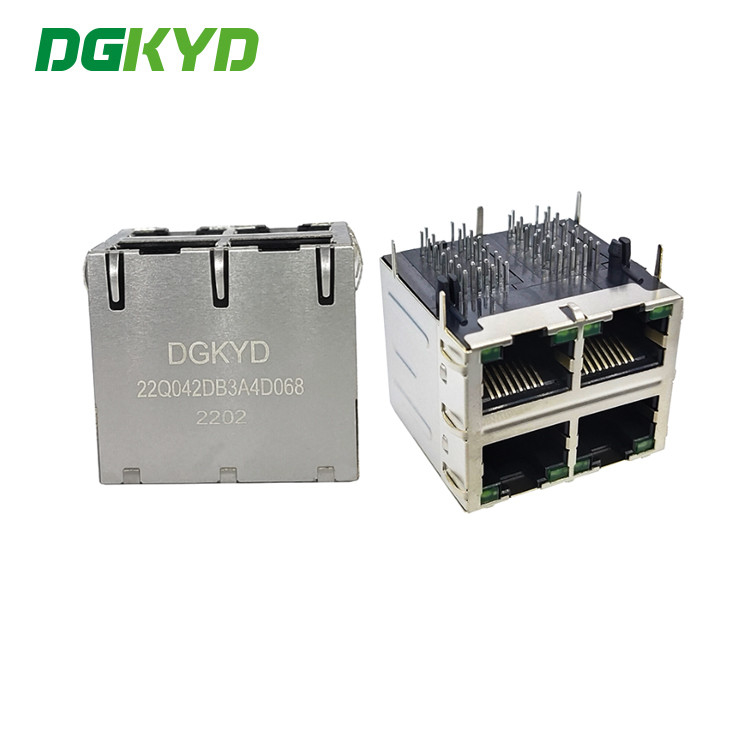

2x2 Multipleport RJ45 Ethernet Jack Female Connector With Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 360 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD22Q042DB3A4D068

Detail Information

Connection Type: Pcb Mounting HOUSING: PBT
Connector Type : Modular Jack LED Color: Yes.L-Green/R-Green
Filter: With Filter Contact Mating Area Plating Material : Gold 6u/15u/30u/50u
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ PCB Mount Angle: Side Entrance
Latch: TAB-UP/down
High Light:

2x2 RJ45 Ethernet Jack

,

PBT Housing RJ45 Ethernet Jack

,

PBT Housing Multiple port Connector

Product Description

2x2 Multipleport RJ45 Ethernet Jack Female Connector With Transformer



DGKYD22Q042DB3A4D068 2x2 Multiport RJ45 Ethernet Jack, Female Connector RJ45 modular connector RJ45 With Transformer



Parameters

Part Number

DGKYD22Q042DB3A4D068

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up/down
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Green Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed No Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Multi Ports Number of Positions 

10

Jack Configuration 2X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

2x2 Multipleport RJ45 Ethernet Jack Female Connector With Transformer 02x2 Multipleport RJ45 Ethernet Jack Female Connector With Transformer 12x2 Multipleport RJ45 Ethernet Jack Female Connector With Transformer 2

Whu Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested
•Quality Guarantee:6 Years
Competitive Price And Service
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• The Company Standard Is Defect-Free Products And Services
2X2 RJ45 Connector with Integrated Magnetics
