90 Degrees Shielded 6Pin Cat6 RJ45 Single Port Connector Network Socket RJ45 With Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD1611B198FA2A10DC057

Detail Information

Part Number: DIP Ethernet RJ45 Connector Brand Name: DGKYD
Type: RJ45, Headers And PCB Receptacles LED Color: Yes.Green/Yellow
Package: Carton Pallet Number Of Pins: 6
Contact Plating: 50u Glod Plating Model Number: Jack Connectors
Storage Temperature: - 40 ℃ ~ 85 ℃ Applications Speed: 10/100/1000 Base-T, AutoMDIX
Latch: TAB-Down
High Light:

Cat6 RJ45 Single Port

,

6Pin RJ45 Single Port

,

6Pin Cat6 RJ45 Connector

Product Description

90 Degrees Shielded 6Pin Cat6 RJ45 Single Port Connector Network Socket

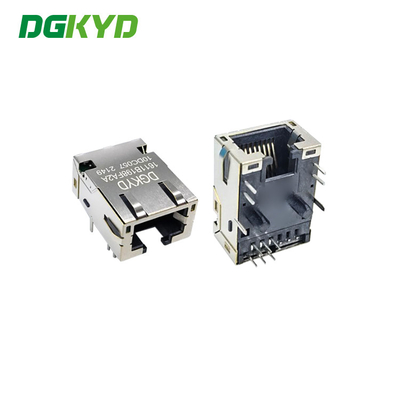

90 degrees Shielded 6Pin network Ethernet Cat6 single port RJ45 connector network socket DGKYD1611B198FA2A10DC057



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



 Parameters

Part Number

DGKYD1611B198FA2A10DC057

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

6

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

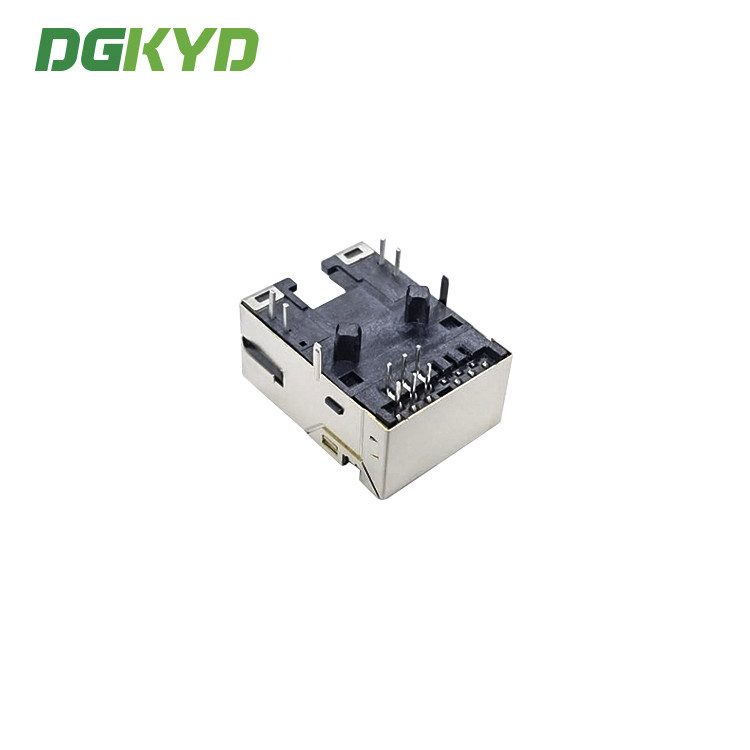

Drawings
