8P10C Single Port RJ45 Connector With Integrated Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111Q356DB2A15D

Detail Information

Part Number: DIP Ethernet RJ45 Connector Encapsulation Method: Single In-line Package
Application: PCB Material: PBT
Orientation: 90° Angle (Right) Number Of Pins: 10
Dimension (mm): 16* 21.1*13.45 Model Number: Jack Connectors
Storage Temperature: - 40 ℃ ~ 85 ℃ Applications Speed: 10/100 Base-T, AutoMDIX
RJ45 Connector Tab Direction: Tap Down
High Light:

8P10C Single Port RJ45 Connector

,

PBT Single Port RJ45 Connector

,

8P10C Ethernet RJ45 Connector

Product Description

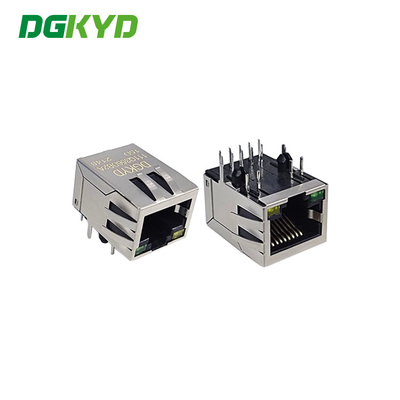

8P10C Single Port RJ45 Connector With Integrated Transformer



Single port RJ45 connector 8P10C 90 degree Gigabit filter with shielding board end network socket



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Characteristics
RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
products: Improved Common Mode Rejection due to additional NiZn cores



 Parameters

Part Number

DGKYD111Q356DB2A15D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

10

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0
