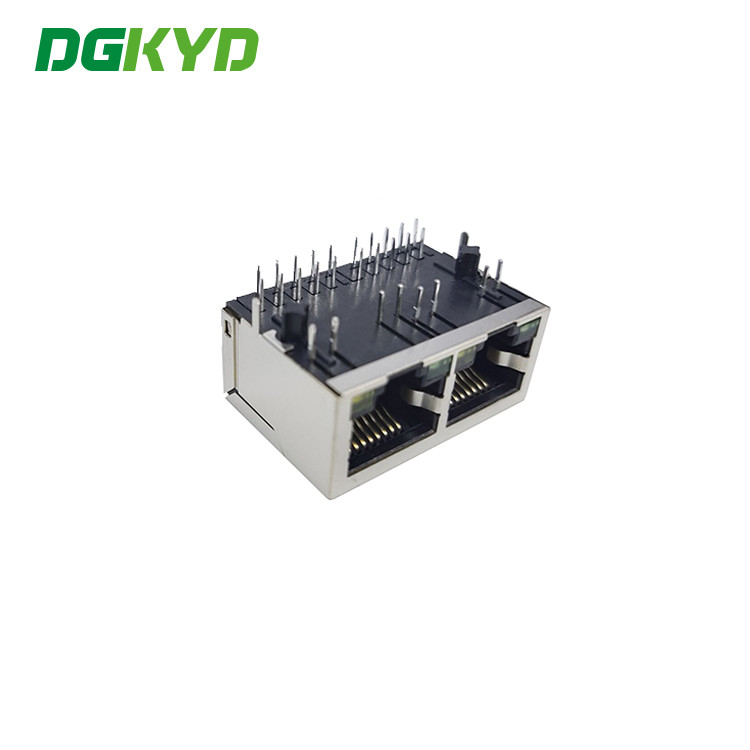

Double Port 1x2 Rj45 Cat6 Connector with Transformer Modular Jack

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 560Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD112Q060AB2A1D

Detail Information

Product Type: RJ45 Encapsulation Method: DoubleIn-line Package
PCB Mount Style: DIP Filter: With Filter
Shield: Brass Number Of Positions/Contacts: 8p10c (RJ45, Ethernet)
Number Of Ports: TAB-Down Dimension (mm): 30.8* 21.1*13.55
Contact Plating: 6u Glod Plating Housing Color: Black
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

1x2 Rj45 Cat6 Connector

,

10Pin Rj45 Cat6 Connector

,

Cat6 10 Pin Ethernet Connector

Product Description

Double Port 1x2 Rj45 Cat6 Connector With Transformer Modular Jack



Rj45 Cat6 Connector Double Port 1x2 gigabit rj45 Transformer modular jack Network 10pin Connector



• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

• Through Continuous Improvements In Quality, Delivery And Service

• Delivery Time:2-3 Weeks After Orders

• Provide New Design For Customer Requirements



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



 Parameters

Part Number

DGKYD112Q060AB2A1D

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration    Multiple Ports Number of Positions  10
Jack Configuration 1X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



FAQ

Q1: Are you a manufacturer or trade company ?
A: we are a manufacturer that specialized in RJ45 connectors and Transformer for more than years.

Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.

Q3: Is it OEM available?
A: Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on
the products.

Q4: How about the lead time ?
A: usually we can ship within 30 days. But for details, please contact our salesman, thank you.



Drawings

Double Port 1x2 Rj45 Cat6 Connector with Transformer Modular Jack 0Double Port 1x2 Rj45 Cat6 Connector with Transformer Modular Jack 1Double Port 1x2 Rj45 Cat6 Connector with Transformer Modular Jack 2
