30U Magnetic 2.5G RJ45 Single Port With Shield Tab Up Motherboard RJ45 With Transformer

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 760Tray in Carton Delivery Time : 15 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD811Q345GWA10DHFB2057(2.5G)

Detail Information

Application: PCB Material: LCP
Shield: Brass Number Of Positions/Contacts: 8p12c (RJ45, Ethernet)
Contact Plating: 30u Glod Plating Number Of Ports: Single Port
Storage Temperature: - 40 ℃ ~ 85 ℃ Configuration: With Transformer And Intergrate Magnetic
RJ45 Connector Tab Direction: Tap UP Certificate: ISO9001/ROHS/SGS
Product Type: 2.5G Base-T RJ45 Connector
High Light:

2.5G RJ45 Single Port

,

30U RJ45 Single Port

,

2.5 G RJ45 Connector

Product Description

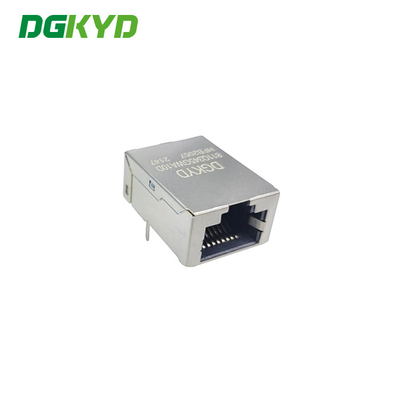

30U Magnetic 2.5G RJ45 Single Port With Shield Tab Up Motherboard



Single Port Tab Up Motherboard Shielded Rj45 Jack Magnetic 2.5G Connector With Shield Rj45 Filter



Single port 1000Base-T integrated filter Ethernet PCB connector RJ45 non-light shielding connector 8P12C 30U



Description:
100/1000Base-TX RJ45 single port (1*1)vertical with LEDs Integrated magnetics connector (ICM),designed to support applications, Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and PC applications.

Features and Benefits :
* Single port (1X1) vertical RJ45 with internal magnetics.
* RoHS-6 peak wave solder temperature rating 260 0C.
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
* Internal magnetics are 100% electrically tested for HI-POT and functionality..

Electrical Performance :
* Meets or exceeds IEEE 802.3 standard for 100Base-T.
* 350 uH minimum OCL with 8 mA bias current.
* High performance for maximum EMI suppression.
* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
* Operating temperature range: -40 0C to +85 0C.
* Storage temperature range: -40 0C to +85 0C.



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



DGKYD is a young professional communication components supplier.

Main Products:

The main independent brand DGKYD, products by domestic leading enterprises OEM OEM production.

Our own brand products include: network interface integrated inductance POE power transformer.

Products are widely used in Ethernet network switches, home and enterprise VPN routers, computers and laptop peripheral, building security, medical equipment, smart TV, smart home, TV box, digital audio and other network communication equipment and terminals.

We believe that we are professional because we are focused. We want to continue to develop our expertise and stay ahead of the curve in our chosen field. Meet customers' needs on time with quality, efficiency and commitment.

 Parameters

Part Number

DGKYD811Q345GWA10DHFB2057(2.5G)

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-up
Filter With Filter LED Option Without LED
LED Color NO Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

12

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings
