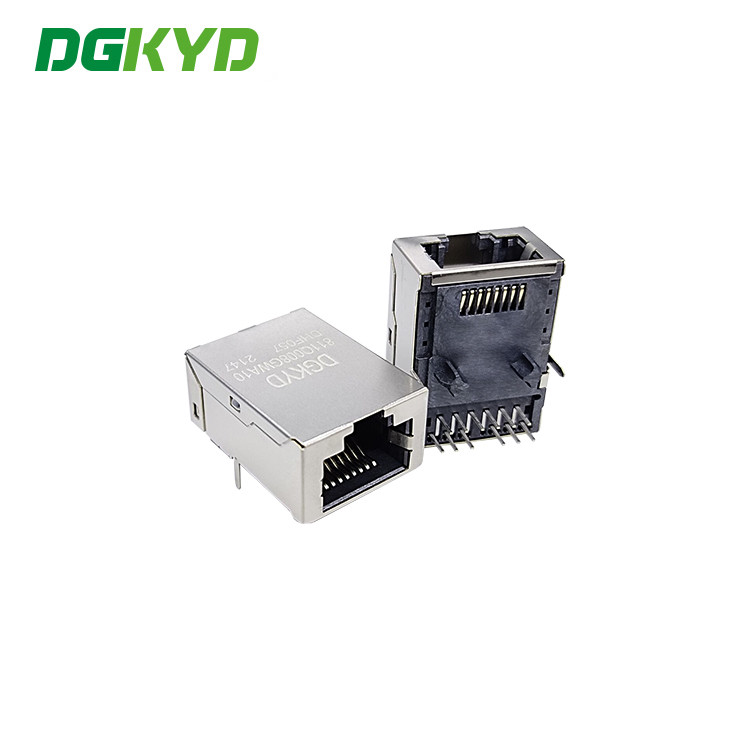

Single Port 8P12C 6U RJ45 Ethernet PCB Connector Non Light Shielding

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 760Tray in Carton Delivery Time : 15 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD811Q008GWA10DHF057

Detail Information

Application: PCB Material: LCP
Shield: Brass Number Of Positions/Contacts: 8p12c (RJ45, Ethernet)
Contact Plating: 6u Glod Plating Number Of Ports: Single Port
Storage Temperature: - 40 ℃ ~ 85 ℃ Applications Speed: 10/100/1000 Base-T, AutoMDIX
RJ45 Connector Tab Direction: Tap UP LED Option: No
Product Type: 1000G Base-T RJ45 Connector
High Light:

8P12C 6U Ethernet PCB Connector

,

8P12C 6U RJ45 PCB Connector

,

LCP Ethernet PCB Connector

Product Description

Single Port 8P12C 6U RJ45 Ethernet PCB Connector Non Light Shielding



Single port 1000Base-T integrated filter Ethernet PCB connector RJ45 non-light shielding connector 8P12C 6U



Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



FAQ

Q1: Are you a manufacturer or trade company ?
A: we are a manufacturer that specialized in RJ45 connectors and Transformer for more than years.

Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.

Q3: Is it OEM available?
A: Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on
the products.

Q4: How about the lead time ?
A:  usually we can ship within 30 days. But for details, please contact our salesman, thank you.



DGKYD is a young professional communication components supplier.

Main Products:

The main independent brand DGKYD, products by domestic leading enterprises OEM OEM production.

Our own brand products include: network interface integrated inductance POE power transformer.

Products are widely used in Ethernet network switches, home and enterprise VPN routers, computers and laptop peripheral, building security, medical equipment, smart TV, smart home, TV box, digital audio and other network communication equipment and terminals.

We believe that we are professional because we are focused. We want to continue to develop our expertise and stay ahead of the curve in our chosen field. Meet customers' needs on time with quality, efficiency and commitment.

 Parameters

Part Number

DGKYD811Q008GWA10DHF057

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-up
Filter With Filter LED Option Without LED
LED Color NO Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

12

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

Single Port 8P12C 6U RJ45 Ethernet PCB Connector Non Light Shielding 0Single Port 8P12C 6U RJ45 Ethernet PCB Connector Non Light Shielding 1Single Port 8P12C 6U RJ45 Ethernet PCB Connector Non Light Shielding 2
