RJ45 Network Interface 10G Integrated Filtering 10P8C DGKYD511Q337AB2A2DB1057 10G 30U IC Device Connector
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 720 Tray in Carton | Delivery Time : | 15 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD1611Q002HWA10DB057(10G) |
|
Detail Information |
|||
| Product Type: | RJ45 10GConnector | Encapsulation Method: | Single In-line Package |
|---|---|---|---|
| PCB Mount Style: | DIP | Shape: | Rectangle |
| Shield: | Brass | Number Of Pins: | 12 |
| Dimension (mm): | 17.53* 23.88*11.3 | Gold Plating On Contact Pins: | 30U |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Speed: | 10G |
| RJ45 Connector Tab Direction: | Tap Down | ||
| High Light: | 8P12C RJ45 Network Port Connector,10G Network Connector RJ45,10G RJ45 Network Port Connector |
||
Product Description

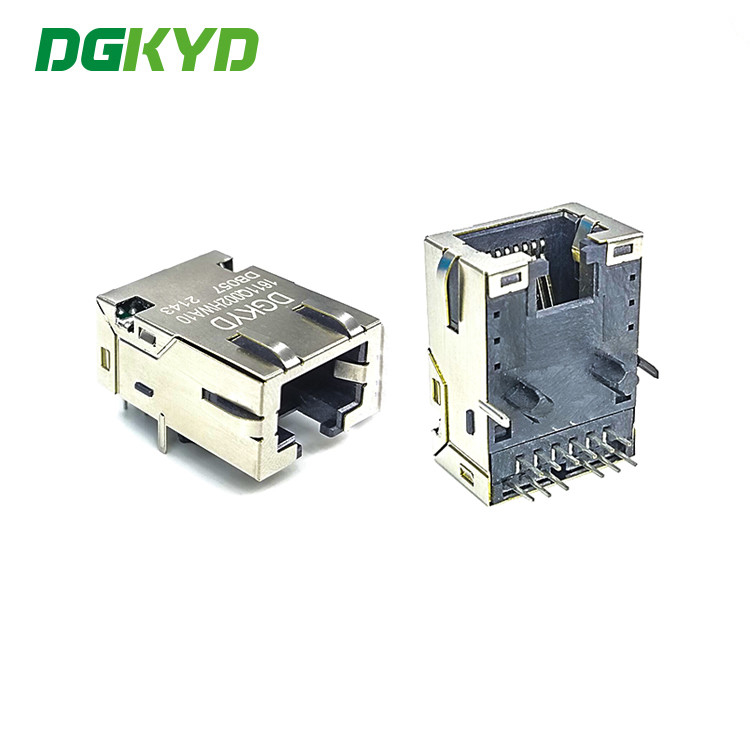

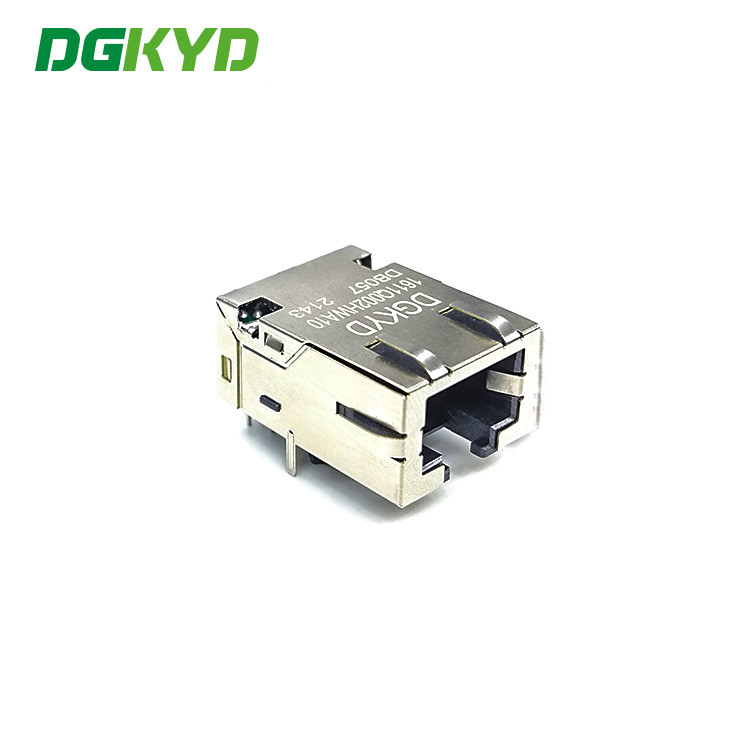

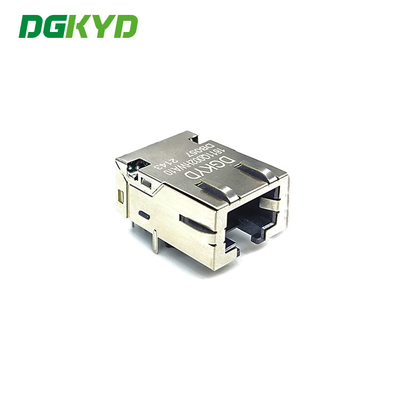

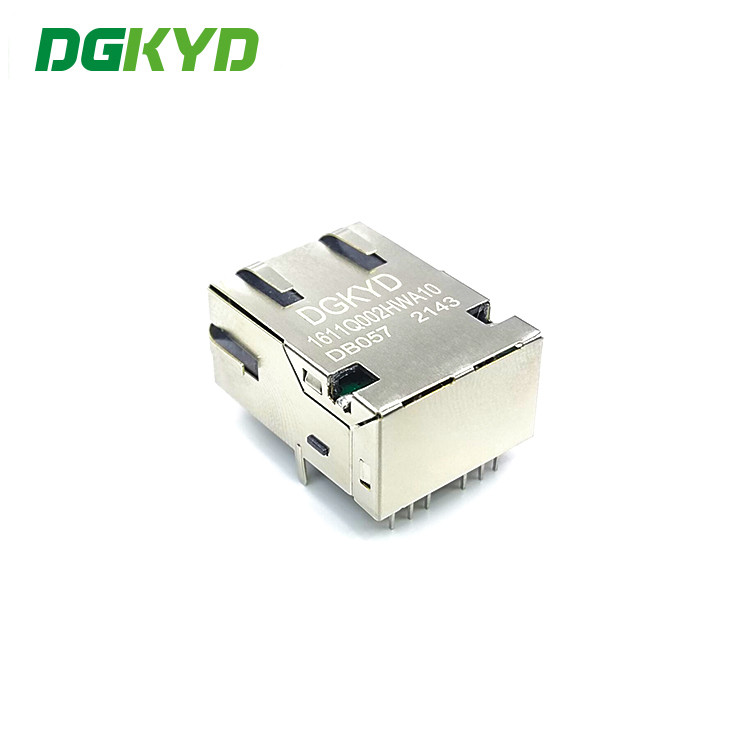

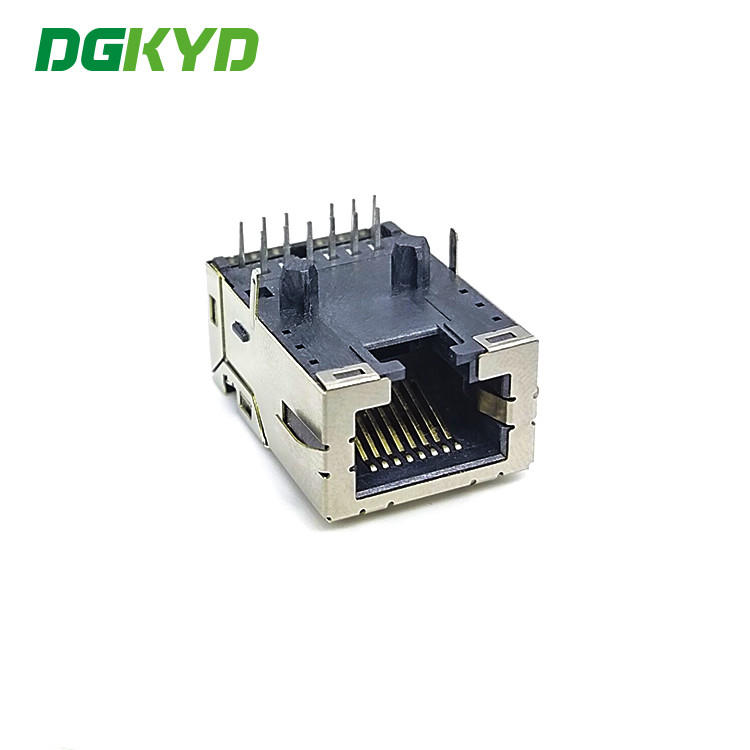

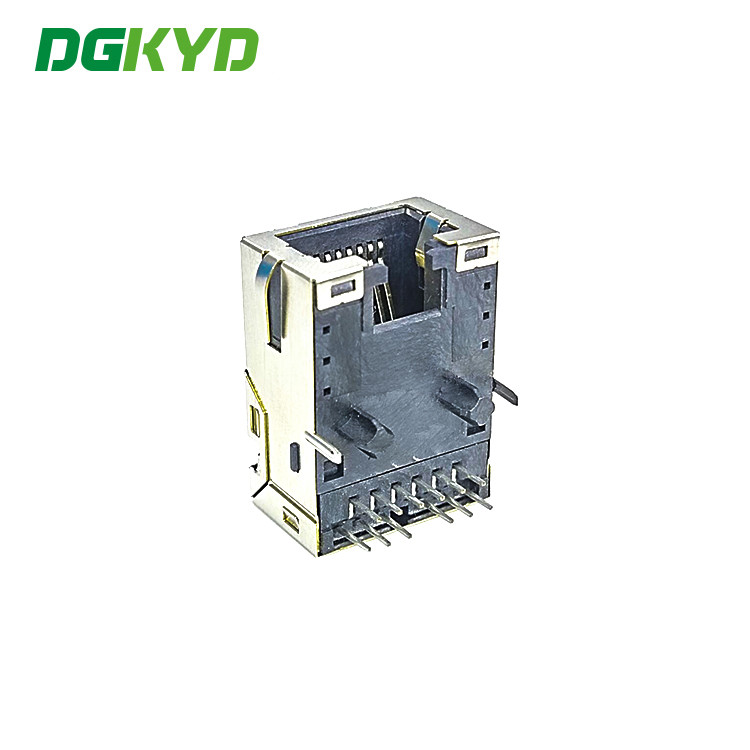

10G Network Filter 8P12C RJ45 Network Port Connector With Light
DGKYD1611Q002HWA10DB057(10G) 10G network filter RJ45 network port connector 8P12C with light shielding connector DIP
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 0 ℃ - 70 ℃,
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
• Through Continuous Improvements In Quality, Delivery And Service
• Delivery Time:2-3 Weeks After Orders
• Provide New Design For Customer Requirements
Parameters
| Part Number |
DGKYD1611Q002HWA10DB057(10G) |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Down |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 12 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
