Dip Mount Multi Port Tab Up 12 Pin RJ45 Network Connector 8 Core 10g Transformer

Minimum Order Quantity : Negotiation Price : please contact us to get the latest price
Packaging Details : 416pcs / carton Delivery Time : 7-14 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100k PCS / day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD414Q204DB2A2DC1057(10G)

Detail Information

Product Type: RJ45 Encapsulation Method: 1X4 In-line Package
PCB Mount Style: DIP Shape: Rectangle
Plastic Housing Material: Black PA66 Number Of Pins: 12
Number Of Cores: 8 Dimension (mm): 58.24* 32.76* 12.4
Gold Plating On Contact Pins: 50U Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃ Shield: Brass
Highlight:

12 pin RJ45 Network Connector

,

8 Core RJ45 Network Connector

,

8 core rj45 modular socket

Product Description

Dip mount multi port tab up RJ45 network connector 10g transformer





Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



Parameters

Part Number DGKYD414Q204DB2A2DC1057(10G) Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  1X4 Ports Number of Positions  12
Jack Configuration 1X4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings



Dip Mount Multi Port Tab Up 12 Pin RJ45 Network Connector 8 Core 10g Transformer 0Dip Mount Multi Port Tab Up 12 Pin RJ45 Network Connector 8 Core 10g Transformer 1Dip Mount Multi Port Tab Up 12 Pin RJ45 Network Connector 8 Core 10g Transformer 2







Pictures

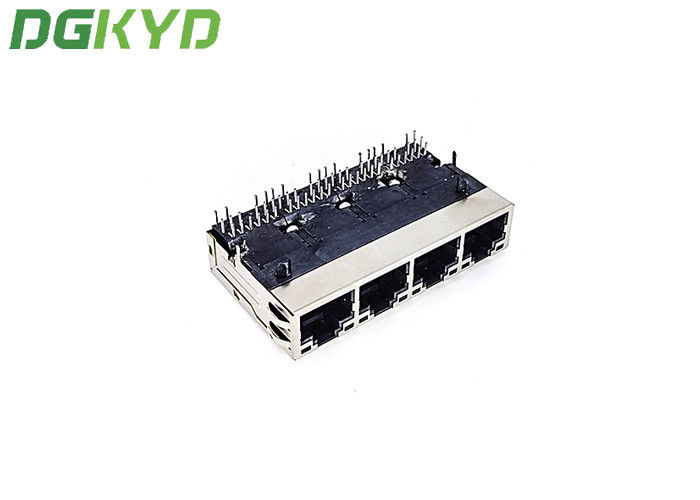

Dip Mount Multi Port Tab Up 12 Pin RJ45 Network Connector 8 Core 10g Transformer 3
