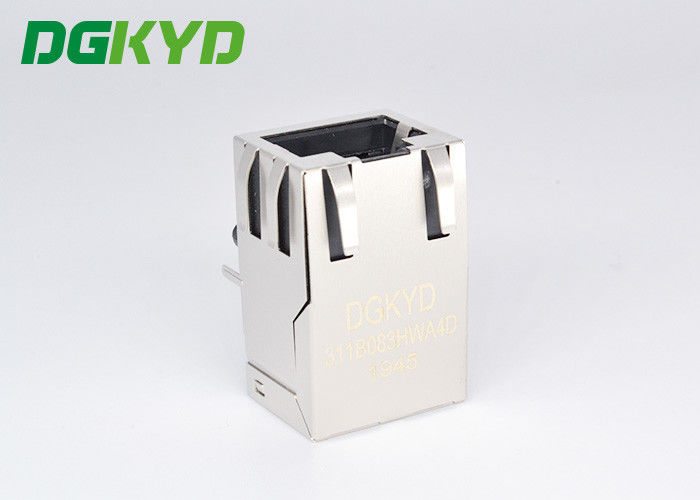

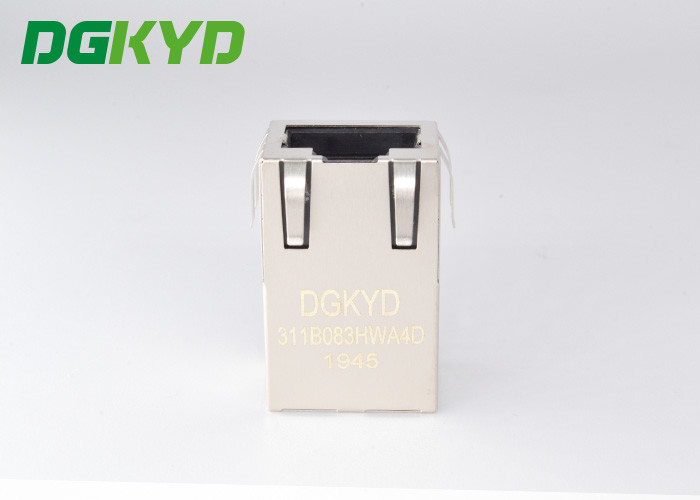

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD311B083HWA4D

Detail Information

Modular Jack & Plug Interface Type: RJ45 Single Port Port Configuration: Single
Connector Style: Jack Housing Material: PBT Black
Shielded: None Plating: Glod Plating 6u/15u/30u/50u
Status Indicator: G/Y LED Latch Orientation: TOP
High Light:

100 Megabytes rj45 smt connector

,

Plug rj45 pcb connector

Product Description

Single port 90 degree side plug 100 megabytes integrated filter rj45 connector



Applications:

  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

Parameters



Part Number DGKYD311B083HWA4DN Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option Without LED
LED Color N / A Panel Stops Without Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 100M BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  8
Jack Configuration 1X 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6U Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawings

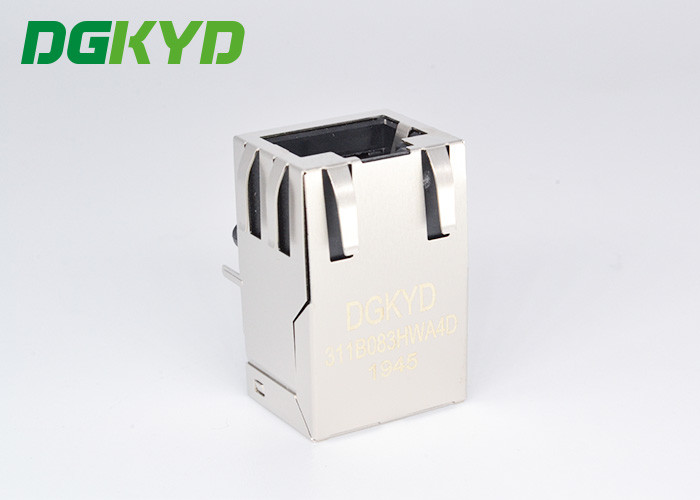

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree 0

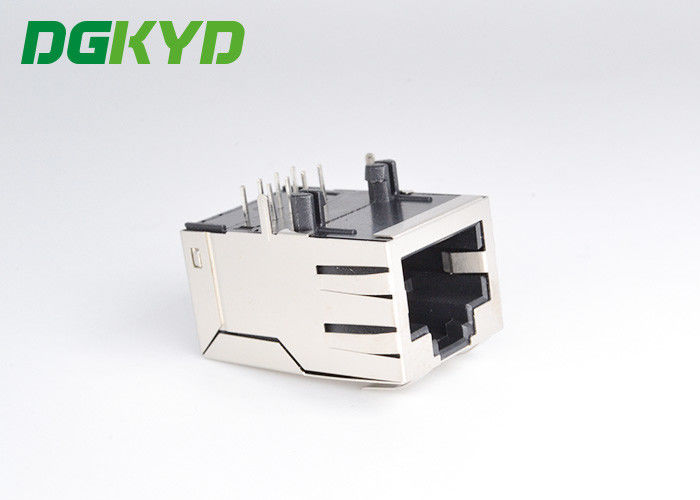

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree 1

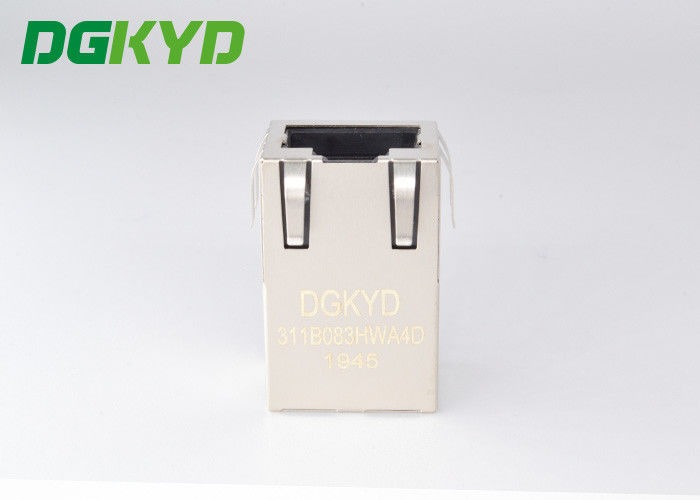

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree 2



Pictures

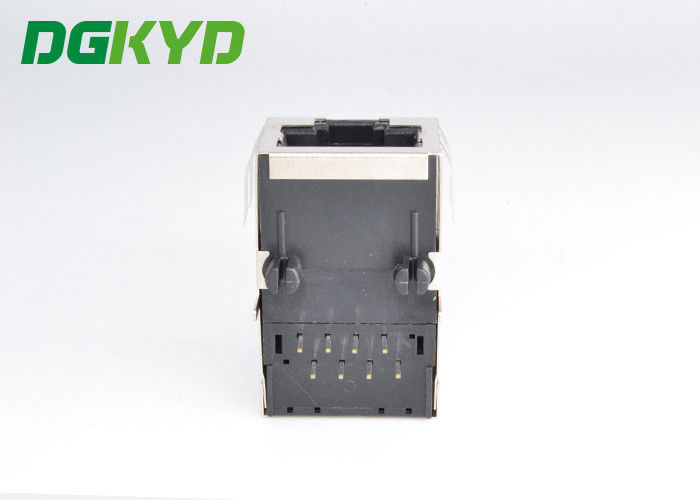

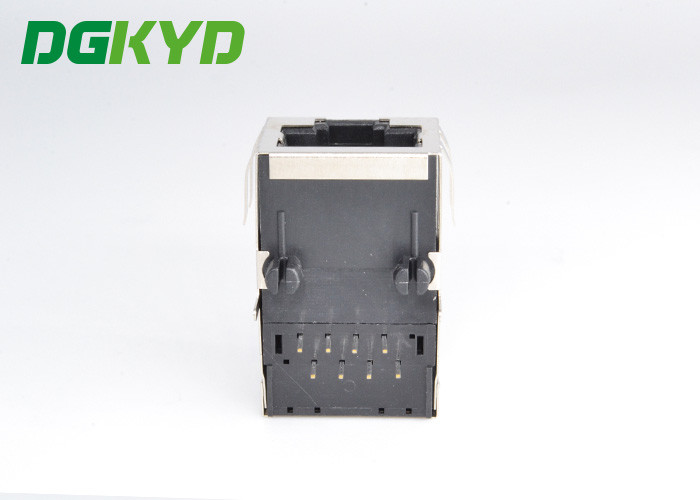

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree 3
