All Plastic Head Socket With Lamp Cells 8p8c Low Profile RJ45

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Tray in Carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD60S1188JB1A6DY1

Detail Information

Product Name: Low Profile RJ45 Number Of Ports: Single Port
Clamp Direction: TAB-UP LED Option: Without LED
Product Standard: Meets IEEE 802.3 Specification. Filter: Without Filter
High Light:

poe rj45 jack

,

rj45 connector jack

Product Description

RJ45 of cells 8p8c All-plastic head socket with lamp



Features and Benefits :



PCB jack,magnetic RJ45 connector 8P8C PCB connector

* Single port (1x1) tab-down RJ45 with internal magnetics.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.



Paramters



Part Number DGKYD60S1188JB1A6DY1 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without Filter LED Option With LED
LED Color L-Yellow / R-Green Panel Stops Without Panel Stops
Shielded Without metal shield Applies To  Printed Circuit Board
Port Configuration  Single Port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawing



All Plastic Head Socket With Lamp Cells 8p8c Low Profile RJ45 0

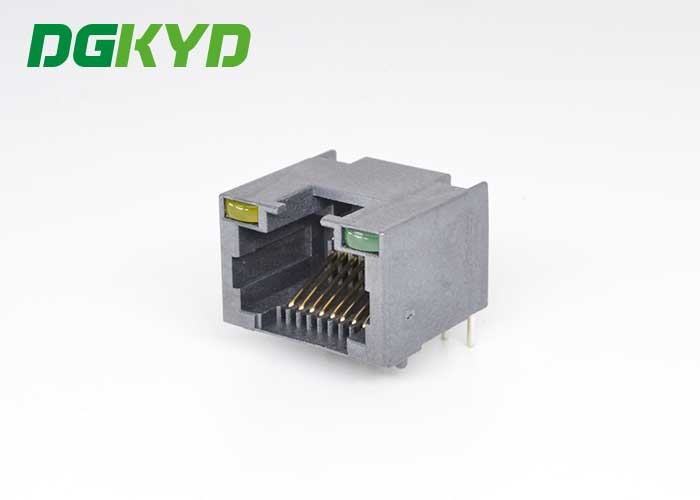

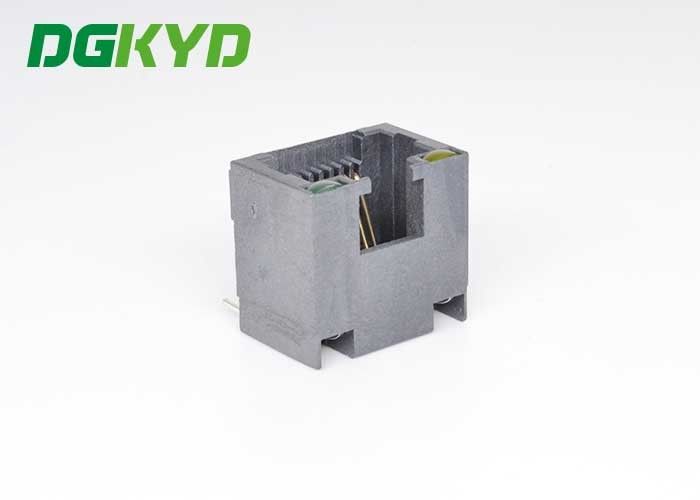

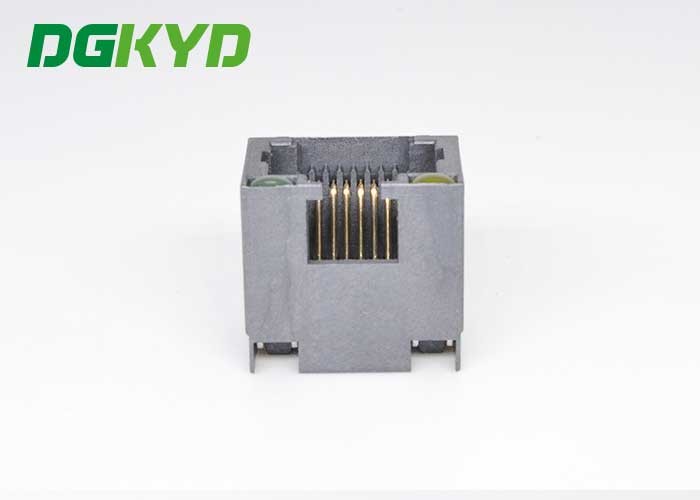

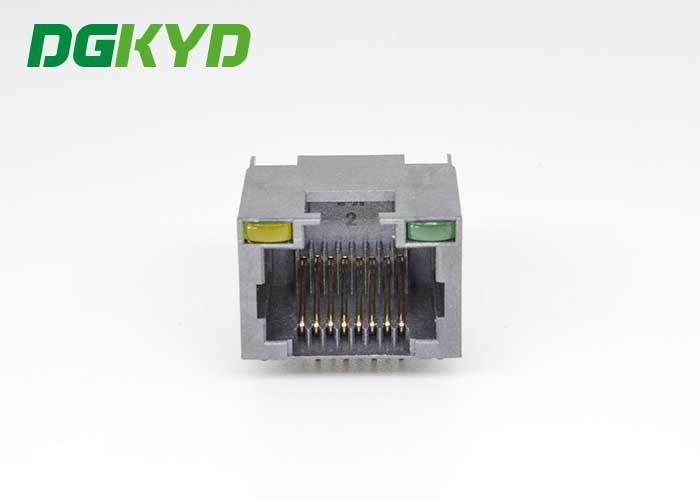

Pictures



All Plastic Head Socket With Lamp Cells 8p8c Low Profile RJ45 1
