21.3mm 1X1 Single Port shielded RJ45 Modular jack without transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921S457NL

Detail Information

Performance: Cat 3/5 Port: Single Port
Latch: Tab Down Shield: Yes
High Light:

cat6 shielded rj45

,

network port

,

Single Port shielded RJ45 jack

Product Description

21.3mm 1X1 Single Port RJ45 Modular jack without transformer and led, RJ45 scoket

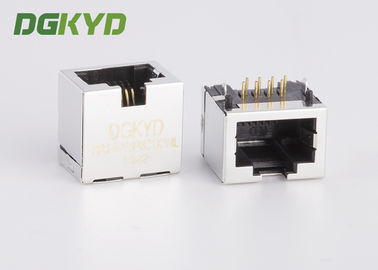

21.3mm 1X1 Single Port shielded RJ45 Modular jack without transformer 0

  • 1X1 Single port RJ45 Modular jack without transformer
  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant(GP)
  • Length:21.3mm(0.85inch)
  • LEDS:NO
  • EMI fingers:NO

Specifications:

  1. Current Rating:1.5aps
  2. Voltage Rang:125vac
  3. Insulation Resistance:500Ωmin
  4. Contact Resistance:30Ωmax
  5. Withstanding Voltage:AC 1000V RMS 50Hz or 60Hz 1min

Applications:

•  RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.

For example:

21.3mm 1X1 Single Port shielded RJ45 Modular jack without transformer 1
