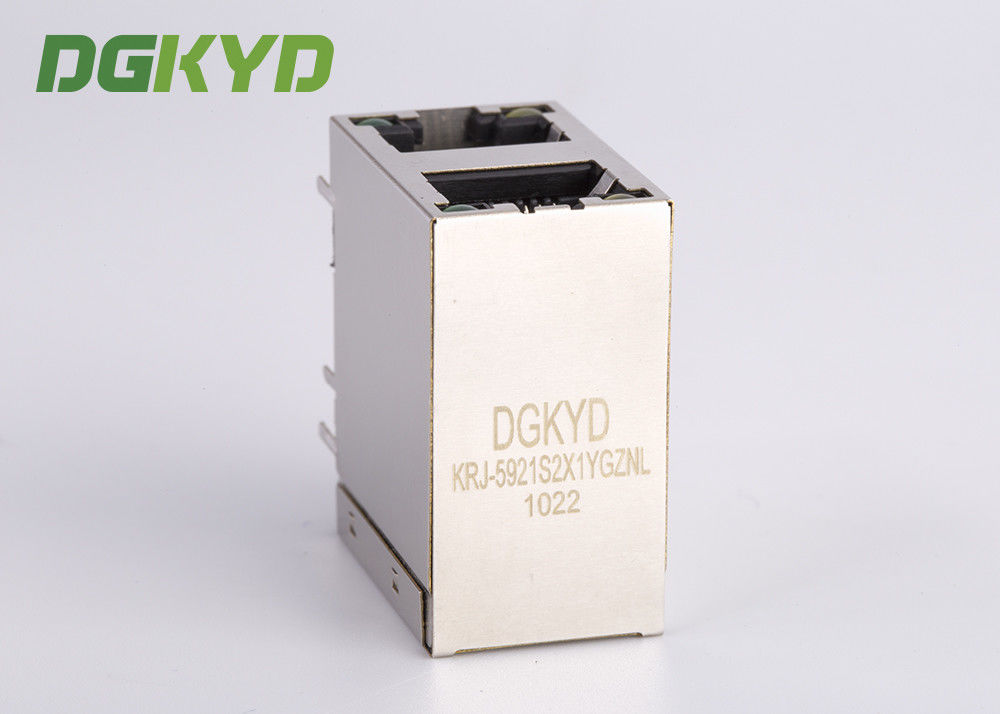

Cat 3 Stack RJ45 2 X 1 Dual Port Rj45 jack Network Rj45 Connectors

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S2X1YGZNL

Detail Information
SPEED:	10/100	LED:	Y/G
EMI TABS:	YES	PORT OF CONFIG:	STACK
NUMBER OF PORTS:	2X1	HEIGHT PROFILE:	STANDARD
CIRCUIT FEATURES:	N/A
Highlight:	dual port rj45 connector , dual rj45 connector , cat 3 dual port rj45 connector

Product Description

Stack RJ45 2x1 with LEDs with out transformer
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85
SPEED	Cat 3
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	NO
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NO
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
NUMBER OF POSITIONS	8
NUMBER OF PORTS	2X1
NUMBER OF CONTACTS	8
LED OPTION	Y/G
LATCH	UP & DOWN
KEYED	NO
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

• CAT3 to CAT5E connectors are available in shielded and unshielded configurations to support Gigabit Ethernet
• Jack dimensions meet FCC requirements when plated with 50 microinches of gold

Cat 3 Stack RJ45 2 X 1 Dual Port Rj45 jack Network Rj45 Connectors

dual port rj45 connector

dual rj45 connector

cat 3 dual port rj45 connector

Stack RJ45 2x1 with LEDs with out transformer
