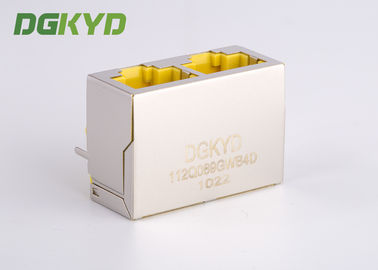

Gigabit Ethernet Modular Jack 2 Port RJ45 Connector 2x1 Offset St / Jk With Leds
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD112Q089GWB4D |
|
Detail Information |
|||
| Feature: | High Performance With Magnetics And LED | RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP |
|---|---|---|---|
| Application: | Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices | Gender: | Female |
| Product Name: | RJ45 Keystone Jack | Transformer: | With Transformer |
| Highlight: | dual port rj45 connector,dual rj45 connector,CAT 6 Ganged 2 Port RJ45 |
||
Product Description
| Part Number | DGKYD112Q089GWB4D | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | down |
| Filter | With internal filter | LED Option | Without LED |
| LED Color | N/A | Panel Stops | Without Panel Stops |
| Shielded | shielded | Applies To | Printed Circuit Board |
| Performance Speed | 100 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | 2 port | Number of Positions | 8 |
| Jack Configuration | 1 x 2 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
► Product Drawing
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
