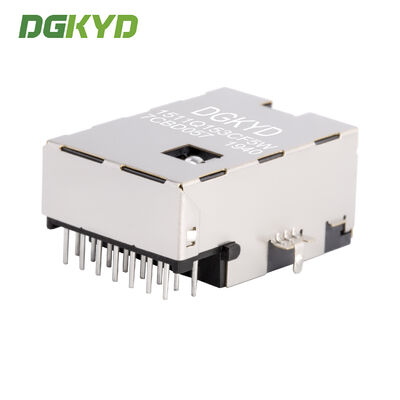

Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD1511Q153CF5W7CBD057
Document:	DGKYD1511Q153CF5W7CBD057.pdf

Detail Information
Product Name:	Very Low Profile RJ45 Connector	Performance:	1000BASE-TX
LED:	Green/Orange-Yellow	Port:	SIngle Ports
Mount Style:	DIP	Shield:	Phosphor Copper Nickel Plating
OEM/ODM:	Yes	Number Of Positions/Contacts:	8p11c (RJ45, Ethernet)
Gold Plating On Contact Pins:	6U	Storage Temperature:	-40°C~+85°C
Operating Temperature:	-40°C~+85°C
Highlight:	Gigabit Integrated Transformer RJ45 Connector , Very Low Profile RJ45 Jack , Gold Plating 6U RJ45 Ethernet Connector

Product Description

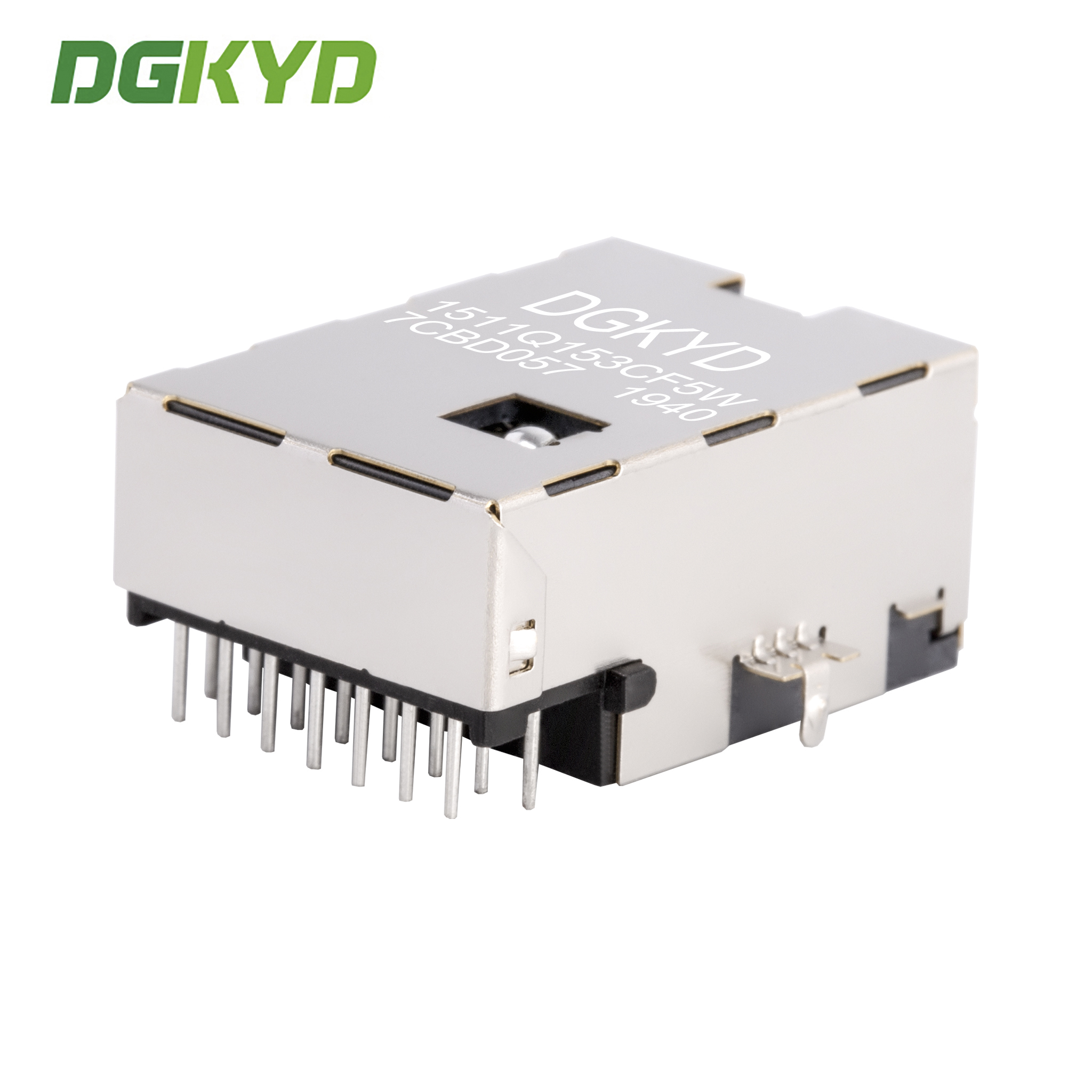

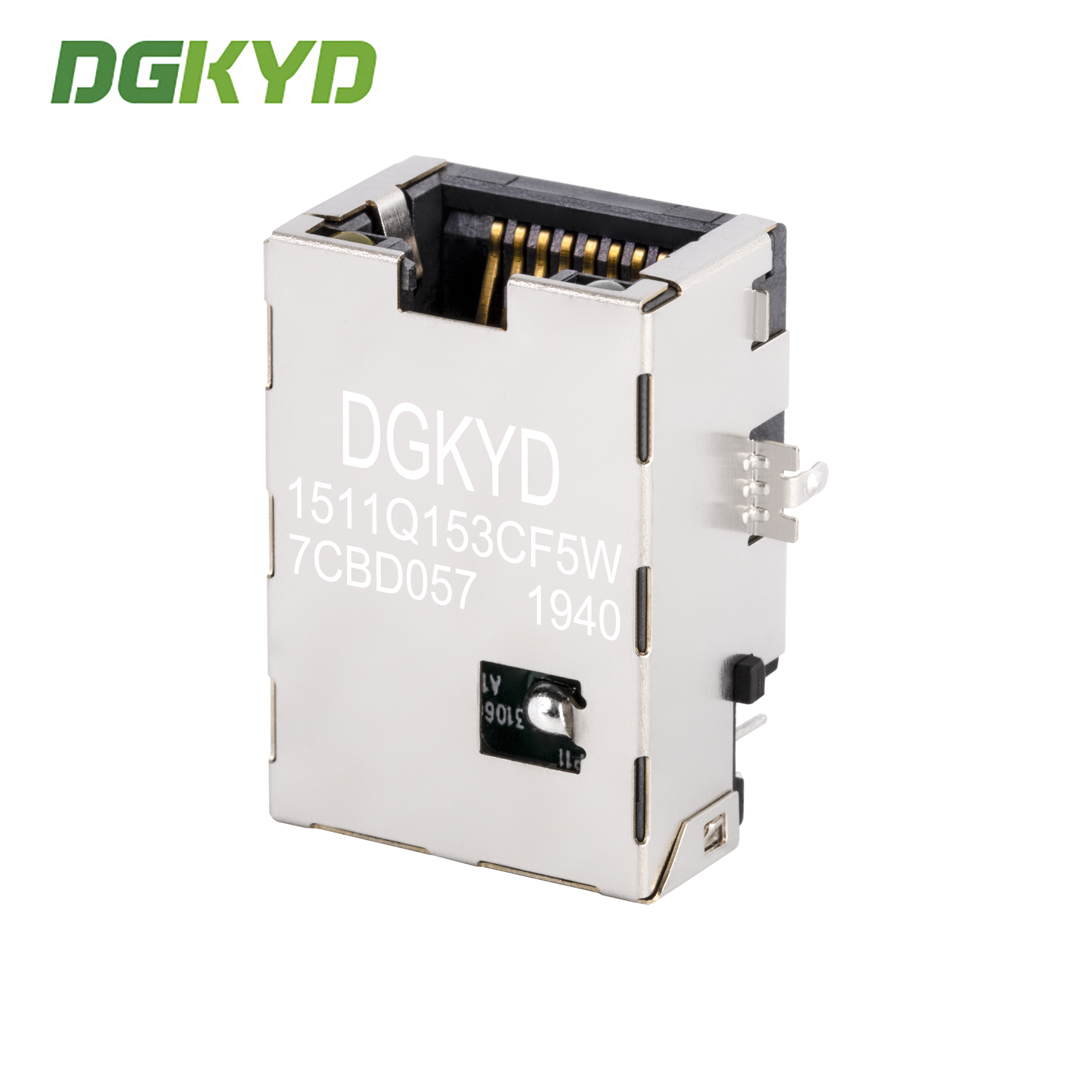

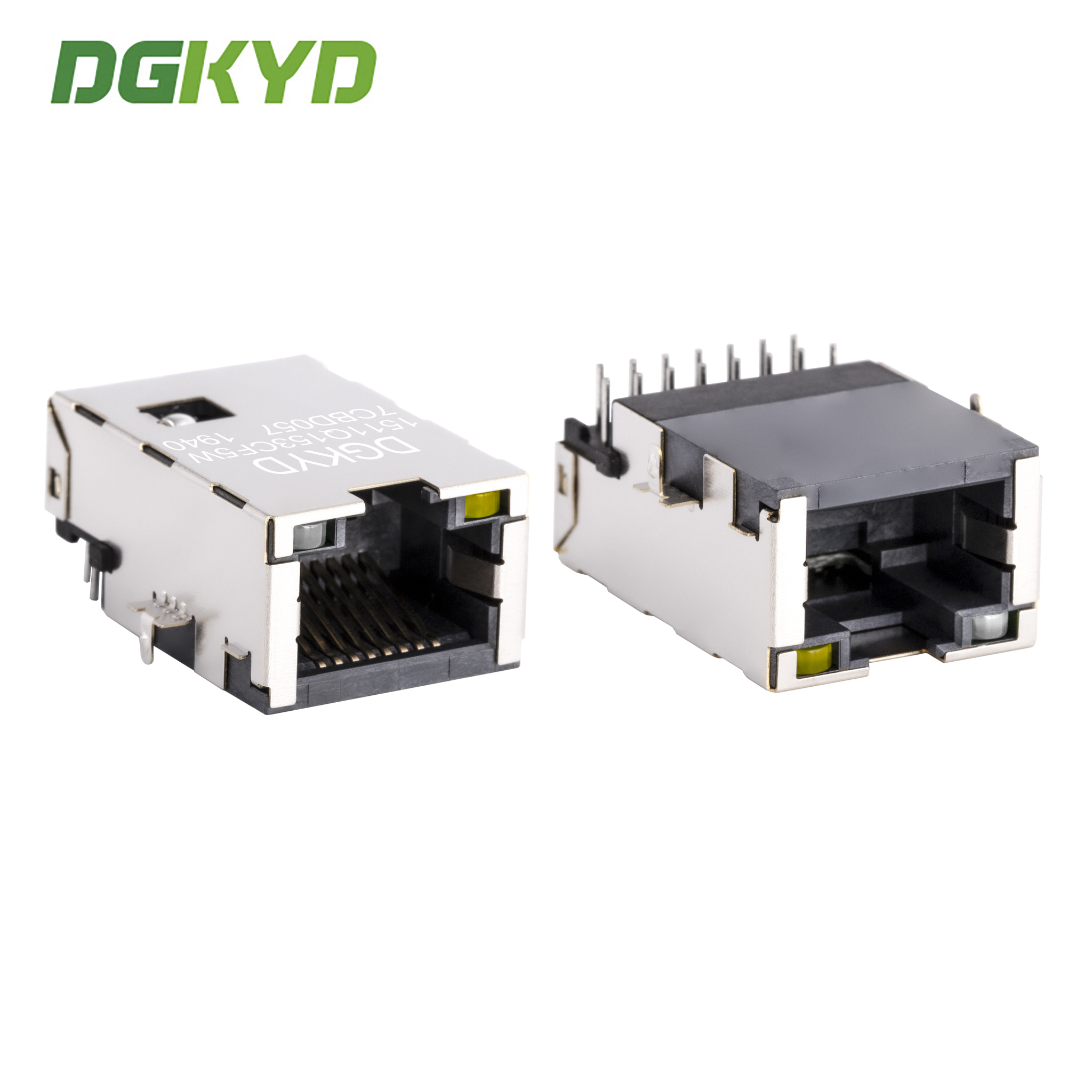

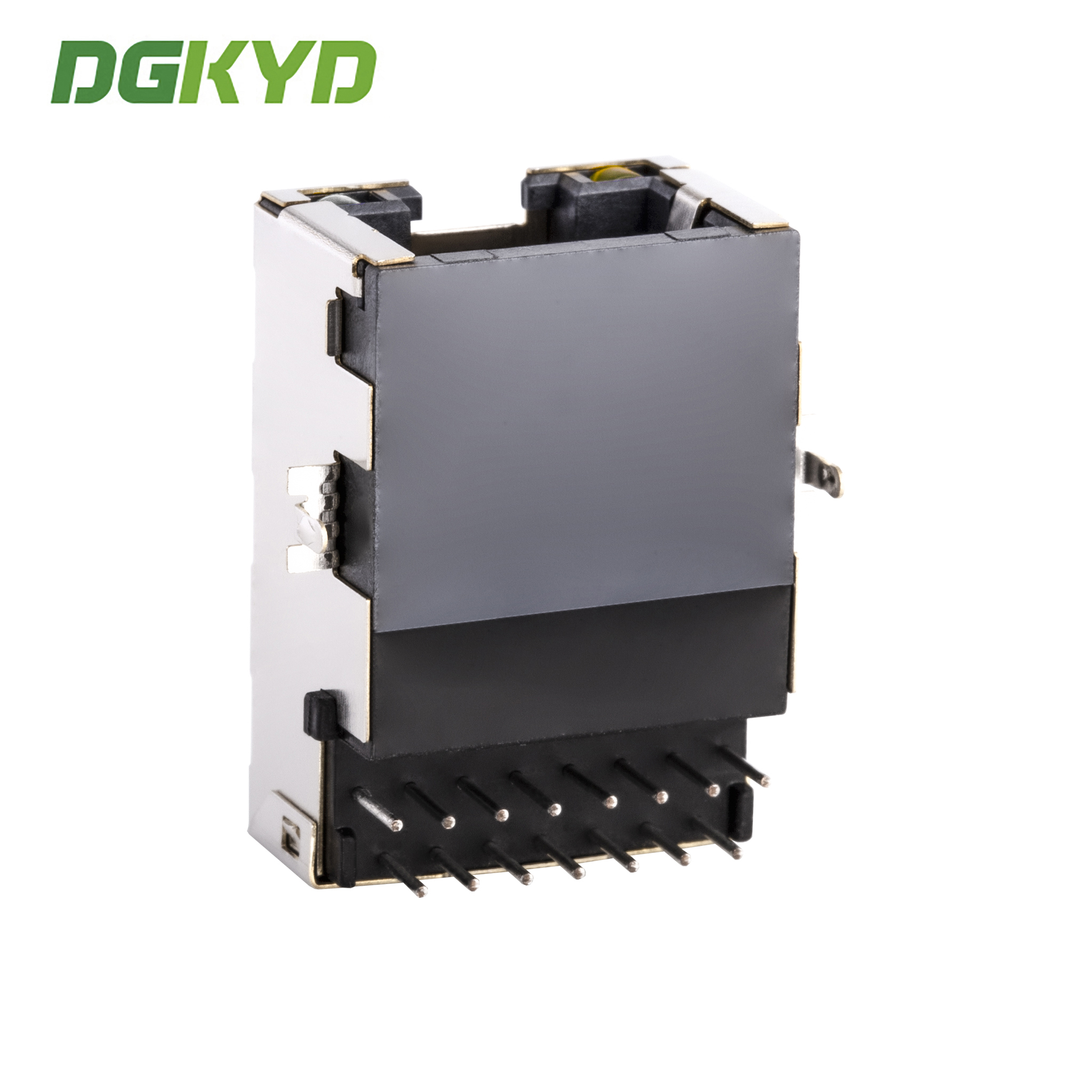

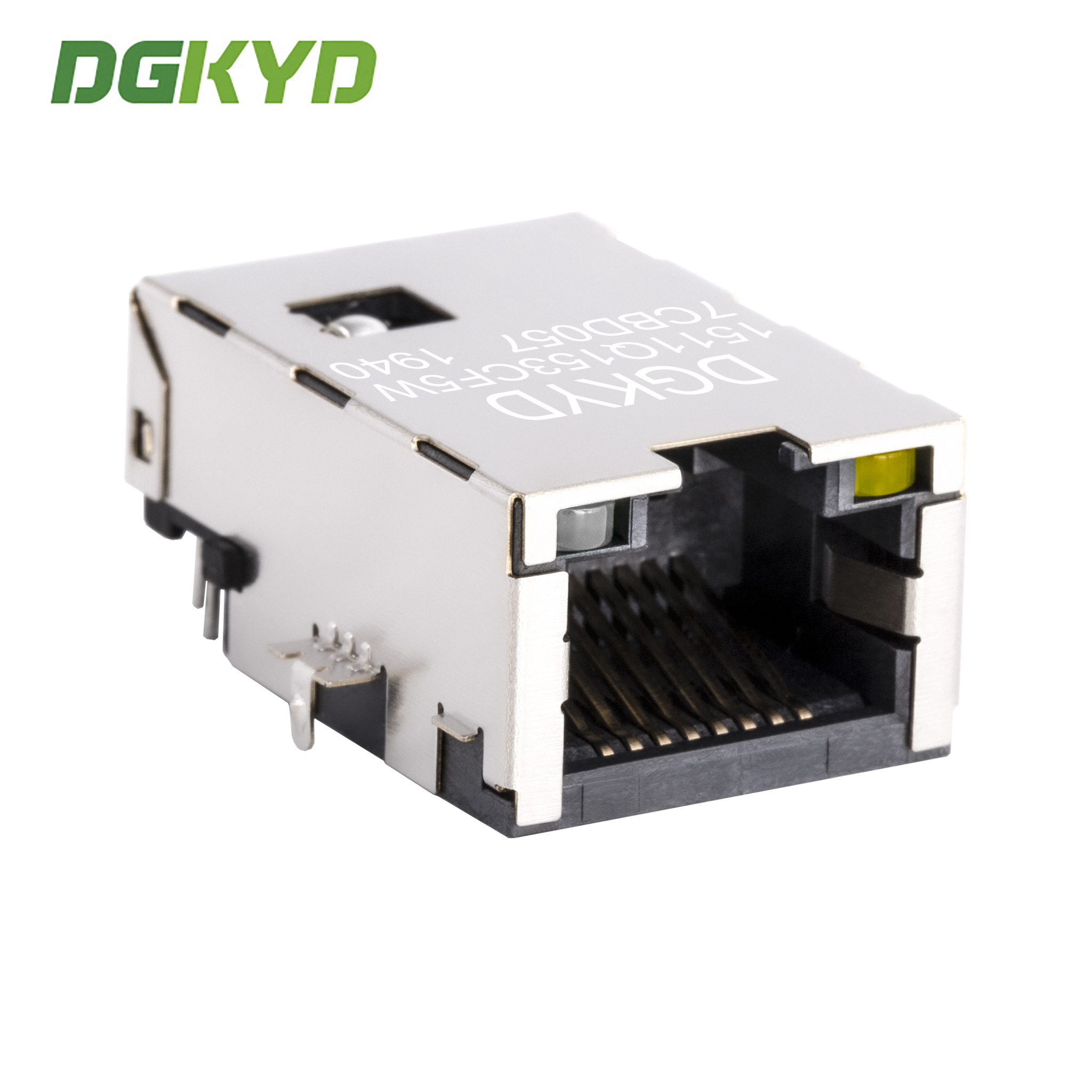

RJ45 Ethernet Socket Sinking Board Gigabit Integrated Transformer DGKYD1511Q153CF5W7CBD057

RJ45 Ethernet socket sinking board gigabit integrated transformer DGKYD1511Q153CF5W7CBD057

Product Documentation

Product Parameters

Part Number	DGKYD1511Q153CF5W7CBD057	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	11
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

Technical Specifications

Interface type: RJ45 connector
Application: 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics
Working frequency: High frequency
Characteristic: Filtering, anti-interference
Working temperature: -40°C to 85°C
Storage temperature: -40°C to 85°C
Lead free soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: On time delivery, around two weeks
Customization options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet industry standards, appearance and mechanical properties meet dimensional specifications, and environmental protection standards. Your satisfaction is the purpose of our service!
