100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter

Minimum Order Quantity :	Negotiation	Price :	Please contact us to get the latest price.
Packaging Details :	540Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD21B002AB2A4D068
Document:	DGKYD21B002AB2A4D068.pdf

Detail Information
Product Type:	RJ45	Encapsulation Method:	Double In-line Package
PCB Mount Style:	DIP	Shape:	Rectangle
Shield:	Phosphor Copper Nickel Plating	Plastic Housing Material:	Black PBT
Number Of Pins:	10	Number Of Cores:	8
Dimension (mm):	17.21 28.5* 25.5	Gold Plating On Contact Pins:	6U
Operating Temperature:	- 40 ℃ ~ 85 ℃	Storage Temperature:	- 40 ℃ ~ 85 ℃

Product Description

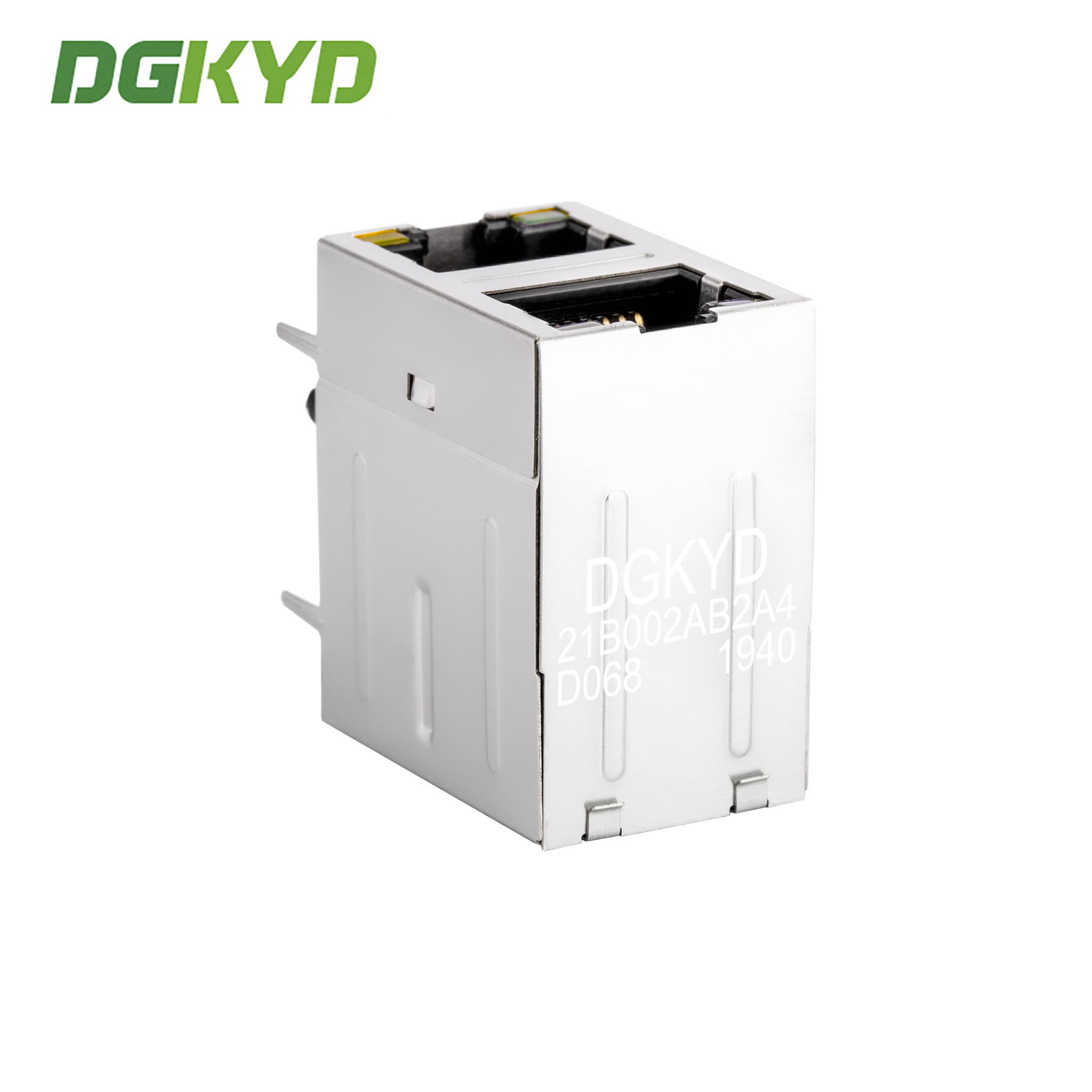

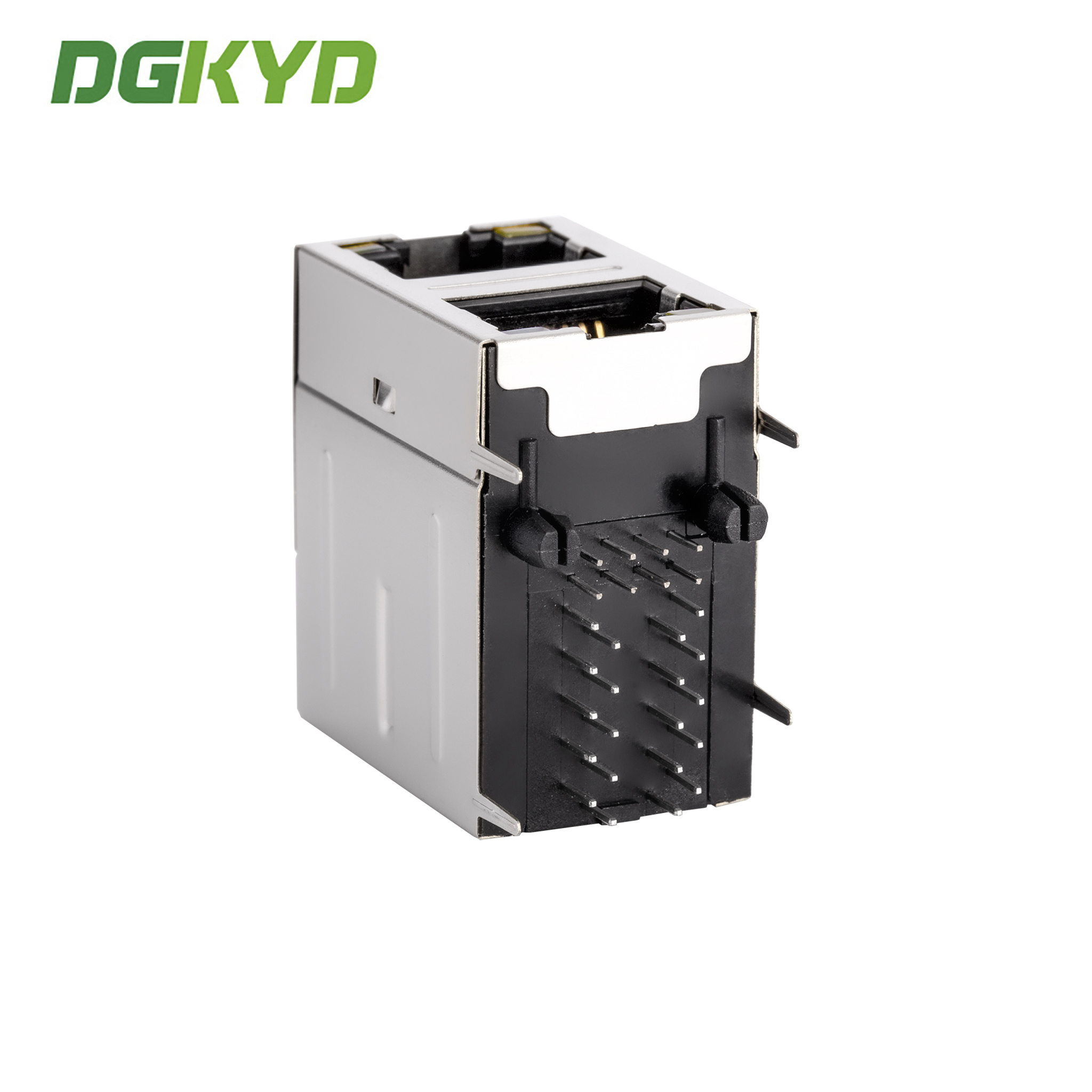

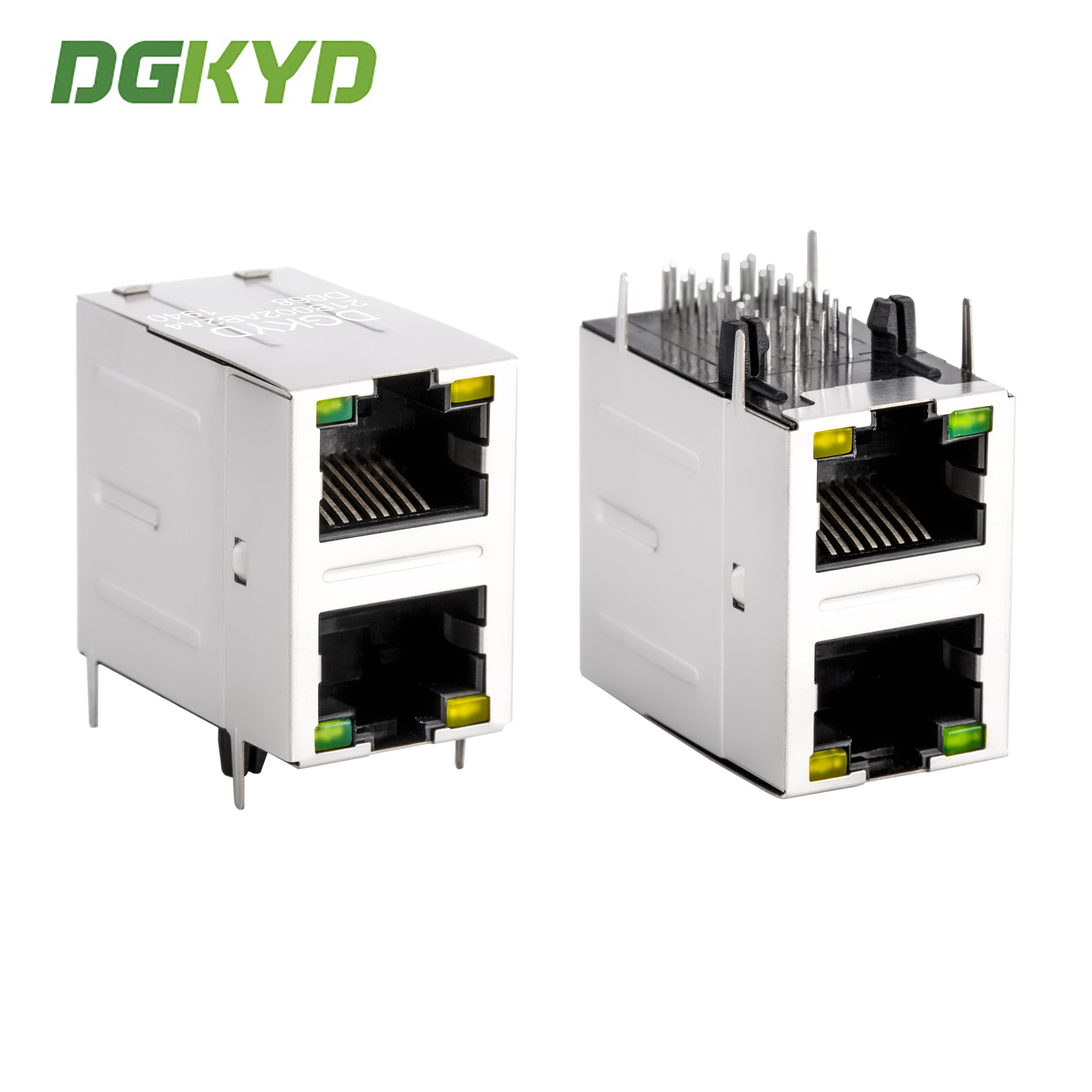

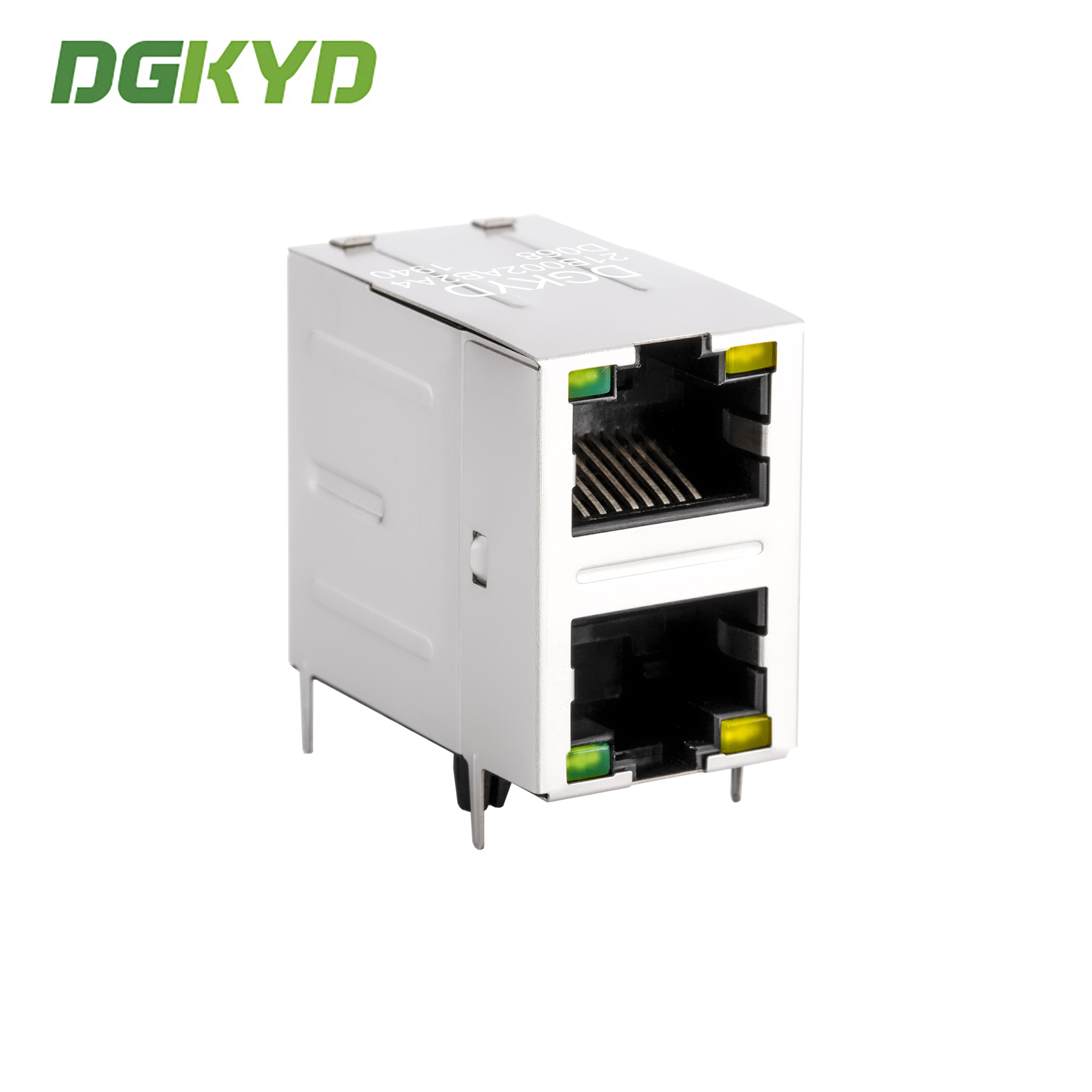

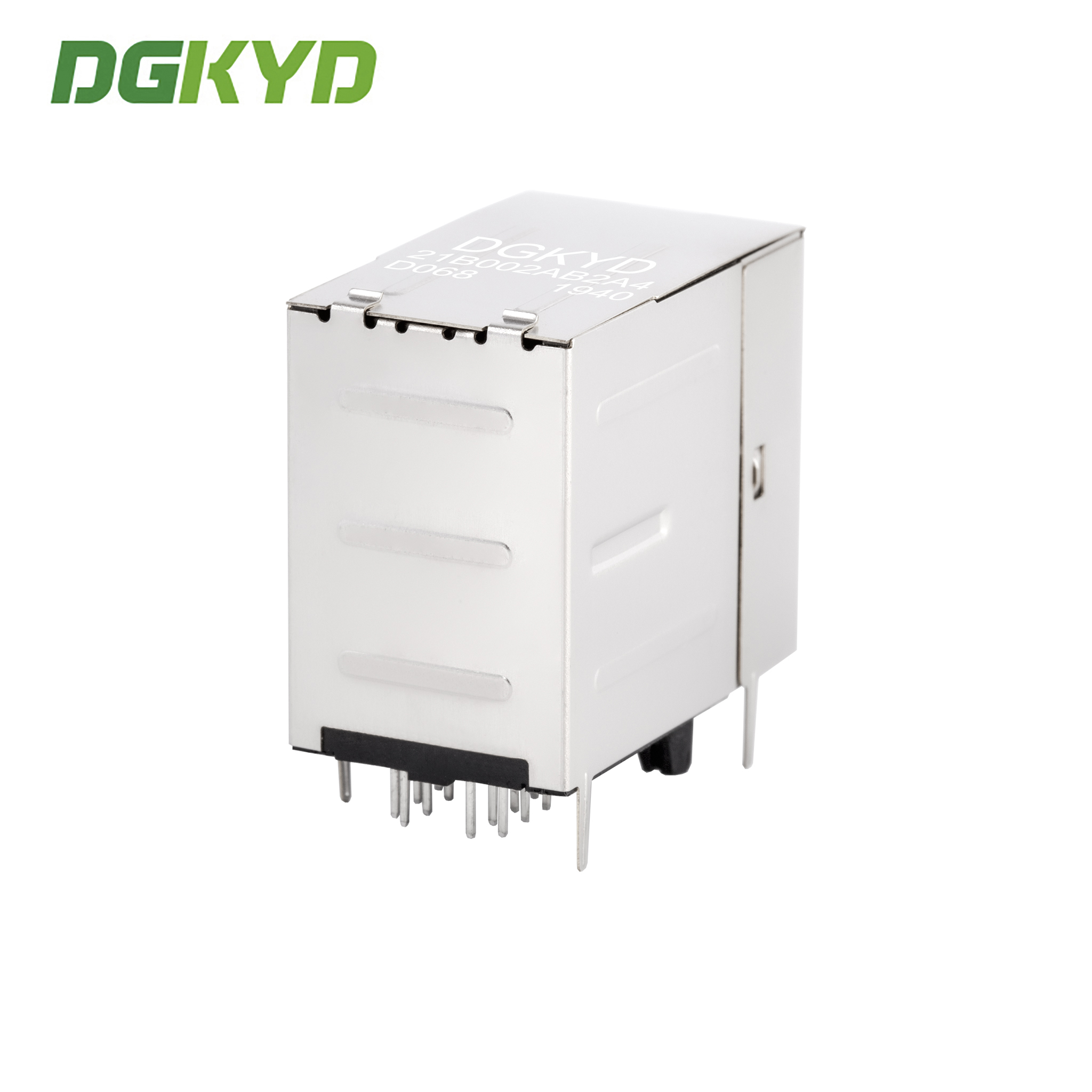

100 Base - T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter Installed DGKYD21B002AB2A4D068

Part Number: DGKYD21B002AB2A4D068

Technical Parameters

Parameter	Value
Part Number	DGKYD21B002AB2A4D068
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP/DOWN
Filter	With Filter
LED Option	With LED
LED Color	Green-Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	2X1 Port
Number of Positions	10
Jack Configuration	2X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
