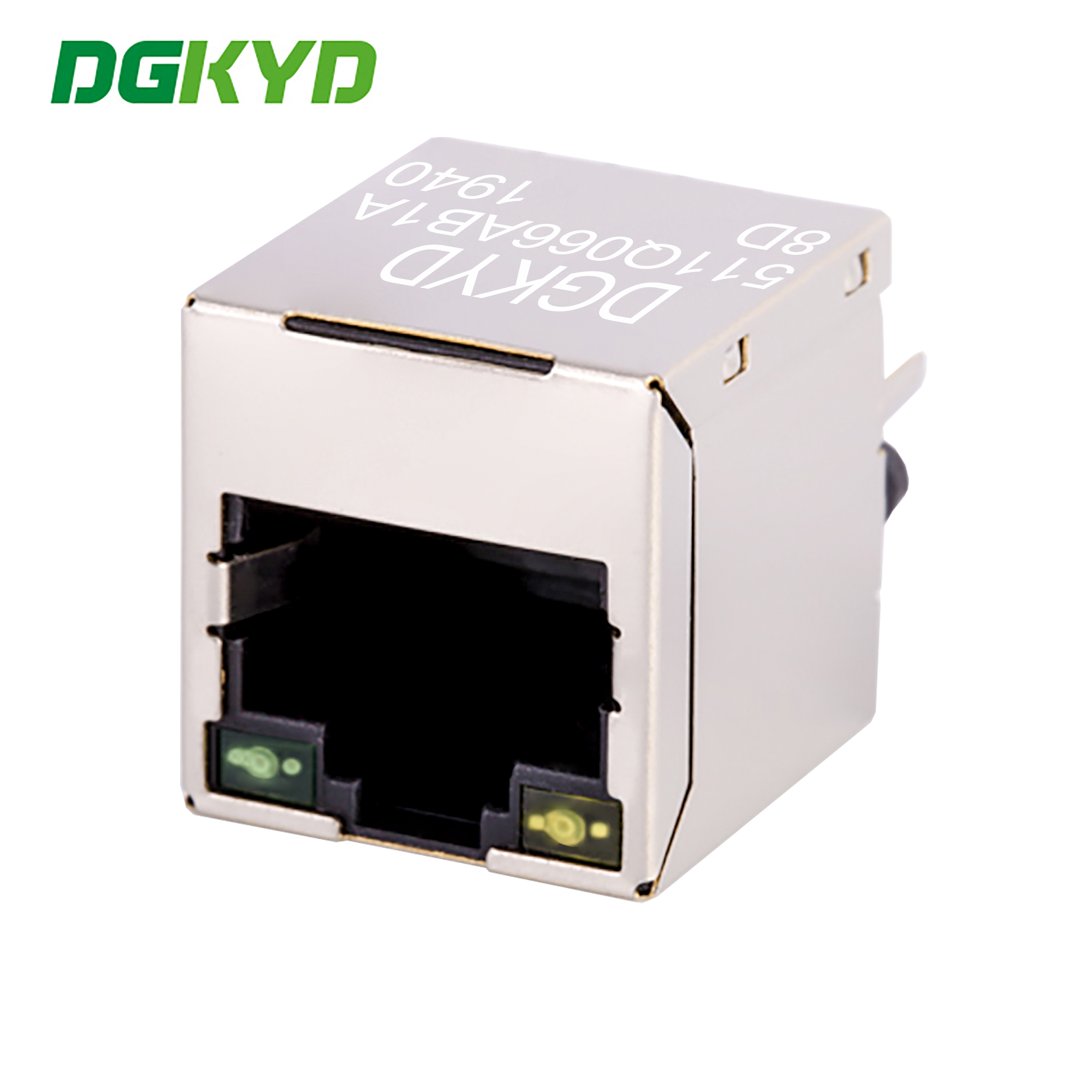

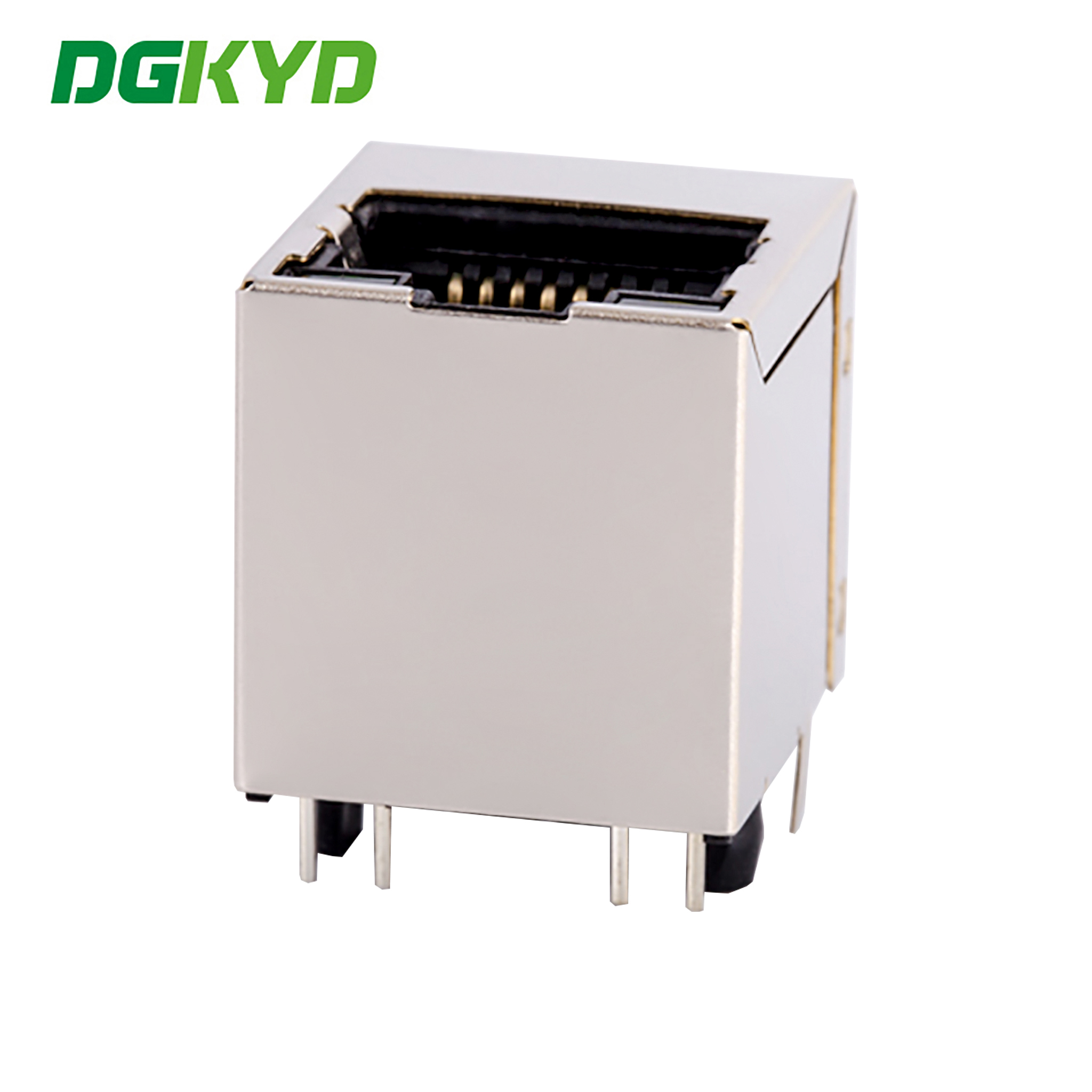

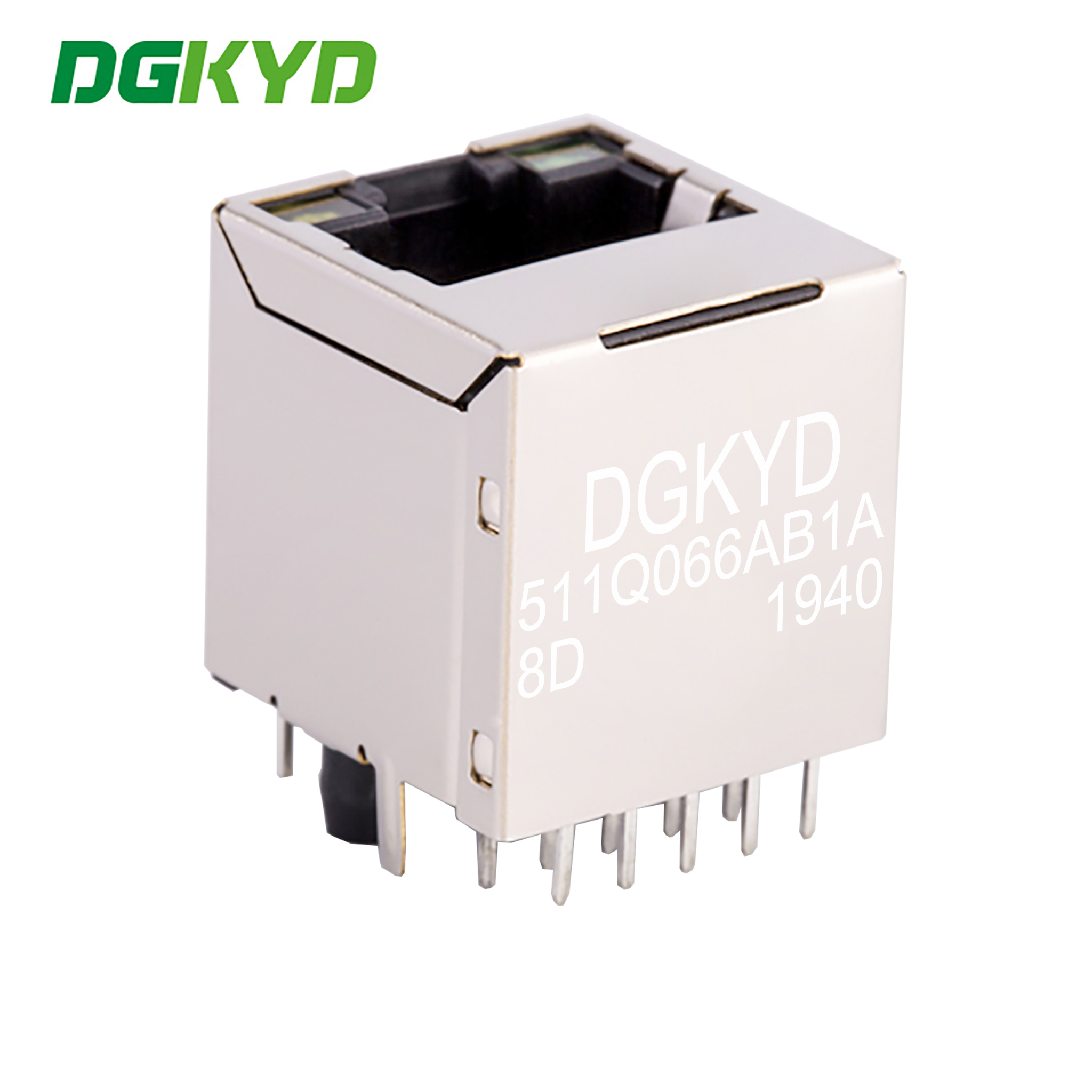

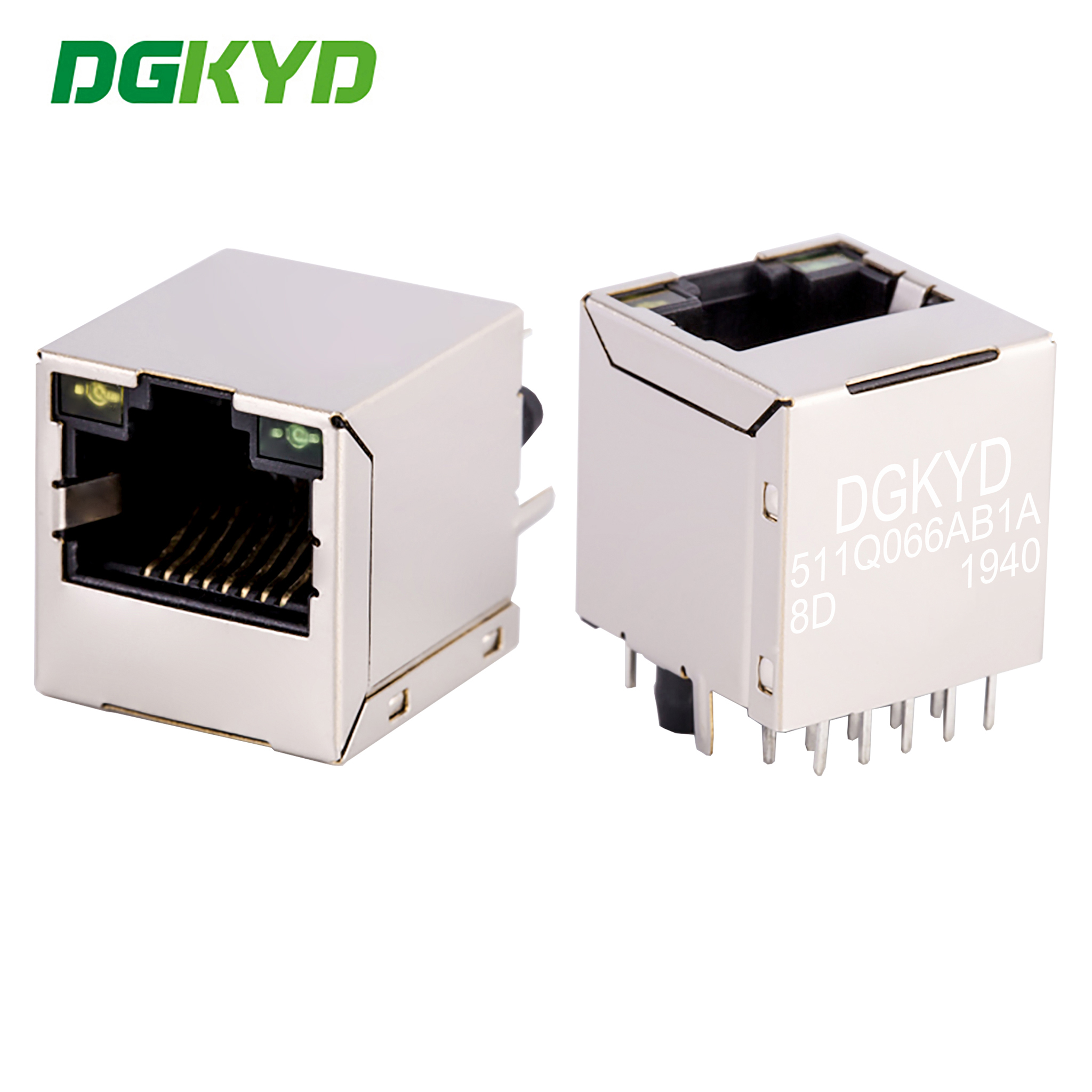

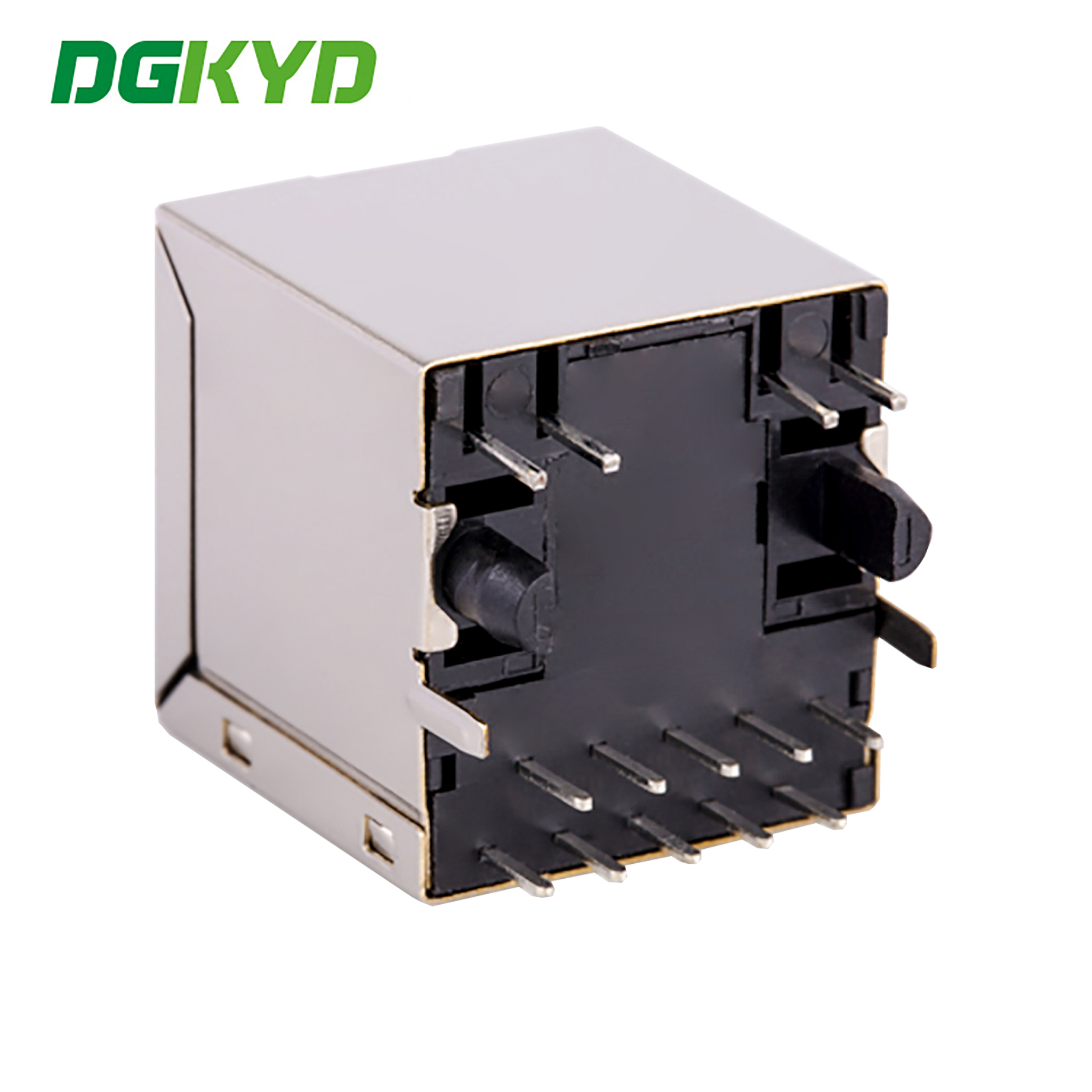

Vertical RJ45 connector 180 degree straight insertion gigabit integrated filter DGKYD511Q066AB1A8D

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD511Q066AB1A8D

Detail Information
Modular Jack & Plug Interface Type:	RJ45 With Transformer	Connector Style:	RJ45 Female Jack
Shielded:	Metal Shielded	Speed:	Cat6
Status Indicator:	LED	Latch Orientation:	Top Entry
Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)	OEM/ODM:	Yes
Gold Plating On Contact Pins:	6U	Storage Temperature:	-40°C~+85°C
Operating Temperature:	-40°C~+85°C
Highlight:	vertical RJ45 connector with integrated filter , 180 degree straight insertion RJ45 connector , gigabit vertical RJ45 connector

Product Description

Vertical RJ45 Connector 180 Degree Straight Insertion Gigabit Integrated Filter DGKYD511Q066AB1A8D

Product Attributes

Attribute	Value
Modular Jack & Plug Interface Type	RJ45 with transformer
Connector Style	RJ45 female Jack
Shielded	Metal Shielded
Speed	cat6
Status Indicator	LED
Latch Orientation	Top Entry
Number of Positions/Contacts	8p10c (RJ45, Ethernet)
OEM/ODM	Yes
Gold plating on contact pins	6U
Storage temperature	-40°C~+85°C
Operating temperature	-40°C~+85°C

Product Description

Drawing: Vertical RJ45 connector 180 degree straight insertion gigabit integrated filter DGKYD511Q066AB1A8D

Parameters

Part Number	DGKYD511Q066AB1A8D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
