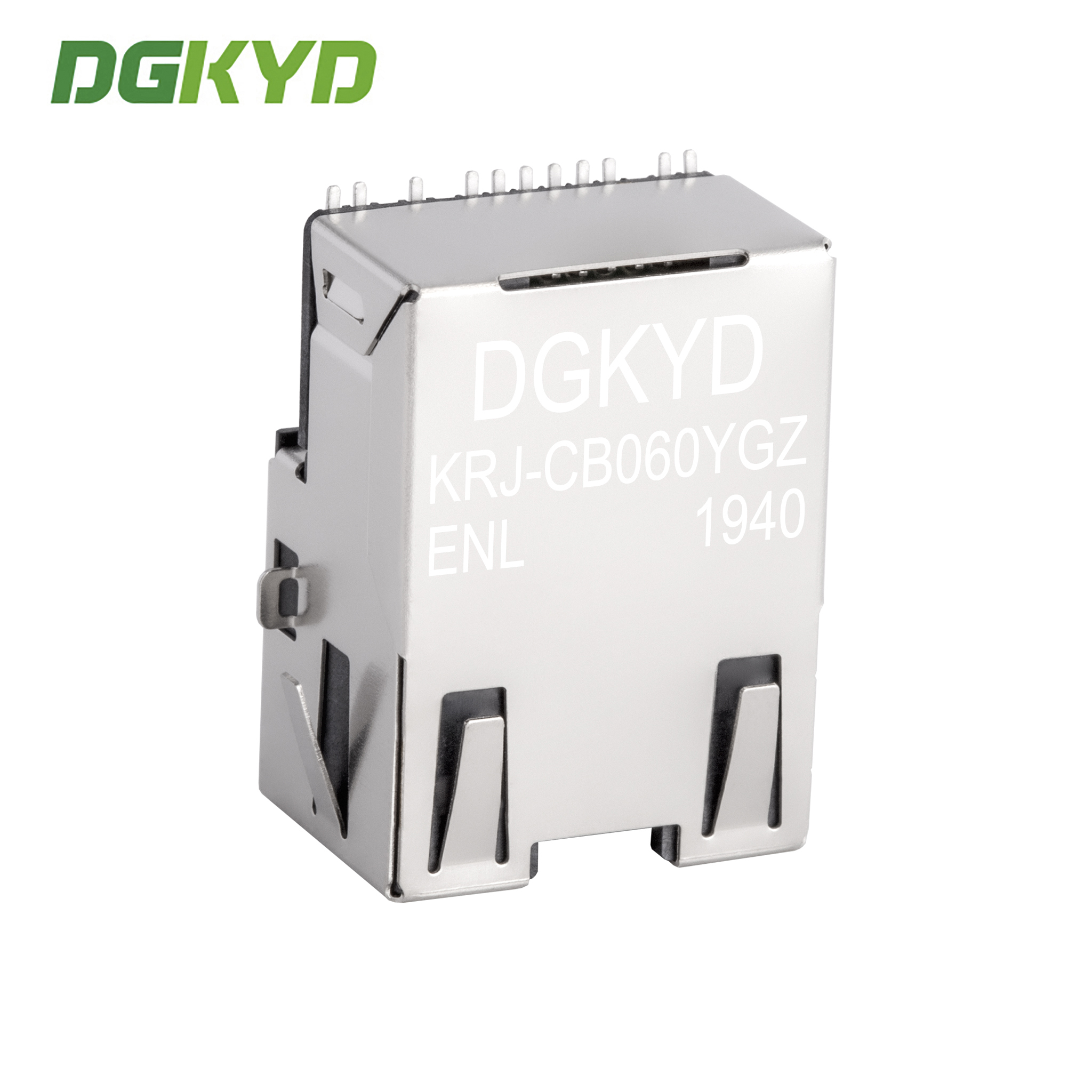

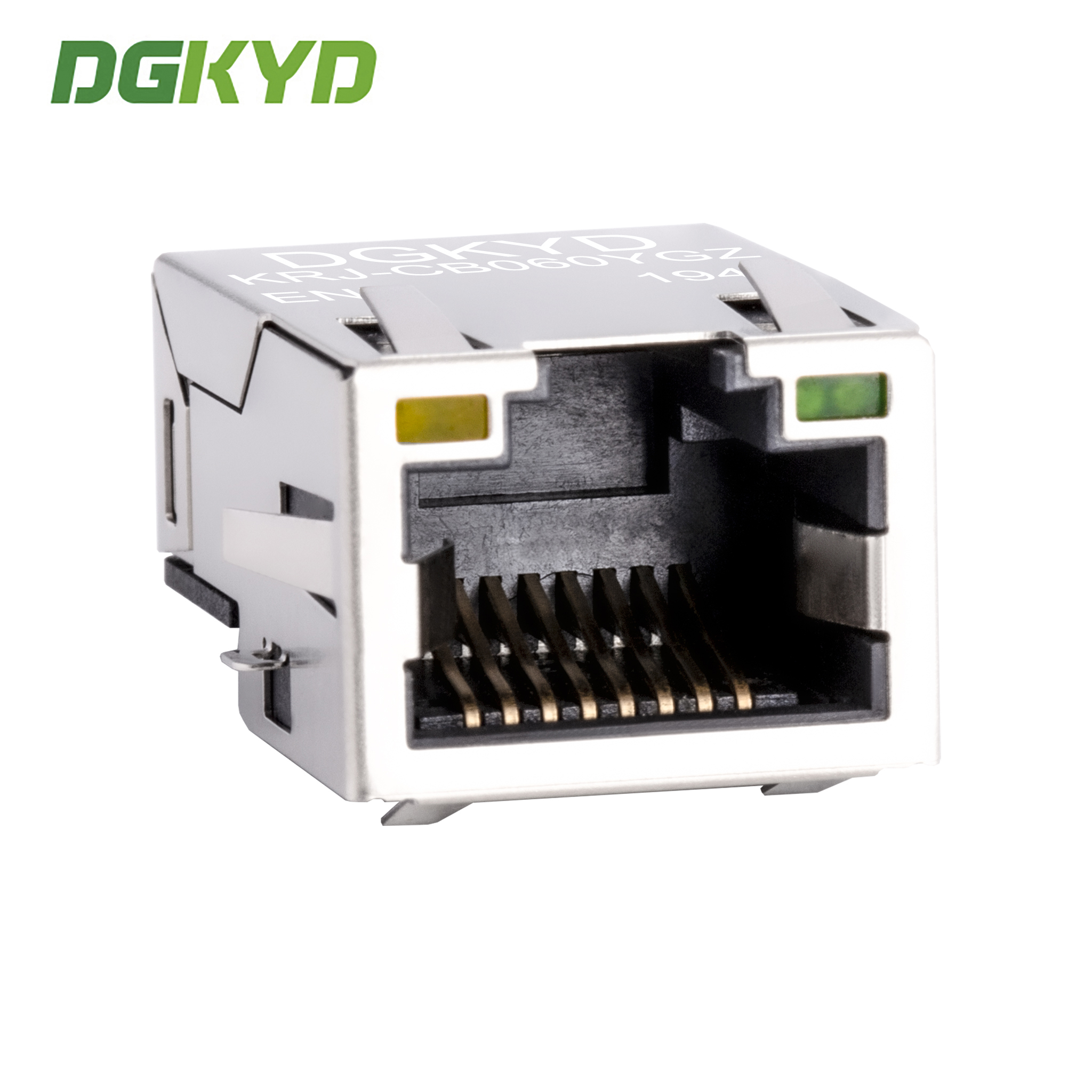

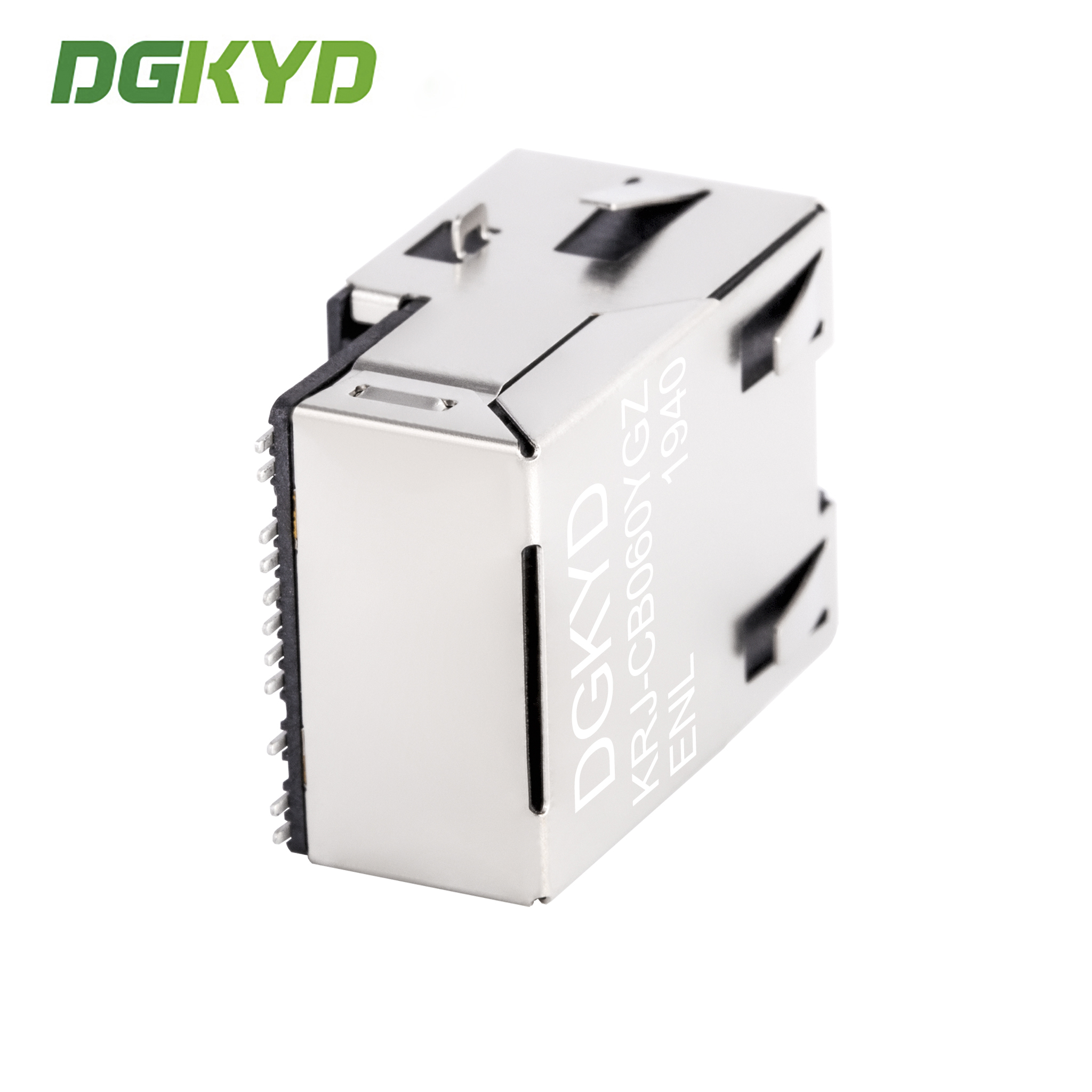

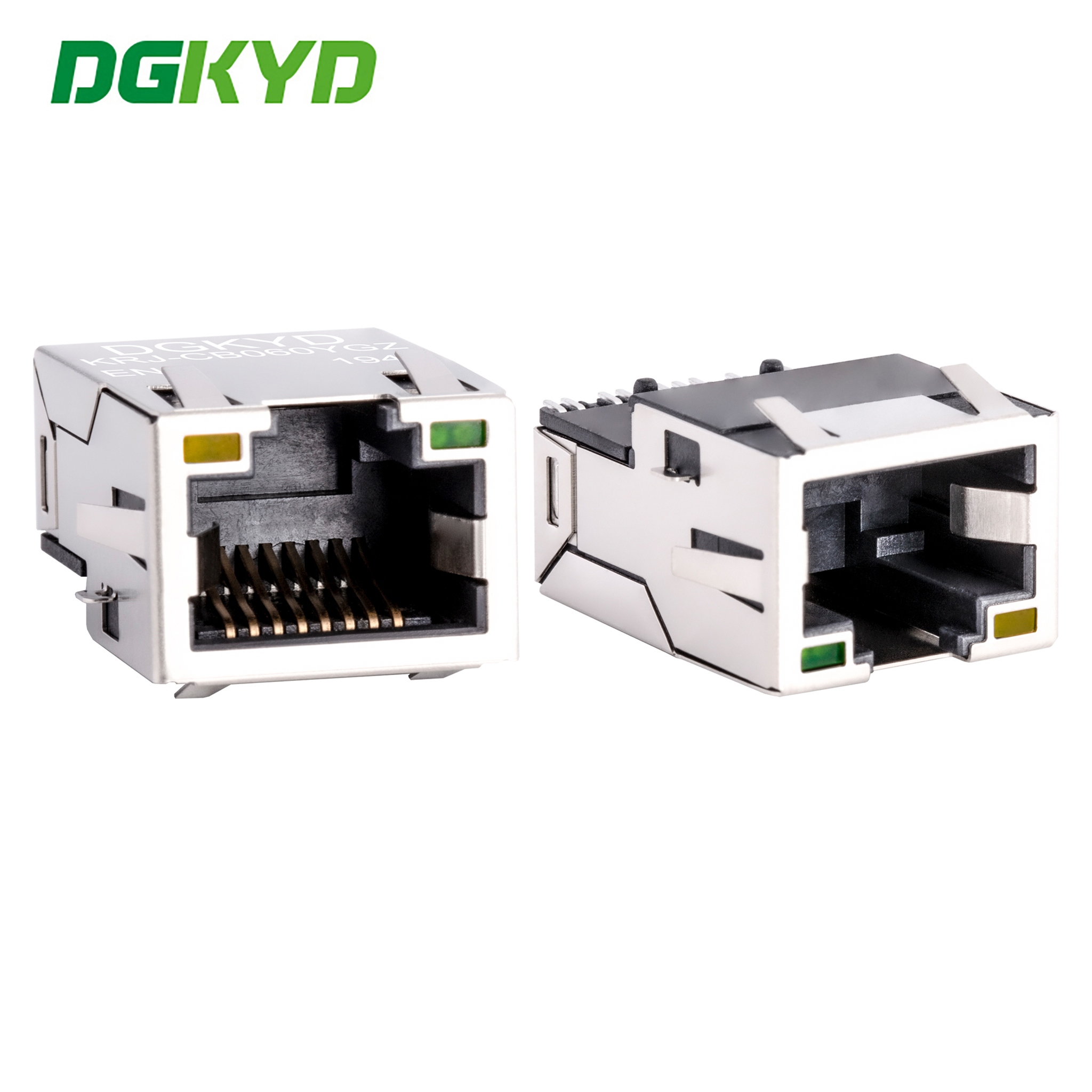

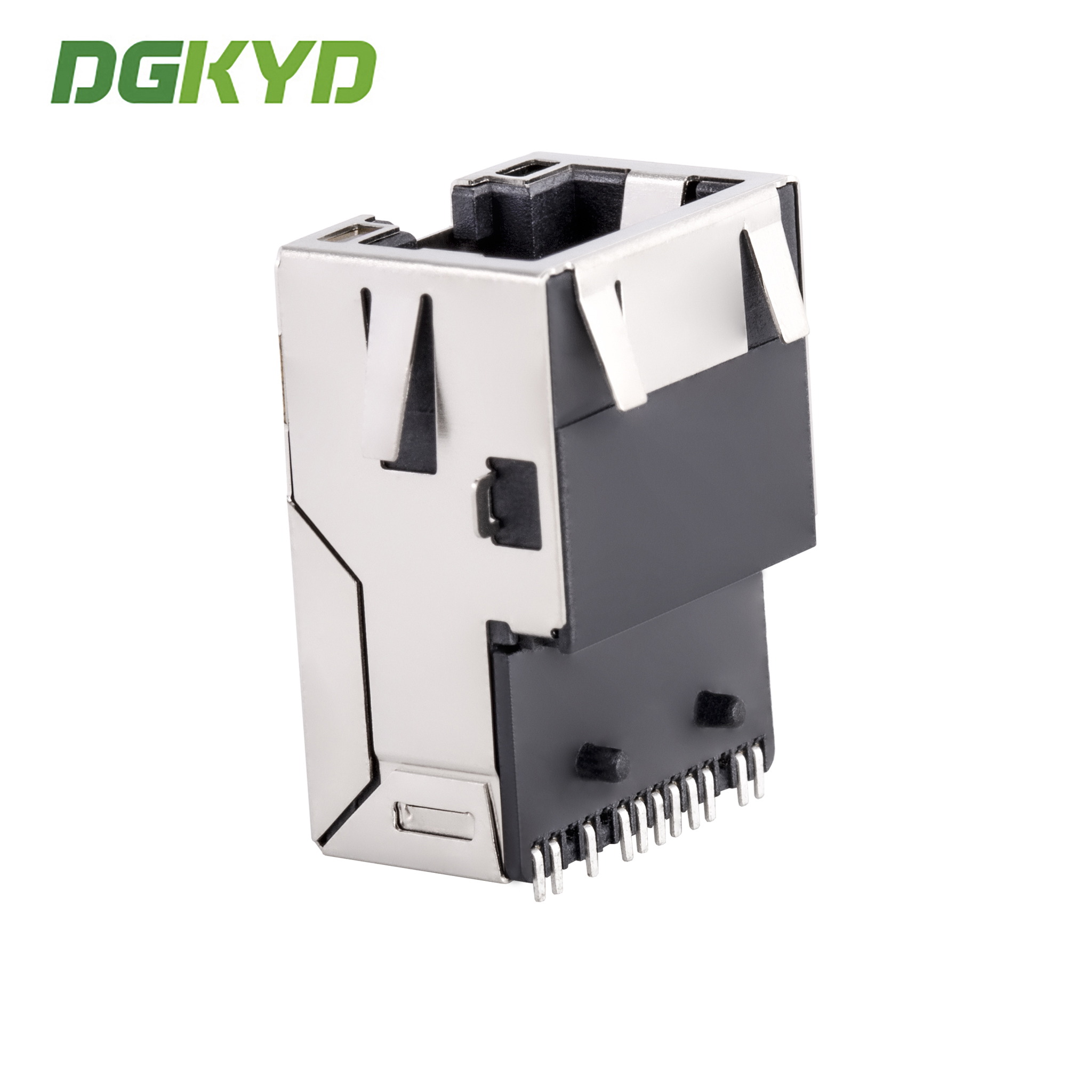

PCB Magnetic Jack With Megabit Transformer SMT SINK RJ45 Ethernet Connector KRJ-CB060YGZENL

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-CB060YGZENL

Detail Information
Application::	Ethernet	Speed::	100Base-T
Latch::	Tab Up	PCB Mount::	Right Angle Smt
Status Indicator:	Yellow/Green	Number Of Positions/Contacts:	8p10c (RJ45, Ethernet)
OEM/ODM:	Yes	Gold Plating On Contact Pins:	6U
Storage Temperature:	-40°C~+85°C	Operating Temperature:	-40°C~+85°C
Highlight:	SMT RJ45 Ethernet connector , PCB magnetic jack transformer , Megabit RJ45 connector SMT

Product Description

PCB Magnetic Jack With Megabit Transformer SMT SINK RJ45 Ethernet Connector KRJ-CB060YGZENL

Product Attributes

Application:	Ethernet
Speed:	100Base-T
Latch:	Tab up
PCB Mount:	Right Angle smt
Status Indicator	Yellow/Green
Number of Positions/Contacts	8p10c (RJ45, Ethernet)
OEM/ODM	Yes
Gold plating on contact pins	6U
Storage temperature	-40°C~+85°C
Operating temperature	-40°C~+85°C

Product Description

PCB Magnetic Jack With Megabit Transformer SMD SINK RJ45 Ethernet Connector KRJ-CB060YGZENL

Product Parameters

Part Number	KRJ-CB060YGZENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

Interface type: RJ45 connector with built-in magnetics
Application: 10/100/1000BASE-T Ethernet
Working frequency: High frequency with filtering and anti-interference characteristics
Working temperature: -40℃ to +85℃
Storage temperature: -40℃ to +85℃
Lead-free soldering compatible with wave soldering up to 265℃

Manufacturing Advantages

RJ45 full series of integrated circuit accessories
Manufacturer direct supply
Business mode: Manufacturer with OEM/ODM capability
On-time delivery, typically around two weeks
Customization options available for LED indicators, shielding, coil ratios, gold plating, and housing materials
Products meet industry standards for electrical, mechanical, and environmental requirements

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
