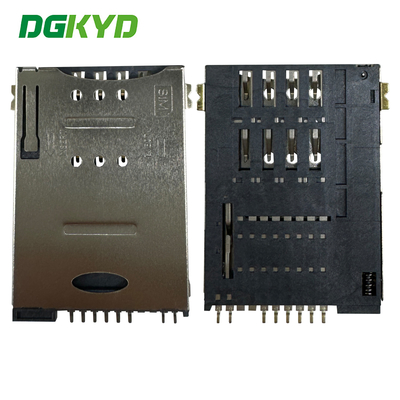

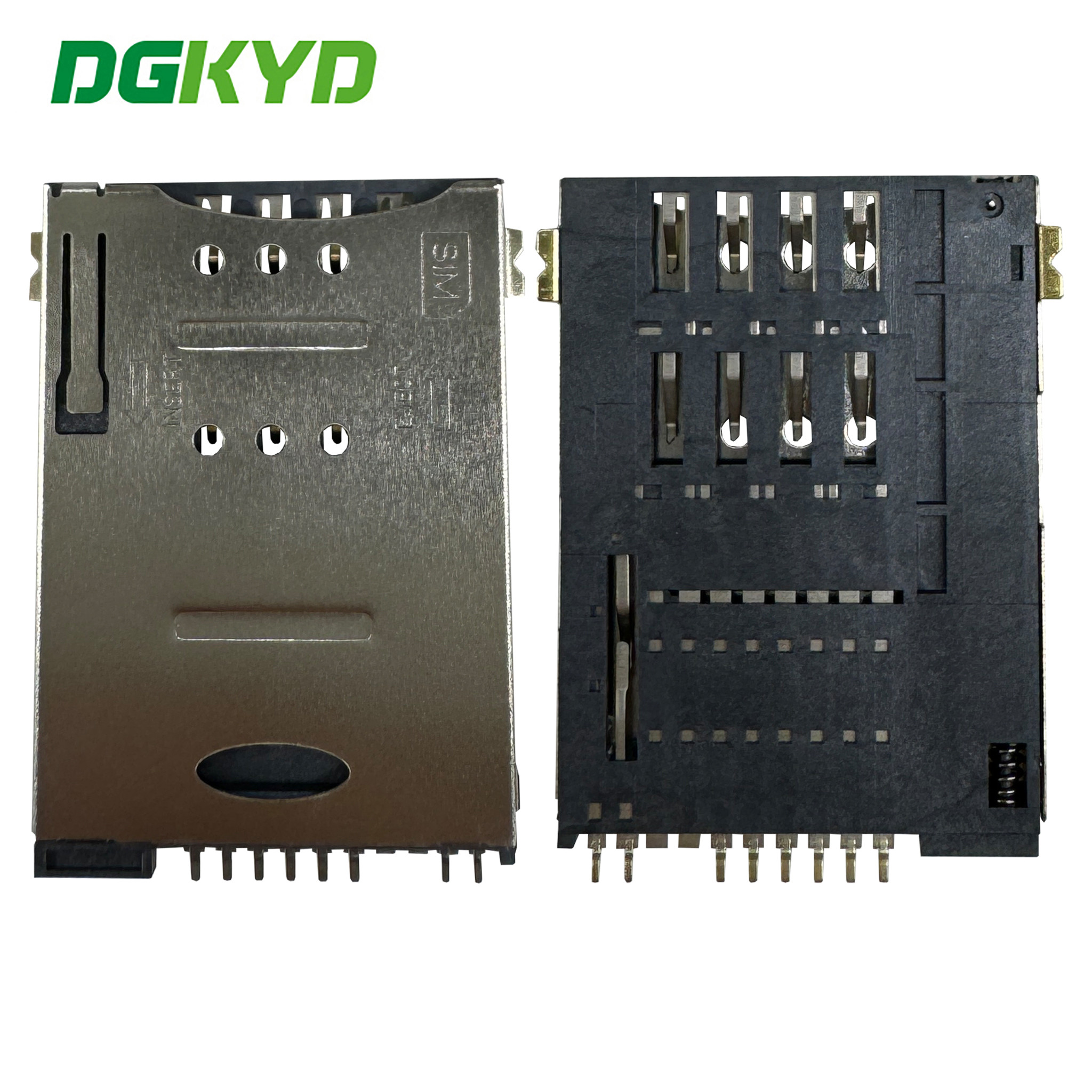

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286

Minimum Order Quantity : 1 Packaging Details : TAPE AND REEL
Delivery Time : 3-10 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10000+pcs+10days
Place of Origin: Guangdong, China Brand Name: DGKYD
Certification: UL/CE-EMC/FCC/ISO9001-2015/ISO14001-2015/ROHS Model Number: DGKYDSIM18H62W6A2Y3WS286

Detail Information

Plastic: LCP, UL94V-0, Black Shell: Made Of 30U Nickel And Gold-plated With G/FU Solder Pads.
Terminal: Phosphor Bronze, C5210. Coating Contact: Nickel 30U "Contact Area 1U "gold-plated,
Compatibility: SIM Cards Rated Voltage: 40V Max
Contact Resistance: Maximum 100m Ω. Operating Temperature: -40 ° C~+85 ° C
Durability: 5000 Cycles Insulation Resistance: Minimum 1000M Ω/500VDC
Current Rating: 0.5A
Highlight:

SMT pillarless telephone card holder

,

PUSH 6P+2 telephone card holder

,

Pillarless SIM card holder

Product Description

SIM card holder PUSH 6P+2 SMT pillarless telephone card holder DGKYDSIM18H62W6A2Y3WS286

Product Specification Document

DGKYDSIM18H62W6A2Y3WS286.pdf



Parameters

Part Number DGKYDSIM18H62W6A2Y3WS286 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  SIM card holder Connector Style card holder
card holder ype SIM card Environmental temperature range -40 ° C~+85 ° C
Latch Style Foolproof style Storage temperature range -40 ° C~+85 ° C
Shielded Made of 30U nickel and gold-plated with G/FU solder pads. Mating cycle 5000 insertions
Port Configuration  Single Ports Number of Positions  8pin
Contact Mating Area Plating Material 

Nickel 30U "Contact area 1U "gold-plated,

Contact Base Material  Phosphor Bronze
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

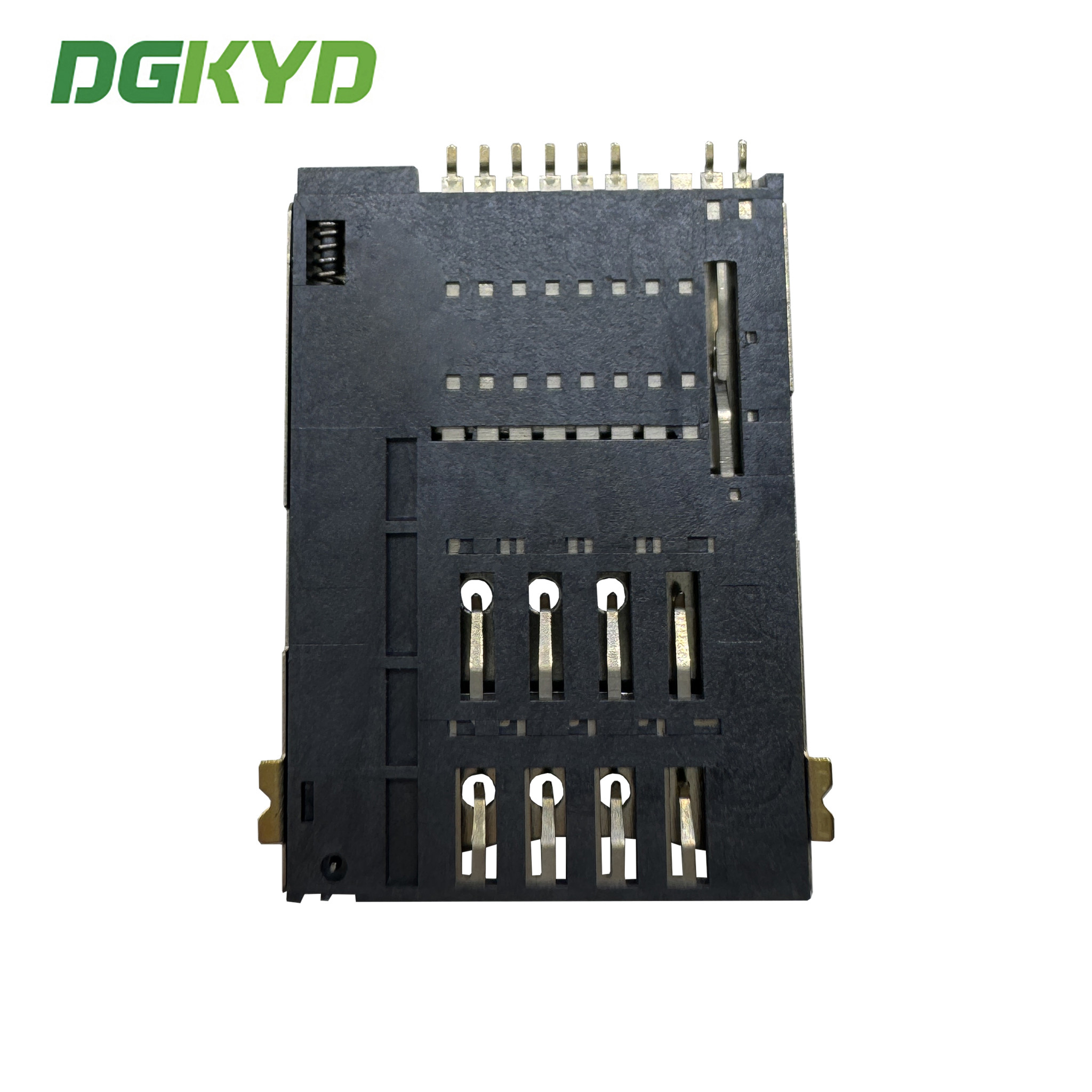

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286 0

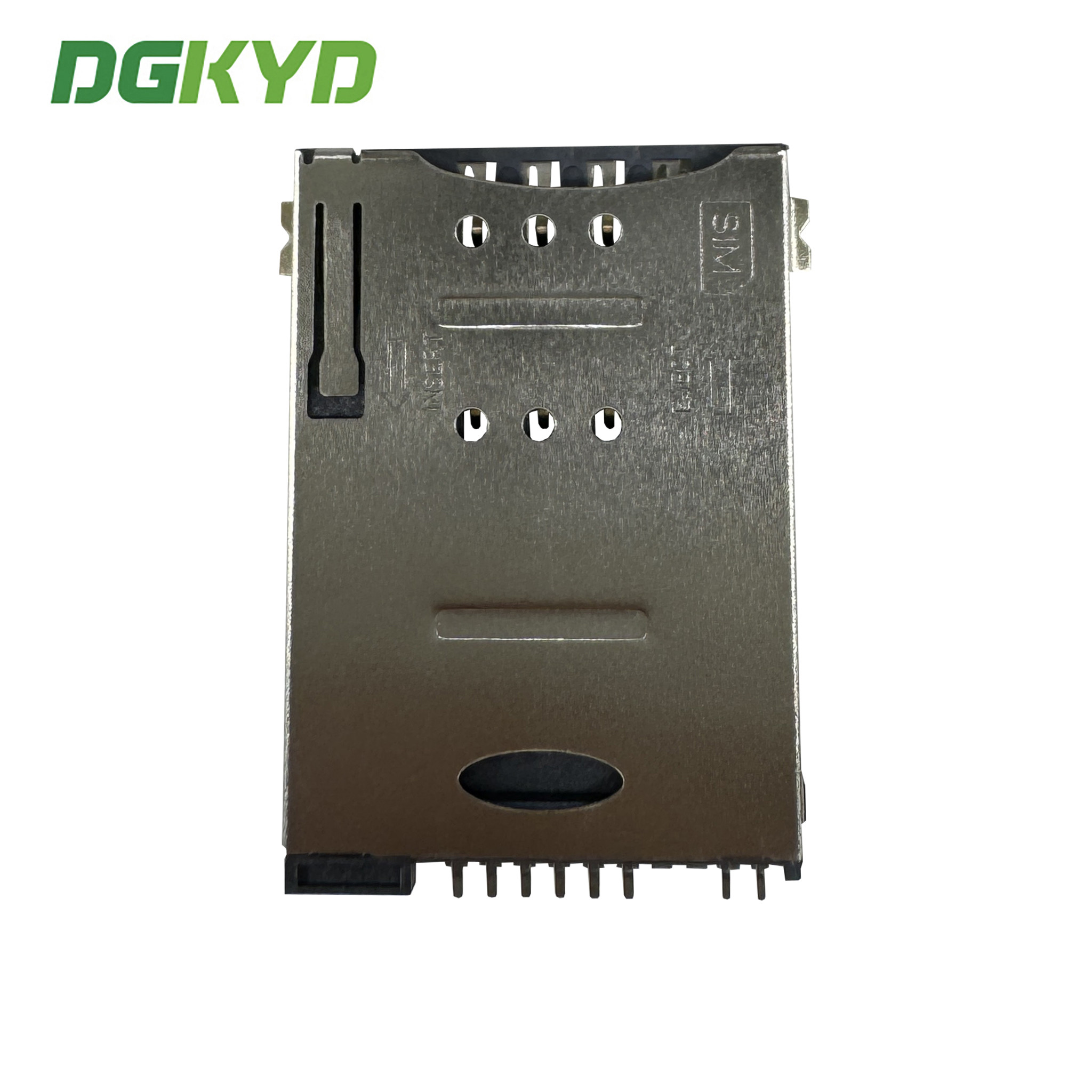

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286 1

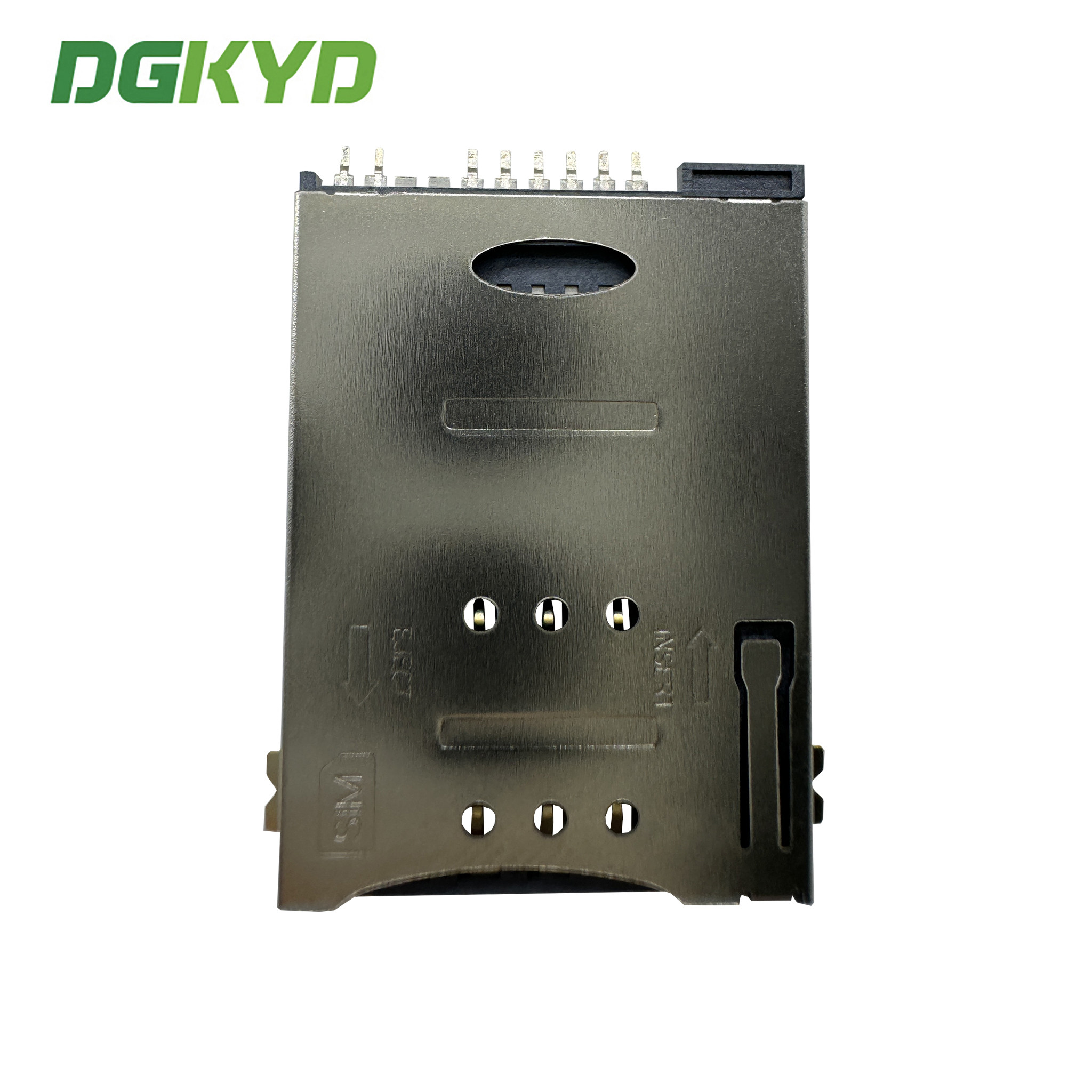

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286 4

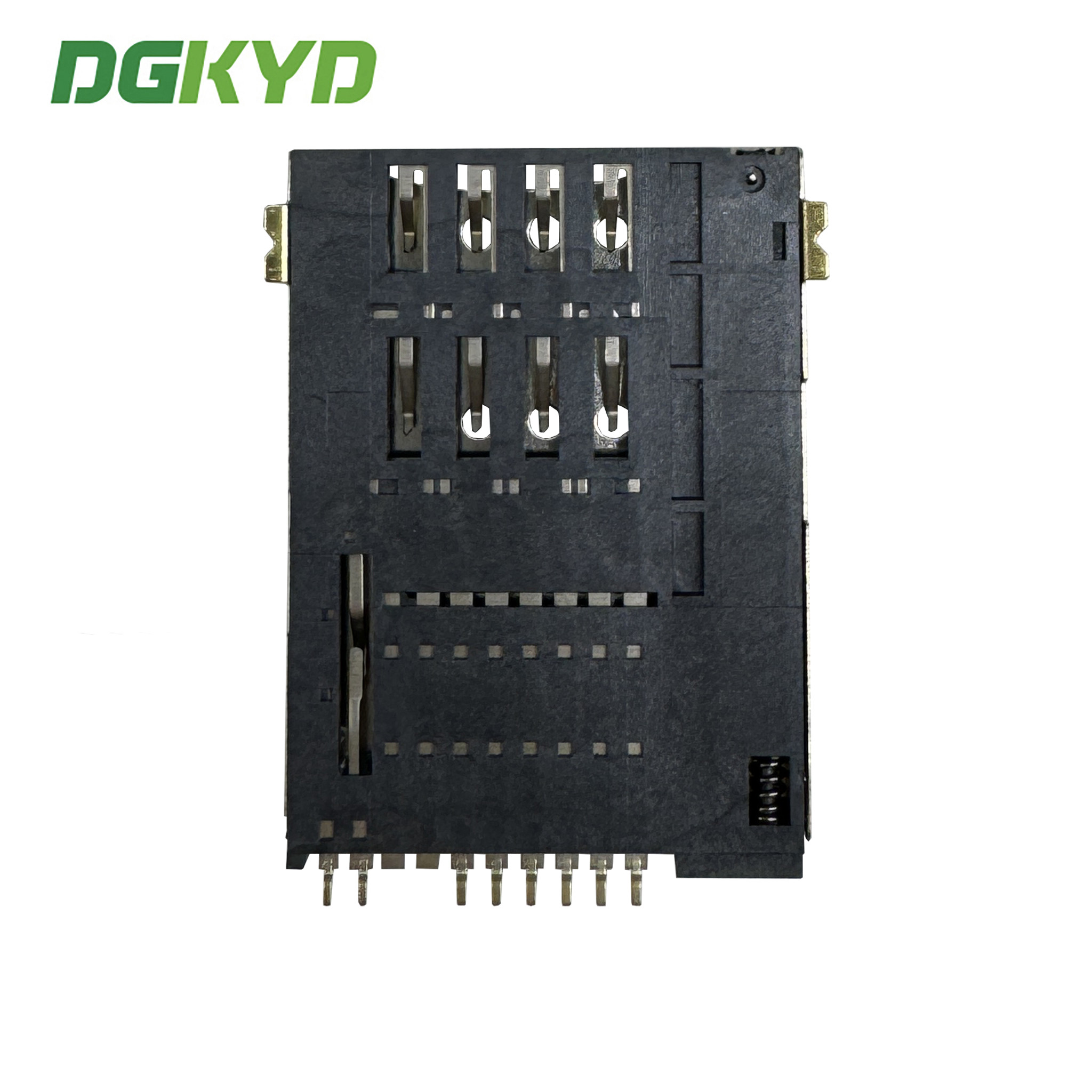

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286 5

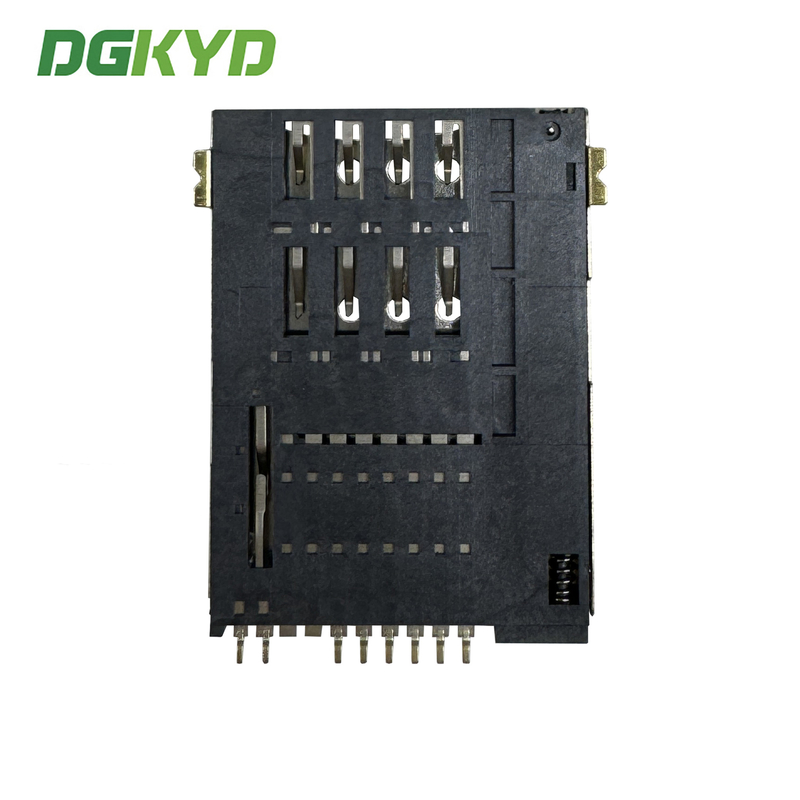

SIM Card Holder PUSH 6P+2 SMT Pillarless Telephone Card Holder DGKYDSIM18H62W6A2Y3WS286 6






FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
