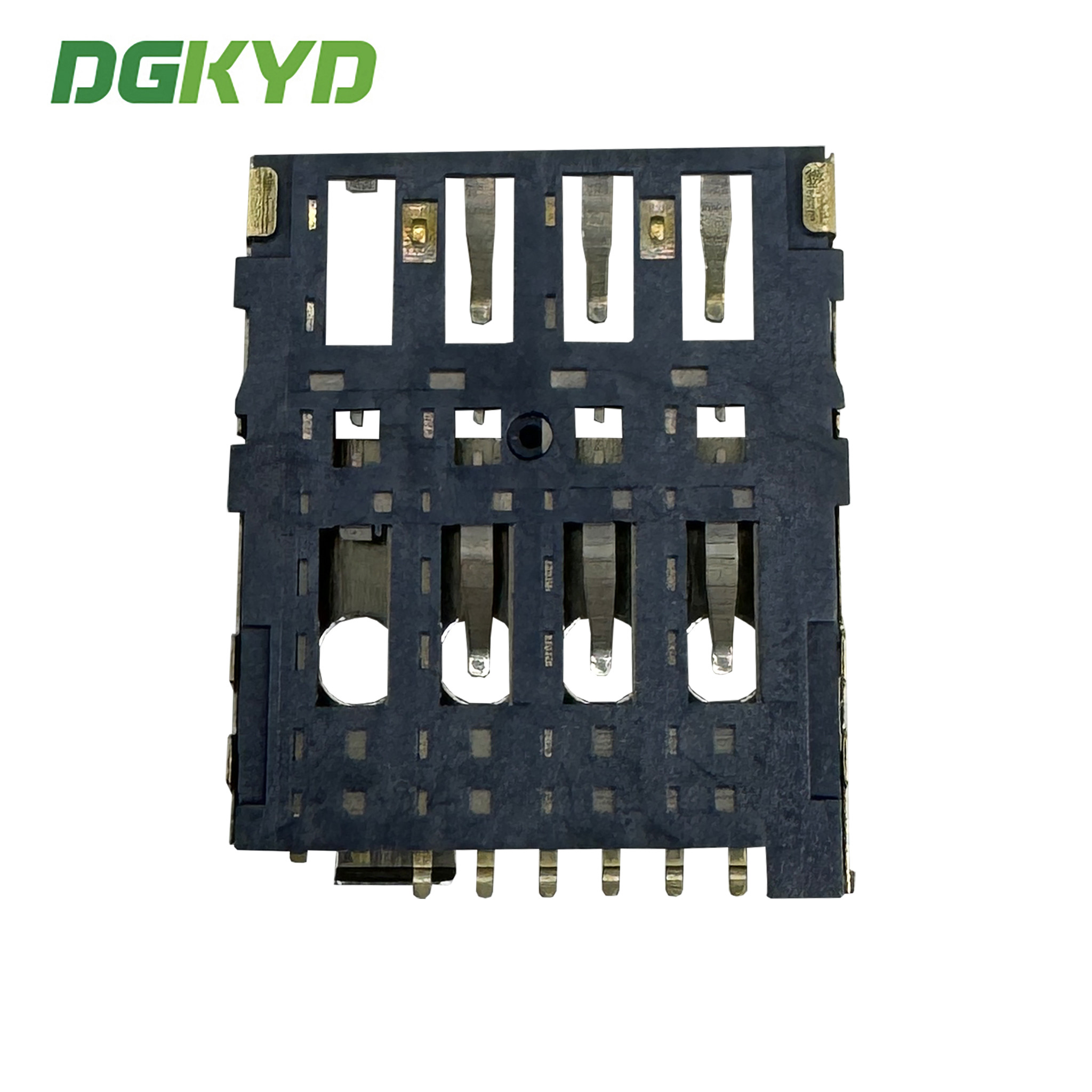

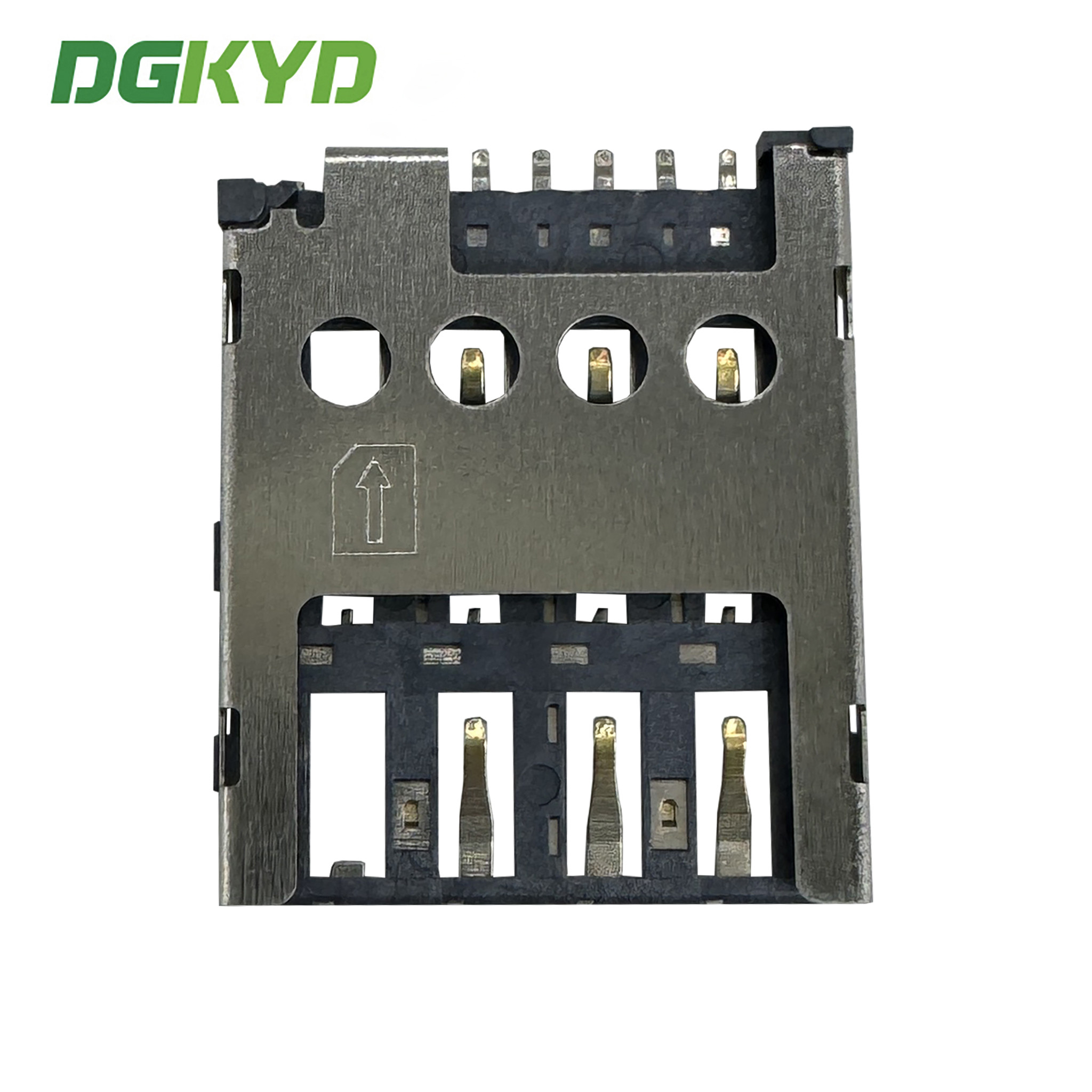

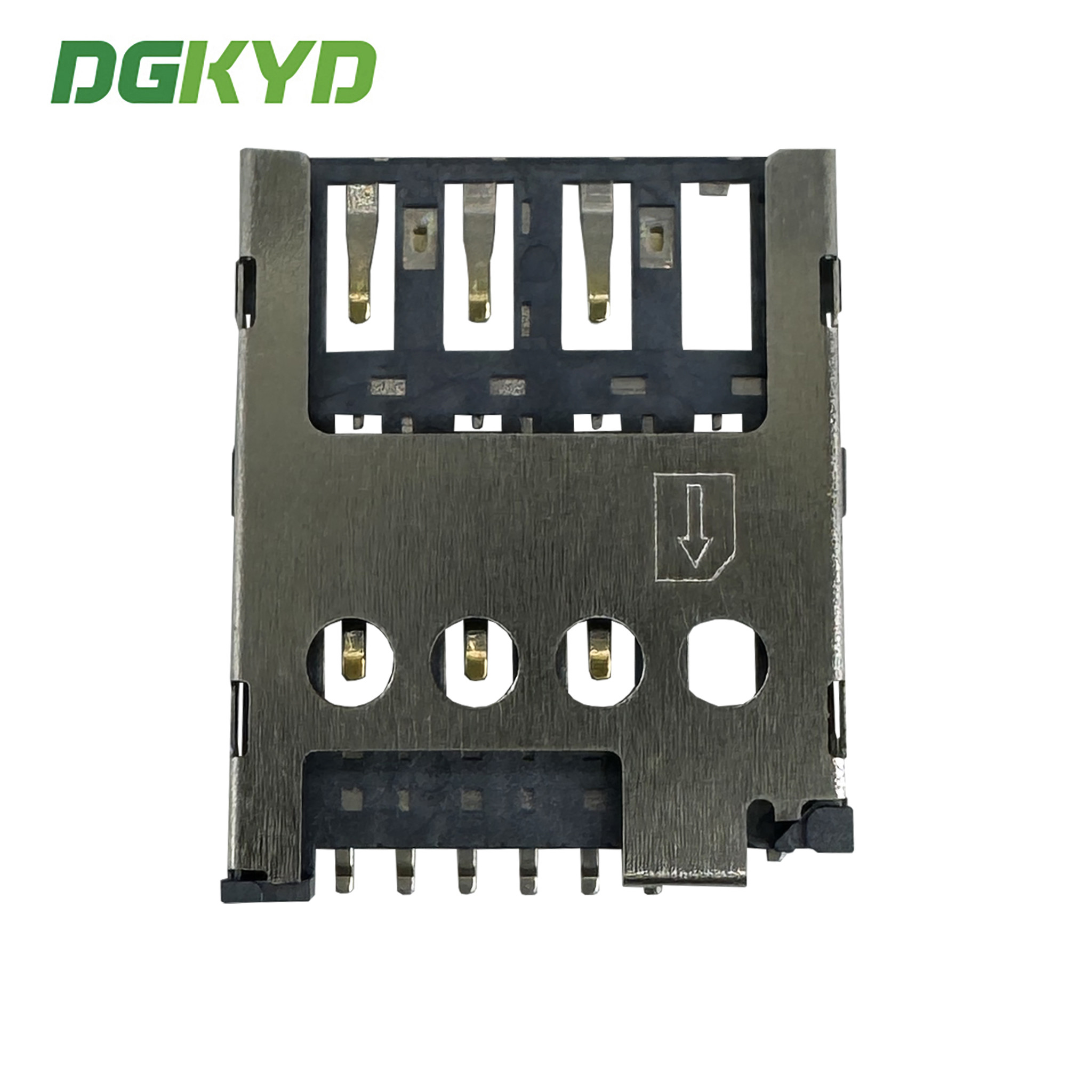

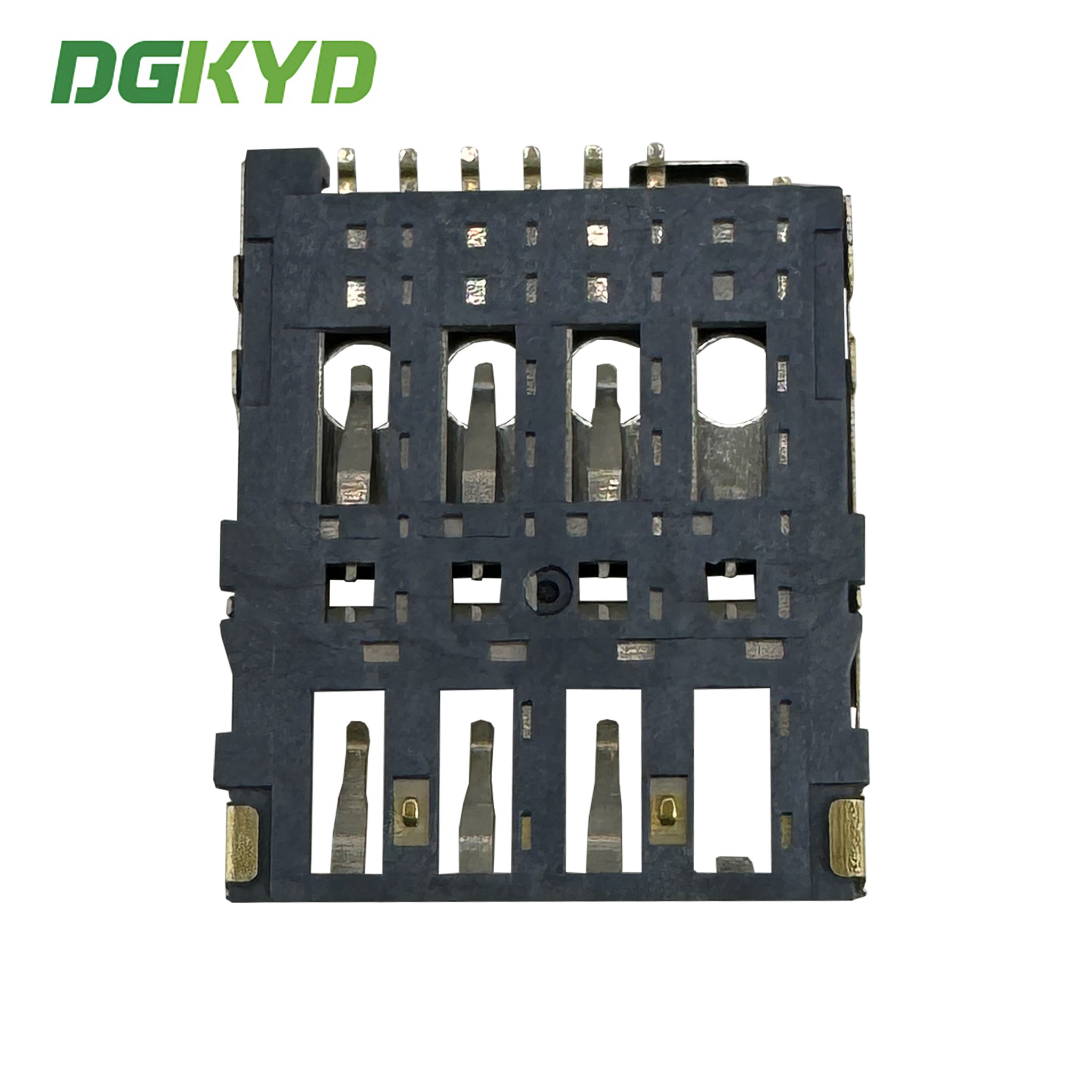

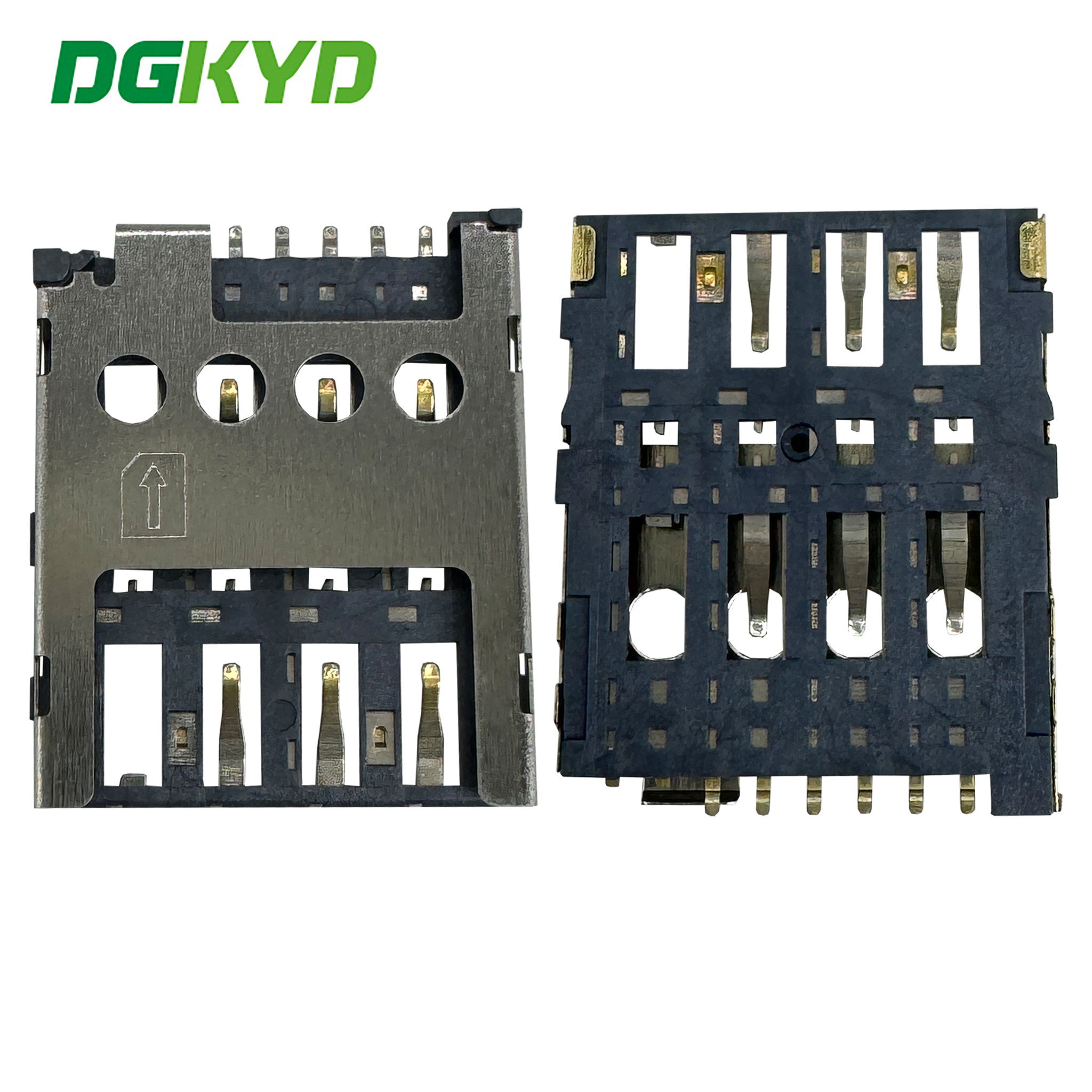

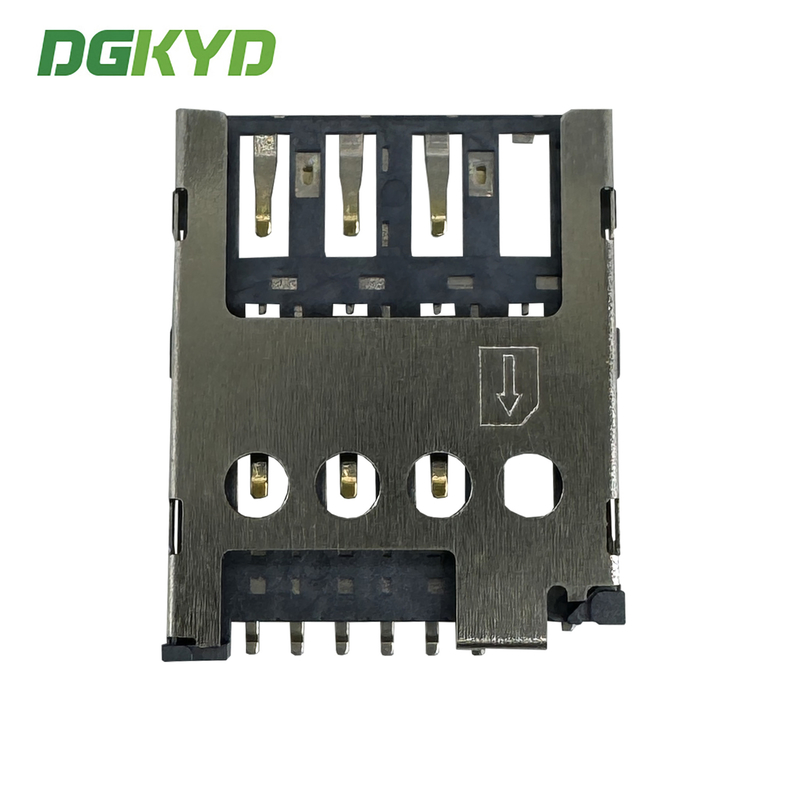

TF booth simple short body (H1.5-1.7 high) CD in the middle telephone booth DGKYDTP15H9A6A2Y3WSW286
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 | Packaging Details : | TAPE AND REEL |
|---|---|---|---|
| Delivery Time : | 3-10 work days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000+pcs+10days |
| Place of Origin: | Guangdong, China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | UL/CE-EMC/FCC/ISO9001-2015/ISO14001-2015/ROHS | Model Number: | DGKYDSIM145H8A6A2Y3WS286 |
|
Detail Information |
|||
| Plastic: | LCP, UL94V-0, Black | Shell: | Made Of 30U Nickel And Gold-plated With G/FU Solder Pads. |
|---|---|---|---|
| Terminal: | Phosphor Bronze, C5210. Coating | Contact: | Nickel 30U "Contact Area 1U "gold-plated, |
| Compatibility: | MICRO Cards | Rated Voltage: | 40V Max |
| Contact Resistance: | Maximum 100m Ω. | Operating Temperature: | -40 ° C~+85 ° C |
| Durability: | 5000 Cycles | Insulation Resistance: | Minimum 1000M Ω/500VDC |
| Current Rating: | 0.5A | ||
| Highlight: | 8P MICRO SIM card slot,1.45H MICRO SIM card slot,drawer style MICRO SIM card slot |
||
Product Description
Product Specification Document
Parameters
| Part Number | DGKYDSIM145H8A6A2Y3WS286 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | micro card holder | Connector Style | card holder |
| card holder ype | Micro card | Environmental temperature range | -40 ° C~+85 ° C |
| Latch Style | Foolproof style | Storage temperature range | -40 ° C~+85 ° C |
| Shielded | Made of 30U nickel and gold-plated with G/FU solder pads. | Mating cycle | 5000 insertions |
| Port Configuration | Single Ports | Number of Positions | 8Pin |
| Contact Mating Area Plating Material |
Nickel 30U "Contact area 1U "gold-plated, |
Contact Base Material | Phosphor Bronze |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
