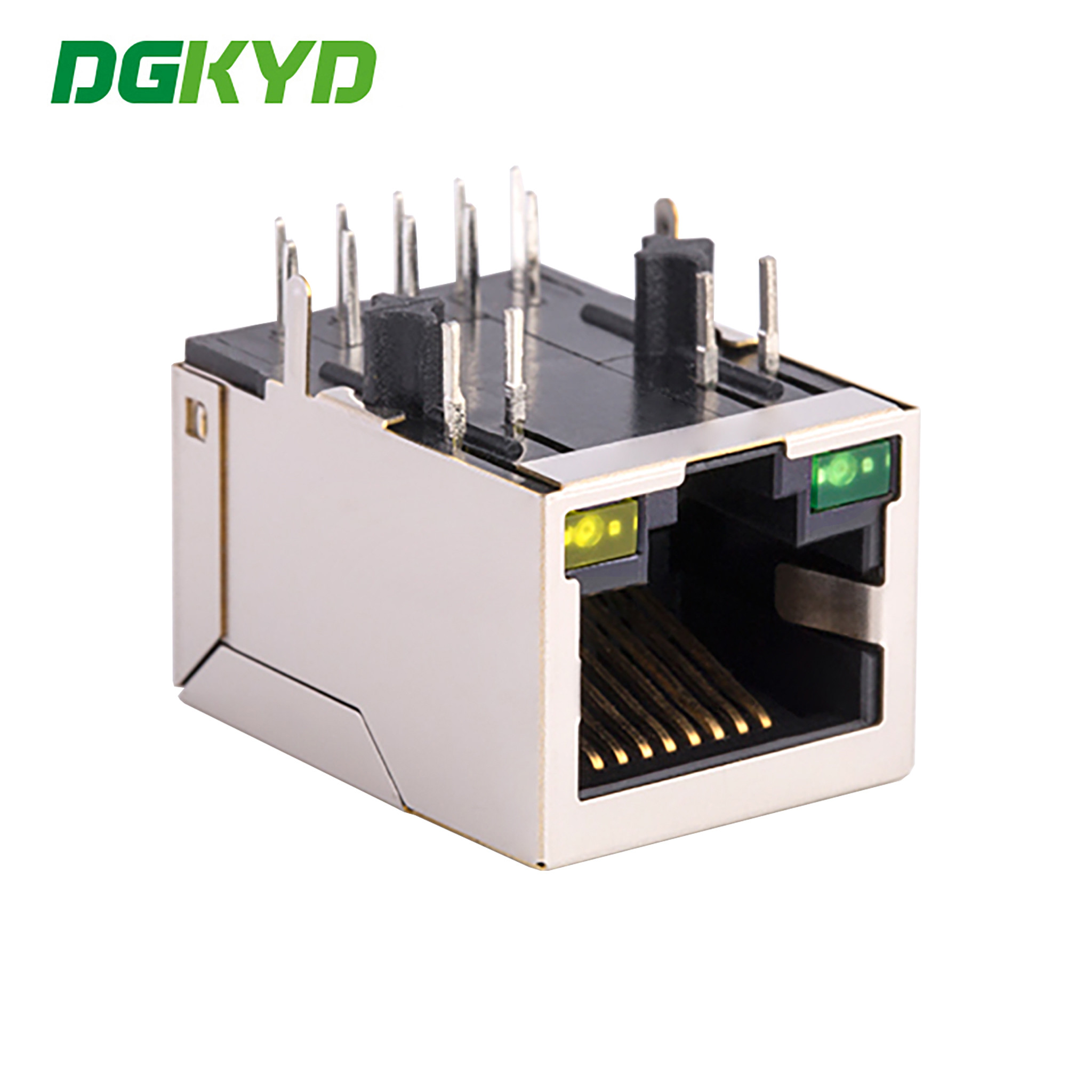

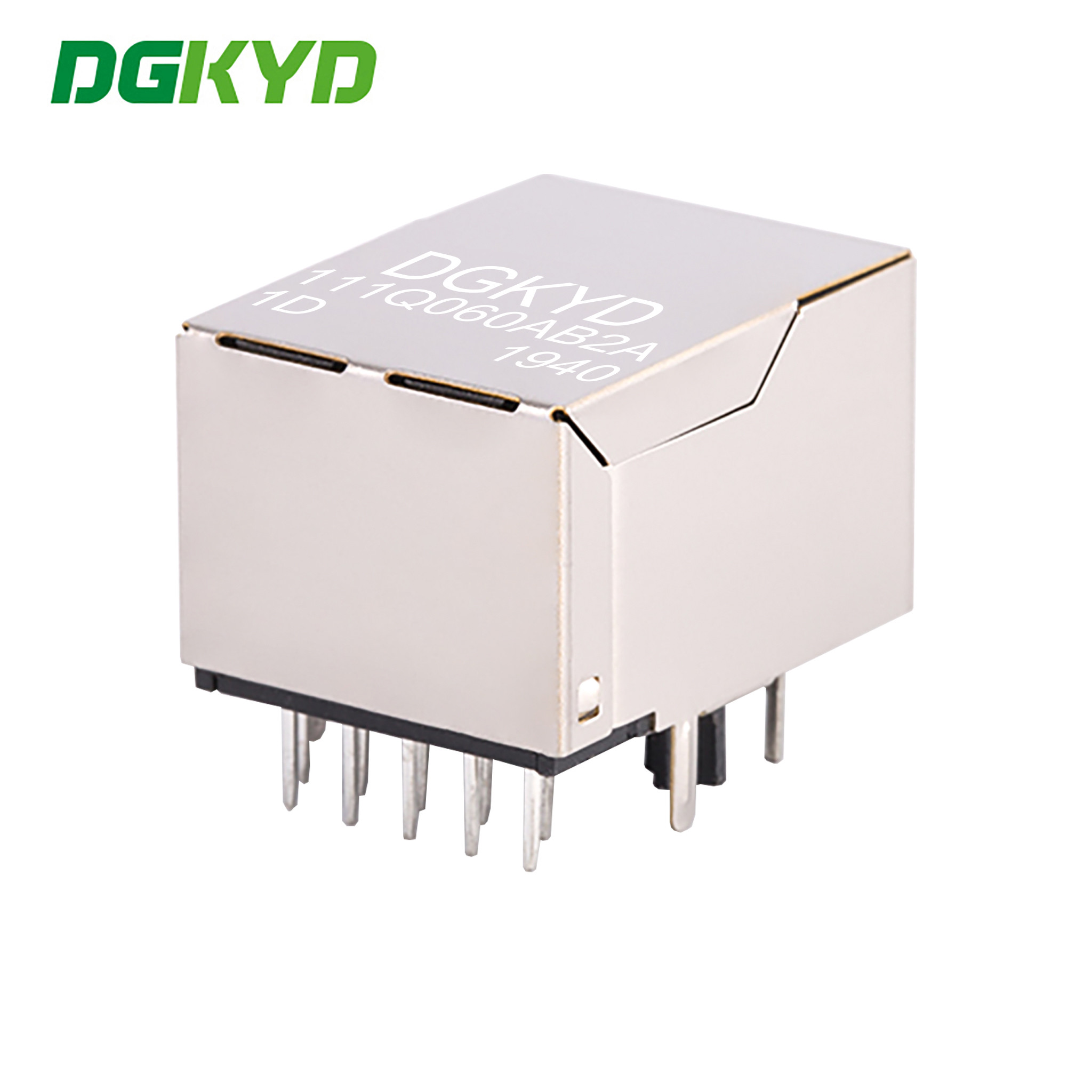

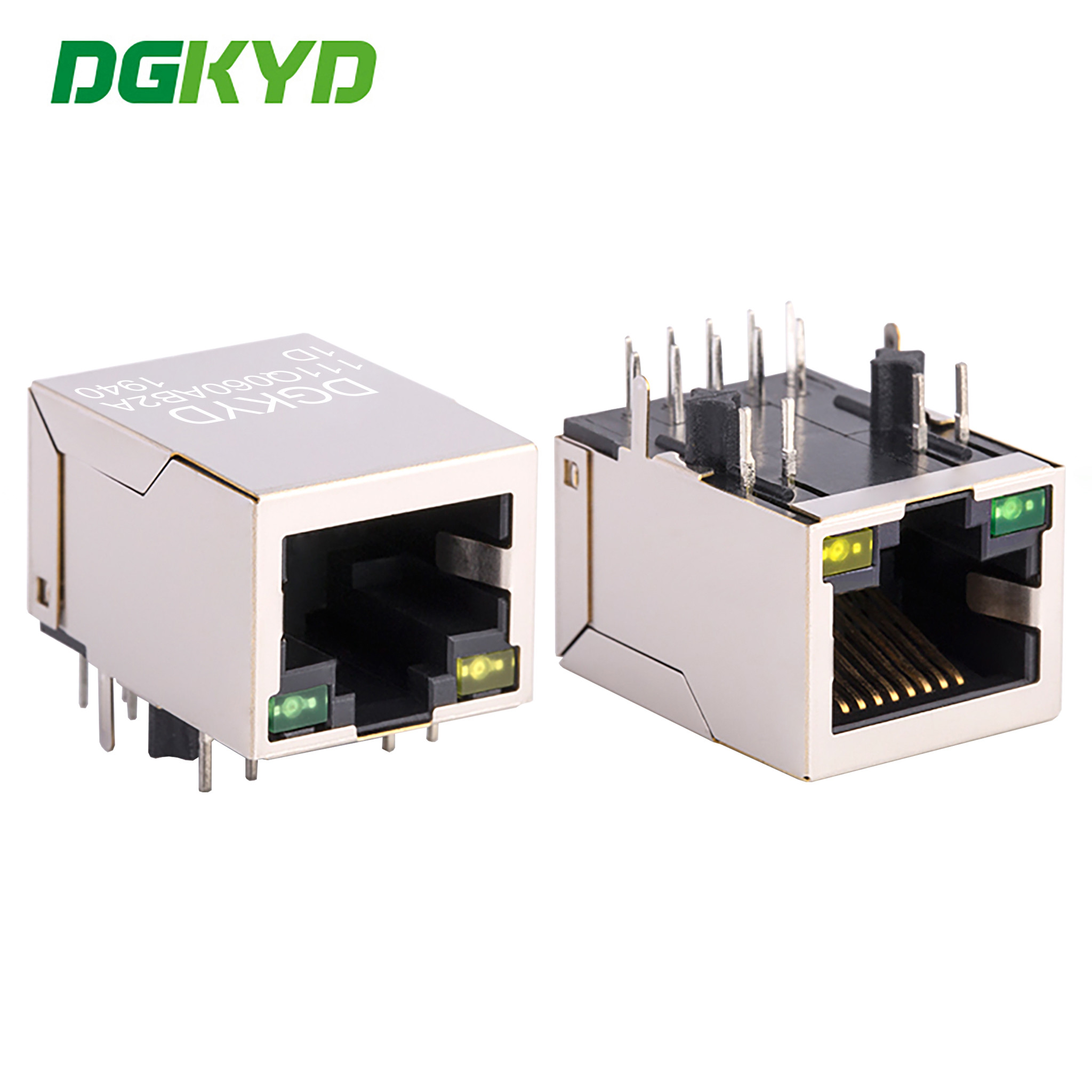

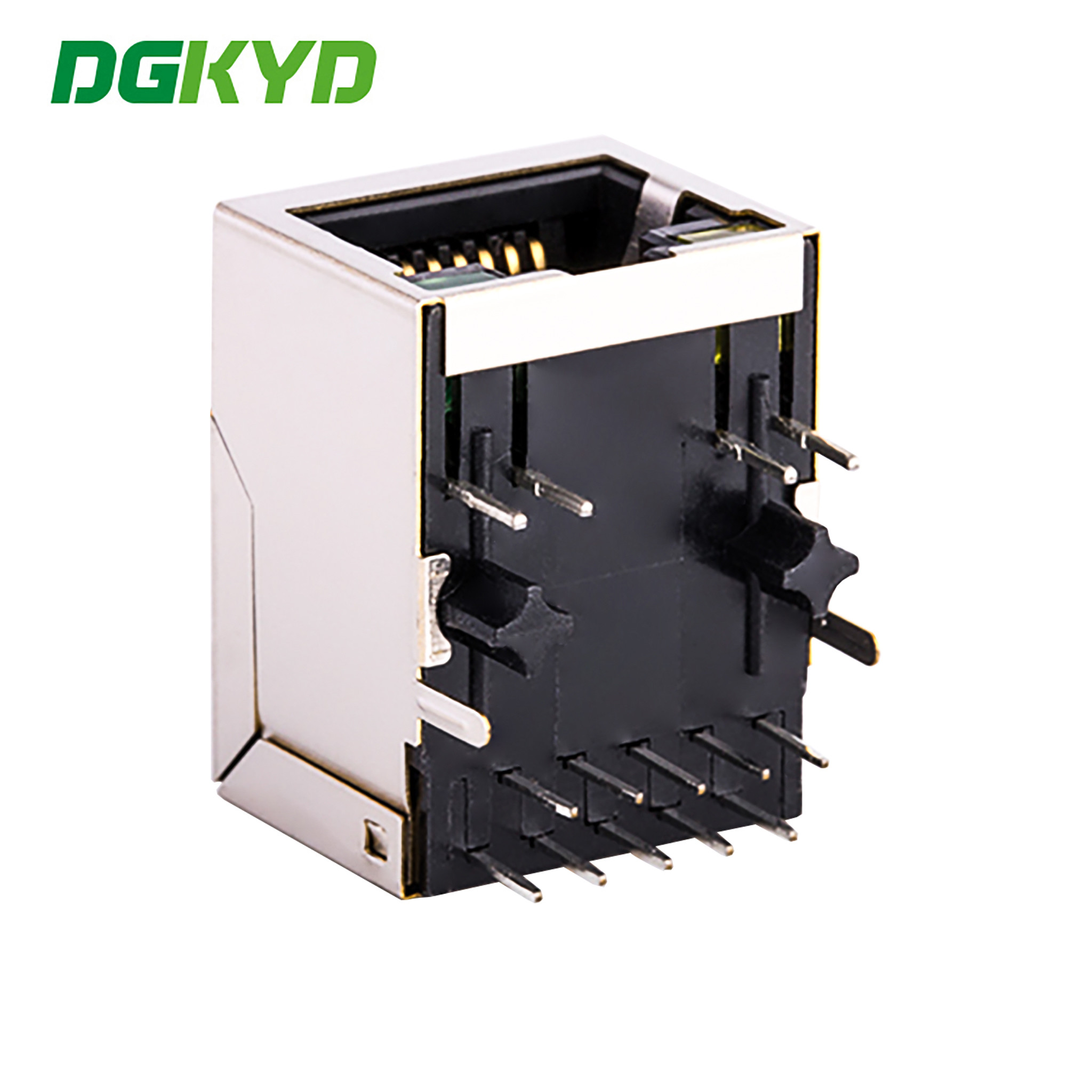

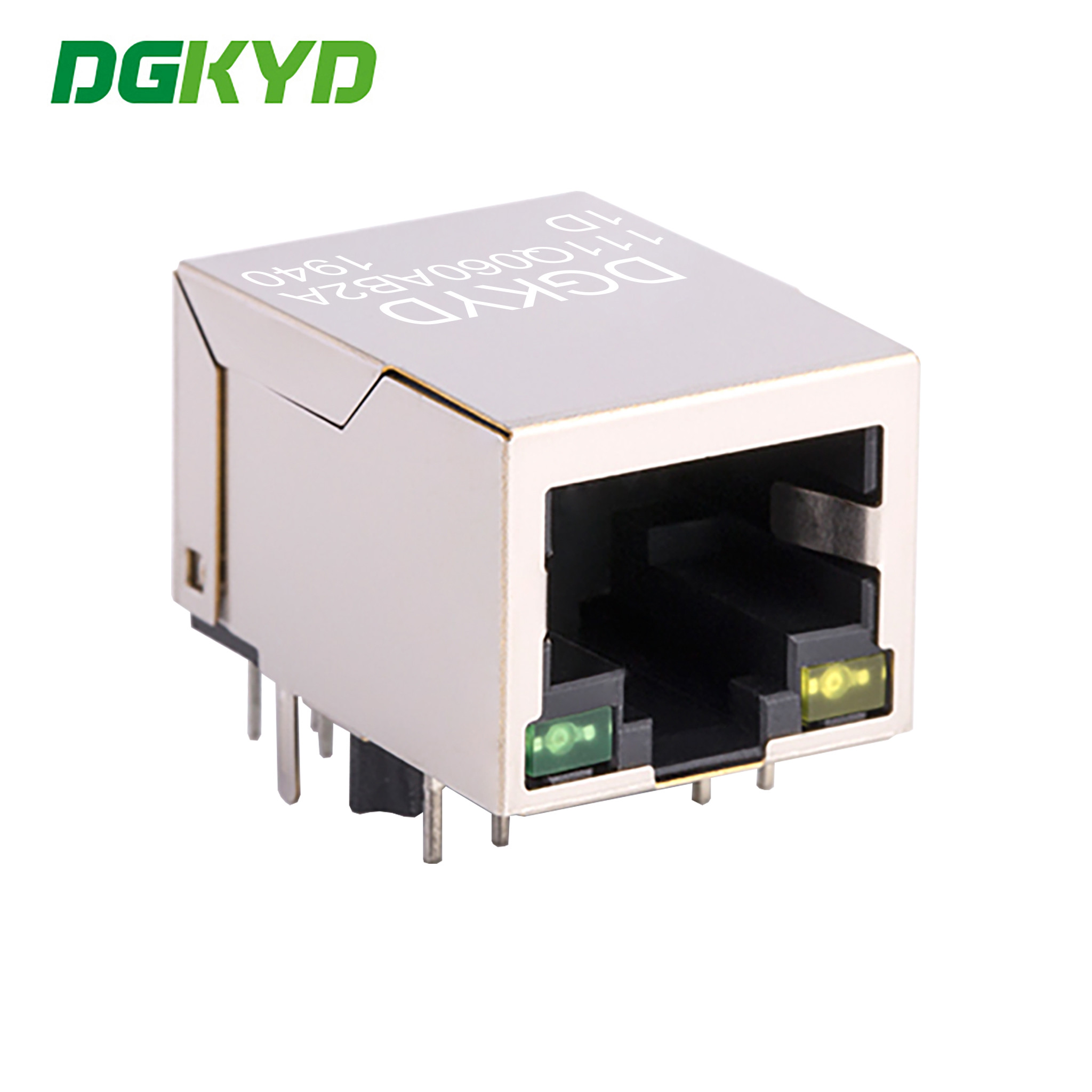

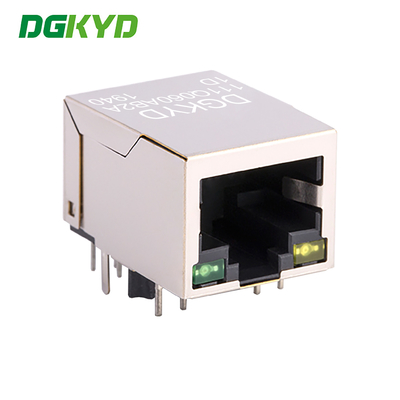

10/100/1000M Base-T/TX RJ45 Network Interface With LED Lights, Modular Socket For Network Port DGKYD111Q060AB2A1D

Contact Now

10/100/1000M Base-T/TX RJ45 Network Interface With LED Lights, Modular Socket For Network Port DGKYD111Q060AB2A1D

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD111Q060AB2A1D

Detail Information
Component Type:	PCB Jack	Magnetic:	Yes
LED:	Green/Yellow	Product Name:	Magnetic Jack, Modular Jack 8/8, RJ45
PCB Mount Style:	DIP	Shield:	Phosphor Copper Nickel Plating
Plastic Housing Material:	Black PBT	Number Of Pins:	8
Operating Temperature:	- 40 ℃ ~ 85 ℃	Gold Plating On Contact Pins:	6U
Encapsulation Method:	Single In-line Package
Highlight:	modular socket RJ45 network interface , 10/100/1000M Base-T/TX RJ45 interface , RJ45 Network Interface With LED

Product Description

10/100/1000M Base-T/TX RJ45 network interface with LED lights, modular socket for network port DGKYD111Q060AB2A1D

Product Specification Document

DGKYD111Q060AB2A1D.pdf

Part Number	DGKYD111Q060AB2A1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

MATERIAL:

HOUSING : PBT,UL94V-0,BLACK.

TERMINALS BRACKET: PBT,UL94V-0,BLACK.

SHIELD: C2680,T=0.20MM,NICKEL PLATING ON ALL AREA.

TERMINAL: PHOSPHOR BRONZE C5210,T=0.35MM,

6U" GOLD PLATING ON CONTACT AREA.

MECHANICAL:

DURABILITY : 750 CYCLES MIN.

MATING FORCE : 23N MAX.

OPERATING TEMPERATURE: -40°C~+85°C.

STORAGE TEMPERATURE: -40°C~+85°C.

ALL CRITICAL DIMENSIONS WITH "*"

Electrical:

1.Turn ratio:2~3:J1~J2=1CT:1CT(±2%).

4~7:J3~J6=1CT:1CT(±2%).

5~6:J4~J5=1CT:1CT(±2%).

8~9:J7~J8=1CT:1CT(±2%).

2.OCL:350uH Min.at 100KHz 100mV 8mA DC.

3.Insertion Loss: -1.0 dB Max 1~100MHz.

4.Return loss: -18dB Min 1~30MHz;

-14dB Min 30~60MHz.

-12dB Min 60~80MHz.

-10dB Min 80~100MHz.

5.Cross talk: -40dB Min 1~30MHz;

-35dB Min 30~60MHz;

-30dB Min 60~100MHz;

6.CMR: -30dB Min 1~100MHz;

7.Hi-Pot: 2250V DC 6S 1mA PRI TO SEC

Power over Ethernet or PoE describes any of several standard or ad-hoc systems which pass electric power along with data on twisted pair Ethernet cabling. This allows a single cable to provide both data connection and electric power to devices such as wireless access points, IP cameras, and VoIP phones.

There are several common techniques for transmitting power over Ethernet cabling. Two of them have been standardized by IEEE 802.3 since 2003. These standards are known as Alternative A and Alternative B. For 10BASE-T and 100BASE-TX, only two of the four signal pairs in typical Cat 5 cable are used. Alternative B separates the data and the power conductors, making troubleshooting easier. It also makes full use of all four twisted pairs in a typical Cat 5 cable. The positive voltage runs along pins 4 and 5, and the negative along pins 7 and 8.
