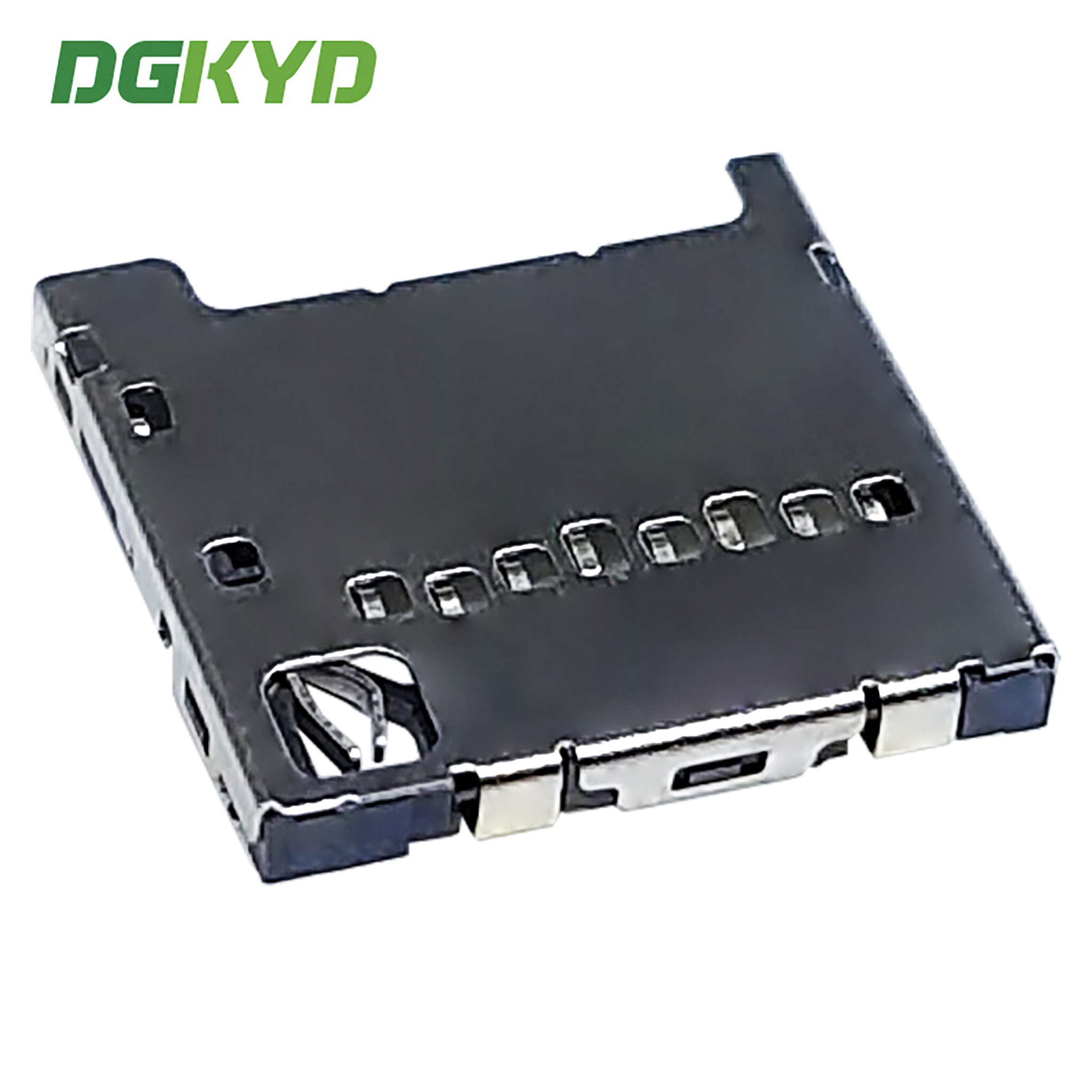

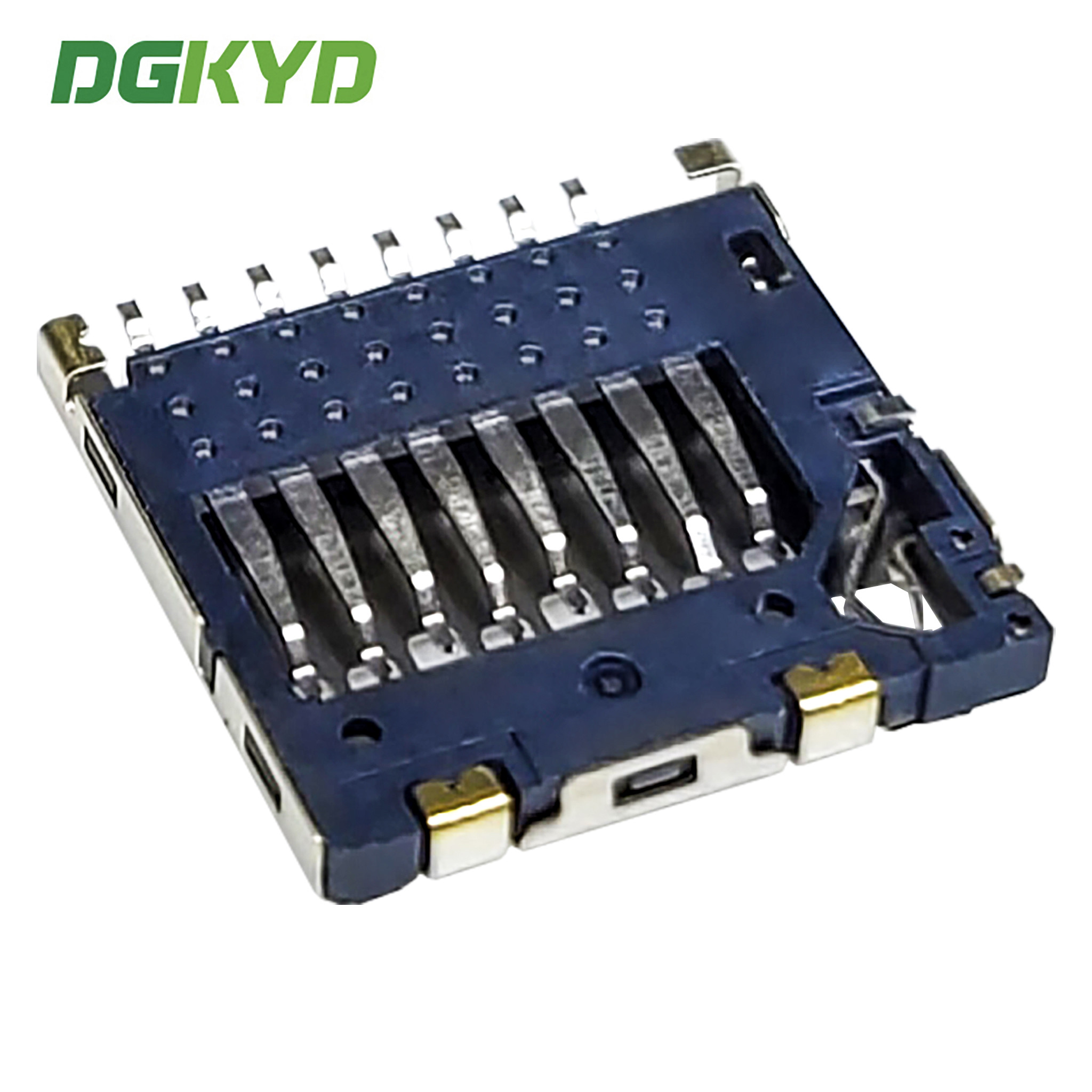

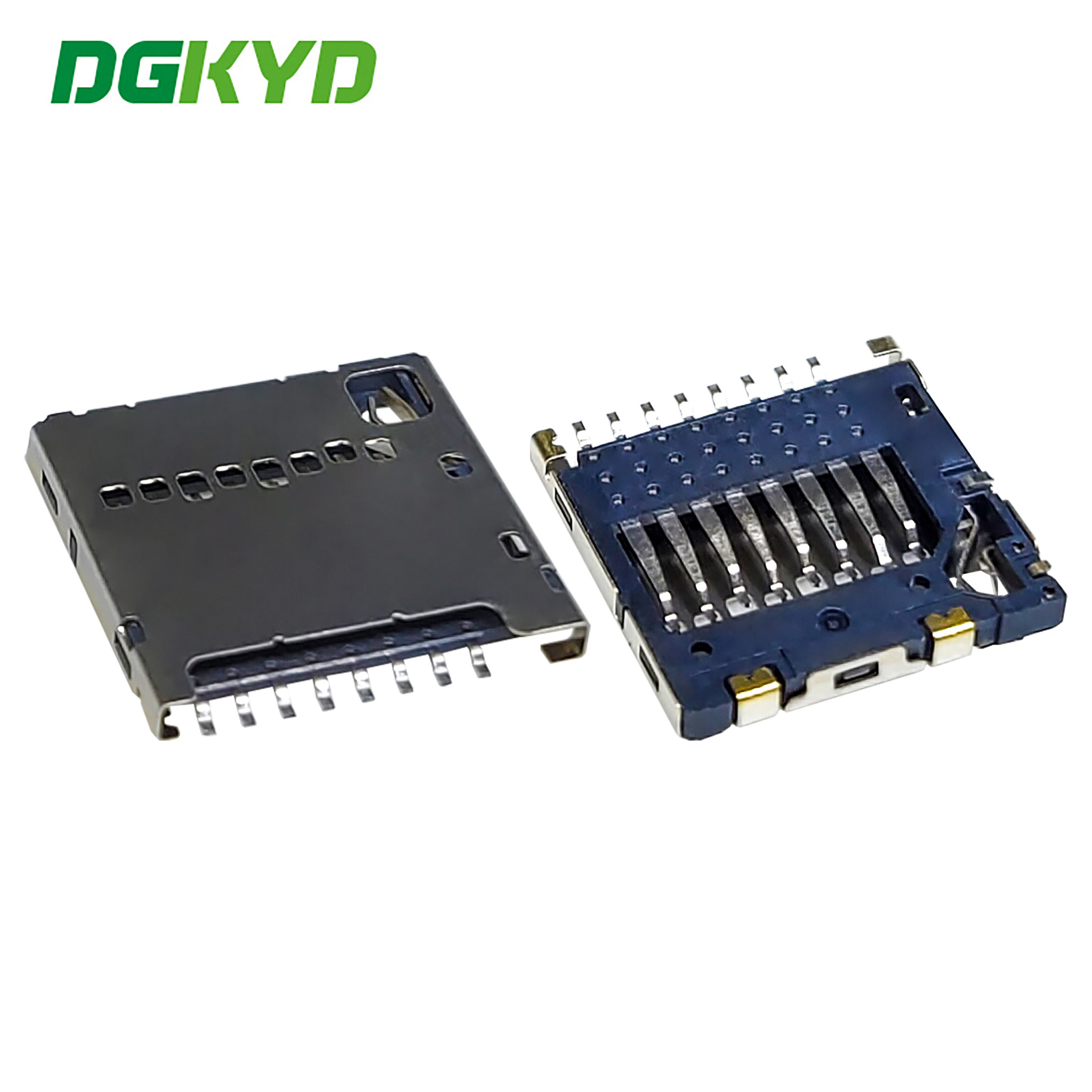

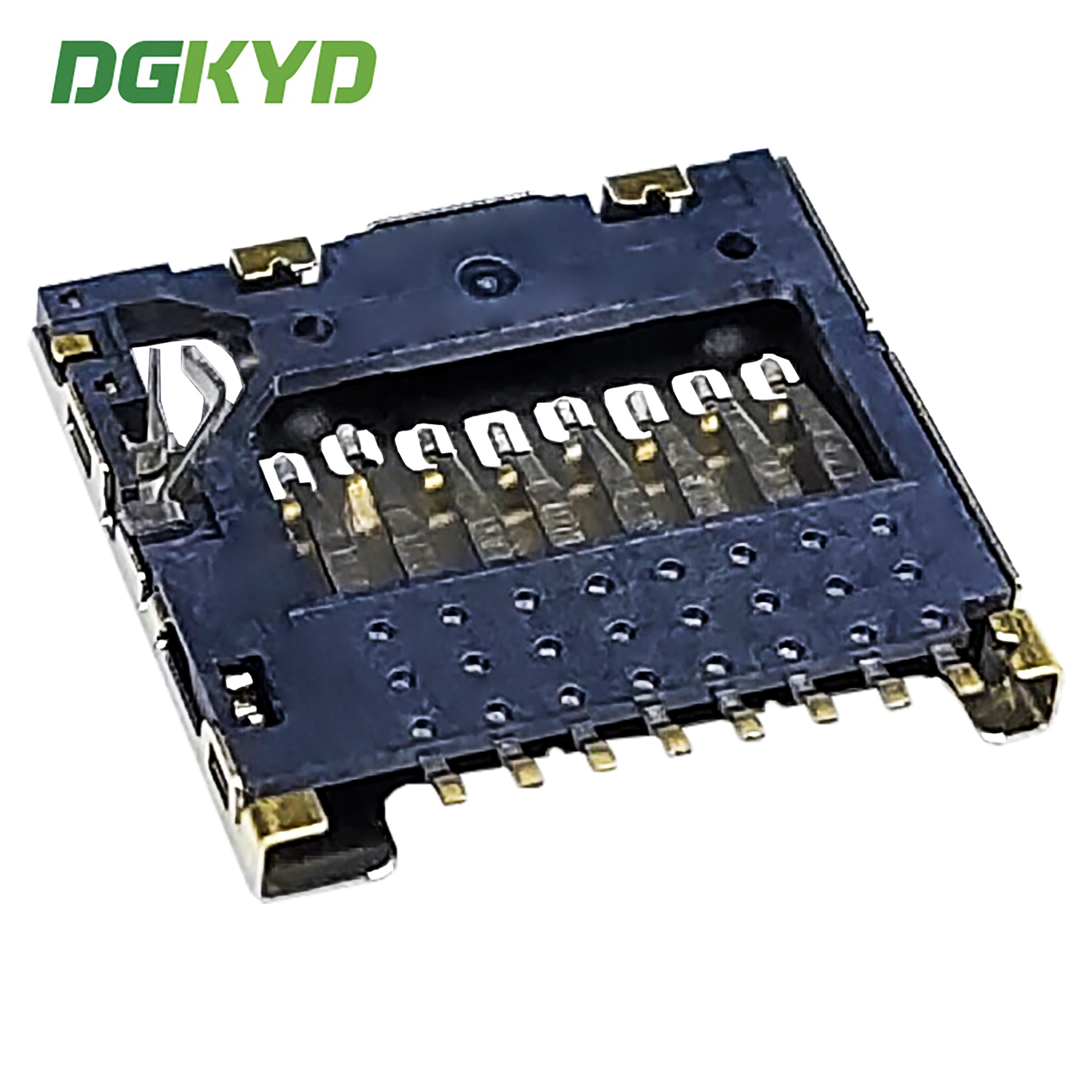

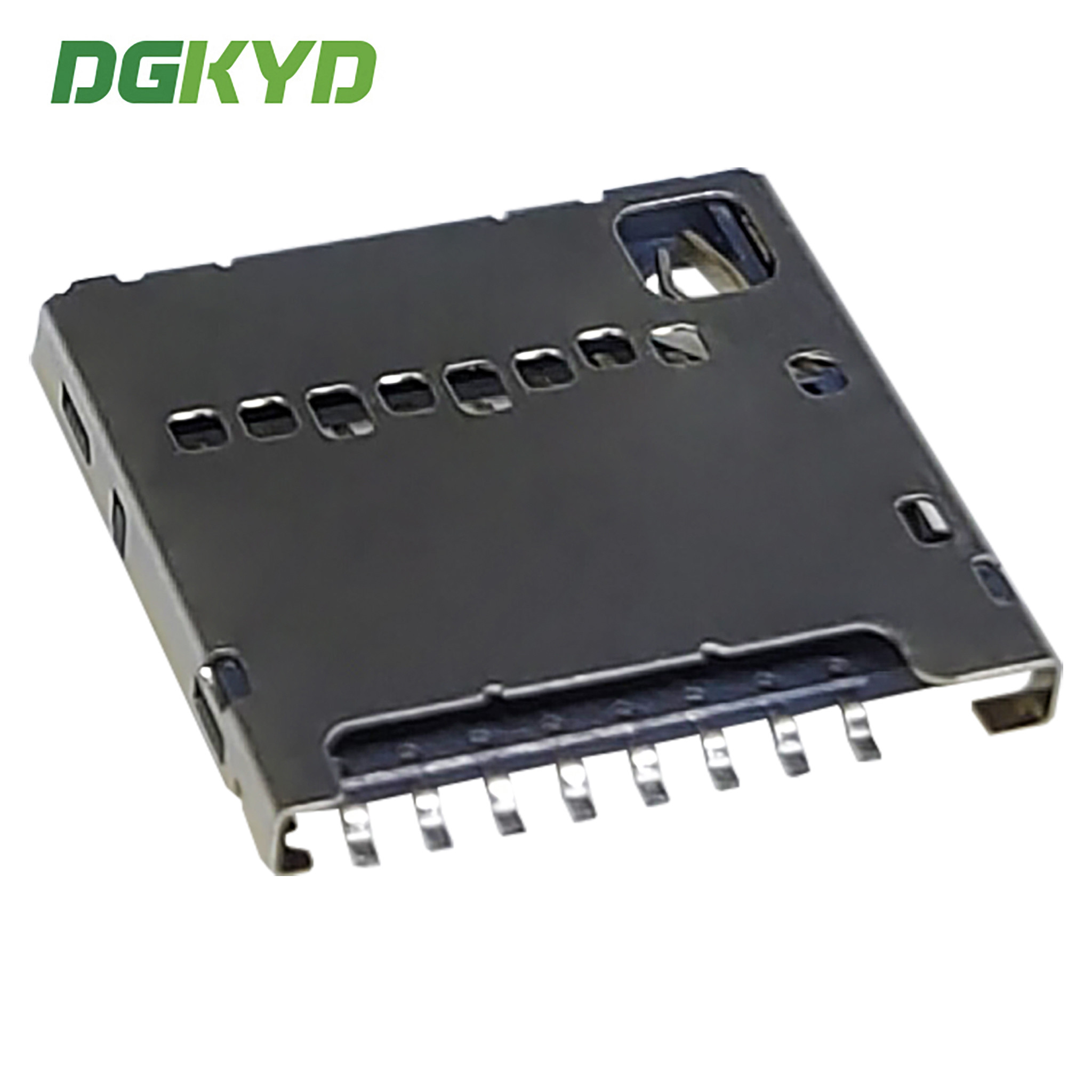

TF Drawer Style Card Holder 1.42H With Switch - Normally Open Suitable For Electronic Products DGKYDTF142H8A6A2Y3WS286

Minimum Order Quantity :	1	Packaging Details :	TAPE AND REEL
Delivery Time :	3-10 work days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000+pcs+10days

Place of Origin:	Guangdong, China	Brand Name:	DGKYD
Certification:	UL/CE-EMC/FCC/ISO9001-2015/ISO14001-2015/ROHS	Model Number:	DGKYDTF142H8A6A2Y3WS286

Detail Information
Plastic:	LCP, UL94V-0, Black	Shell:	All Nickel Is 50U ", And The Solder Pads Are Gold-plated With G/FU.
Terminal:	Phosphor Bronze, C5210. Coating	Gold:	Nickel All 50U ", Contact Area 1U"
Compatibility:	TF Cards	Rated Voltage:	125V AC/DC
Contact Resistance:	Maximum 100m Ω.	Operating Temperature:	-25°C To +85°C
Durability:	5000 Cycles	Insulation Resistance:	Minimum 1000M Ω/500VDC
Current Rating:	0.5mA AC/DC.
Highlight:	TF drawer style card holder , TF card holder With Switch , TF card socket 1.42H

Product Description

TF drawer style card holder 1.42H with switch - normally open suitable for electronic products DGKYDTF142H8A6A2Y3WS286

Product Specification Document

DGKYDTF142H8A6A2Y3WS286.pdf

Parameters

Part Number	DGKYDTF142H8A6A2Y3WS286	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	TF card holder	Connector Style	card holder
card holder ype	TF	Environmental temperature range	-25 ° C~+85 ° C
Latch Style	Foolproof style	Storage temperature range	-25 ° C~+85 ° C
Shielded	All nickel is 50U ", and the solder pads are gold-plated with G/FU.	Mating cycle	5000 insertions
Port Configuration	Single Ports	Number of Positions	8
Contact Mating Area Plating Material	Nickel all 50U ", contact area 1U"	Contact Base Material	Phosphor Bronze
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

TF Drawer Style Card Holder 1.42H With Switch - Normally Open Suitable For Electronic Products DGKYDTF142H8A6A2Y3WS286 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
