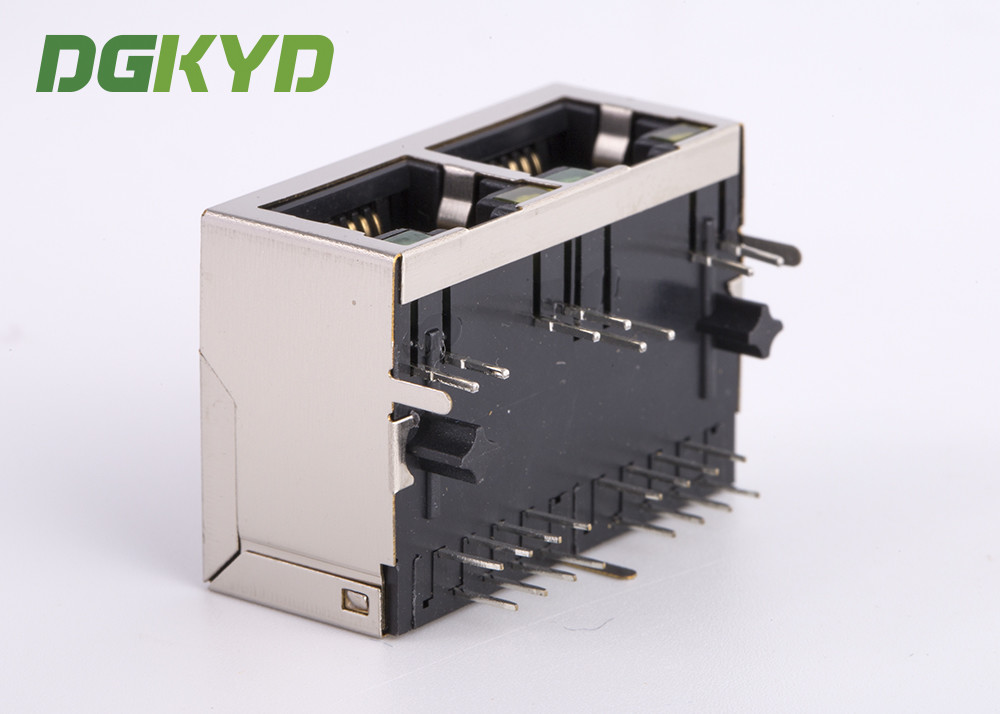

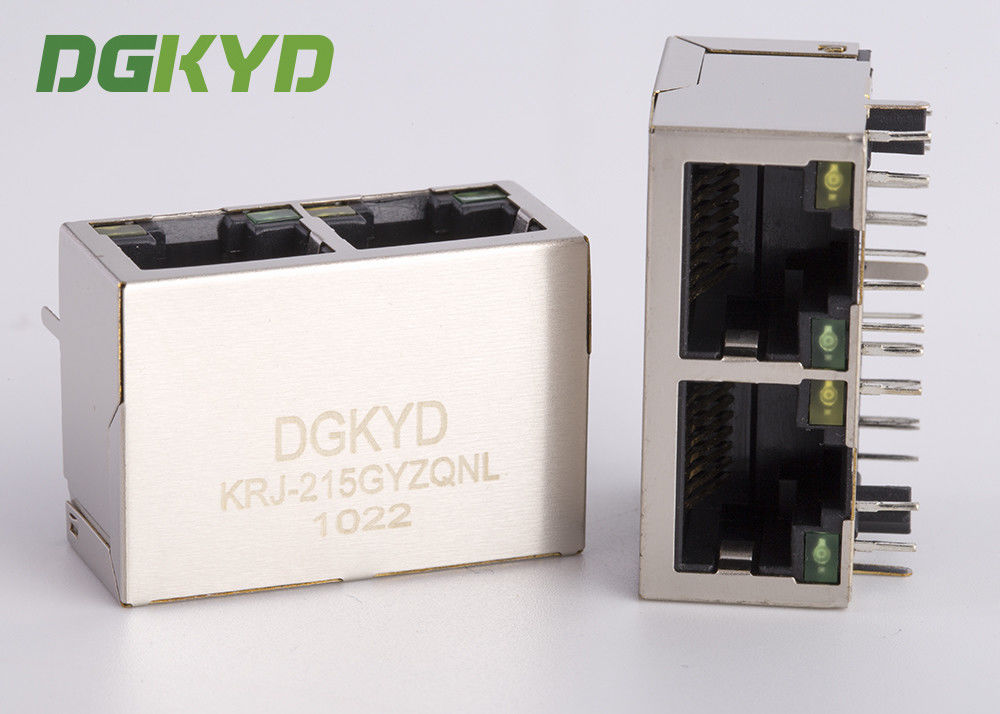

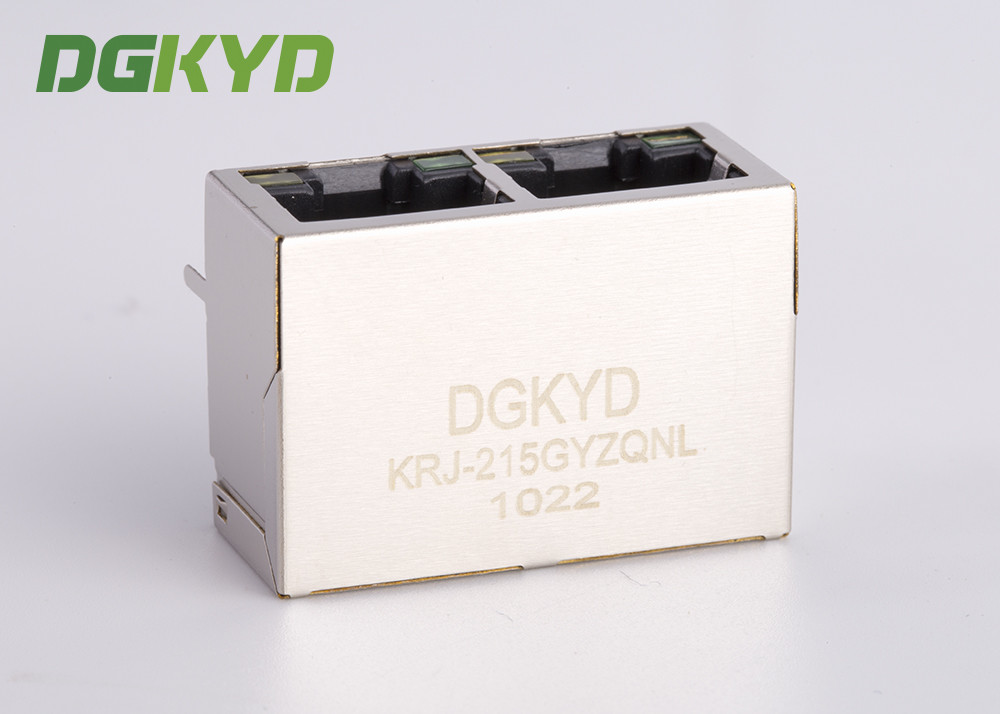

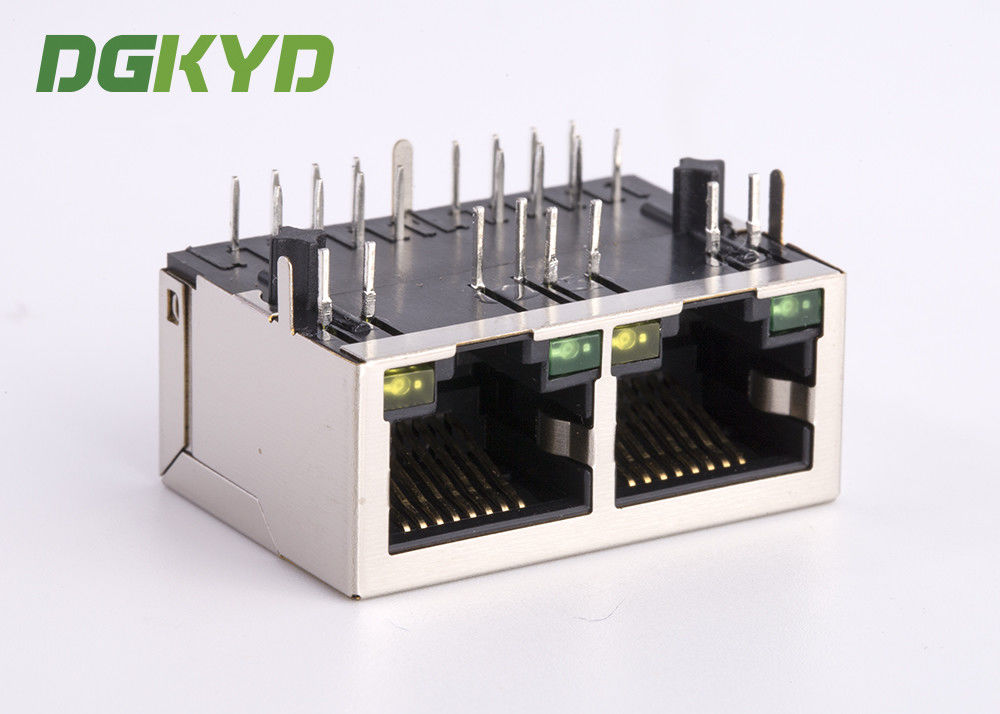

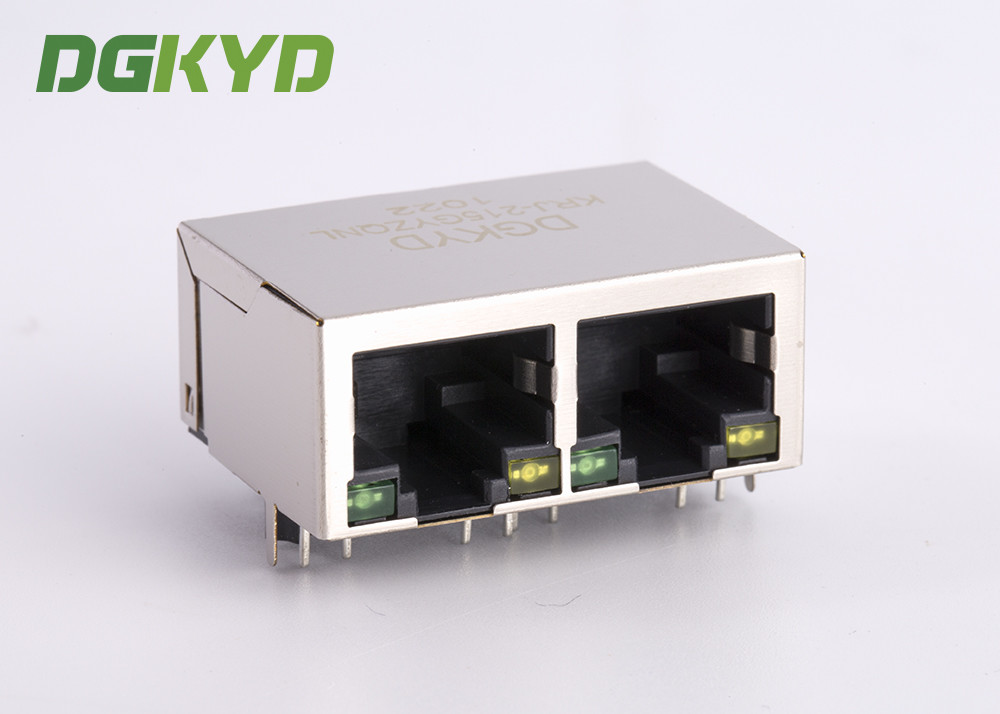

2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-215GYZQNL

Detail Information

Feature: High Performance,magnetic Product Name: RJ45 Ethernet Jack
LEDS/EMI Fingers: Custom As Your Need Gender: Female RJ45 Jack
Application: Lan,bridge,PC,router,usb Hub Network Rj45 RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP
High Light:

dual port rj45 connector

,

dual port rj45

,

2 Port RJ45 Ethernet Connector

Product Description

Switch jack Integrated magnetics 8P8C RJ45 Ethernet Connector Led Tab Down 2 Port



Descriptions:

  • 10/100Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) with LEDS
  • Double port 1X2 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8

2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch 02 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch 12 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch 2



Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customerfirstly ,100% test, 0 defect, short lead time are our best advantages
