Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX for Router DGKYD111B144GWA1DPQ

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD111B144GWA1DP

Detail Information

LEDS/EMI Fingers: Custom,as Your Need Product Name: RJ45 Ethernet Connector
Gender: Female RJ45 Jack Application: Lan,bridge,PC,router,usb Hub Network Rj45
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Feature: Power Over Ethernet
Operation Temperature: -40°C~+85°C Storage Temperature: -40°C~+85°C
LED Option: No Transformer: With Transformer
Highlight:

rj45 ethernet port

,

multi rj45 connector

,

Integrated RJ45 Cable Connector

Product Description

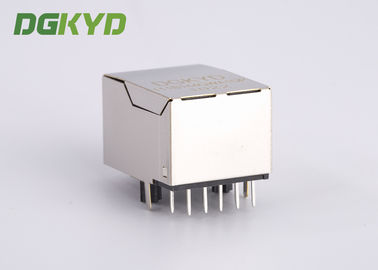

Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX for Router DGKYD111B144GWA1DPQ

Product Specification Document
DGKYD111B144GWA1DPQ.pdf

Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω

Parameters

Part Number DGKYD111B144GWA1DPQ Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/ BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  9
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0


• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages.

Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX  for Router DGKYD111B144GWA1DPQ 0

Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX  for Router DGKYD111B144GWA1DPQ 1



Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX  for Router DGKYD111B144GWA1DPQ 4

Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX  for Router DGKYD111B144GWA1DPQ 5





Integrated Magnetics RJ45 Cable Connector PoE++ 10/100Base-T / TX  for Router DGKYD111B144GWA1DPQ 6
