Single Port SFP Connector RJ45 Tab Up Transformer For Network Switch

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1001USB2NL

Detail Information

High Light:

KRJ 1001USB2NL SFP Connector RJ45

,

1x1 SFP Connector RJ45

,

1x1 Single Port RJ45 Connector

Product Description

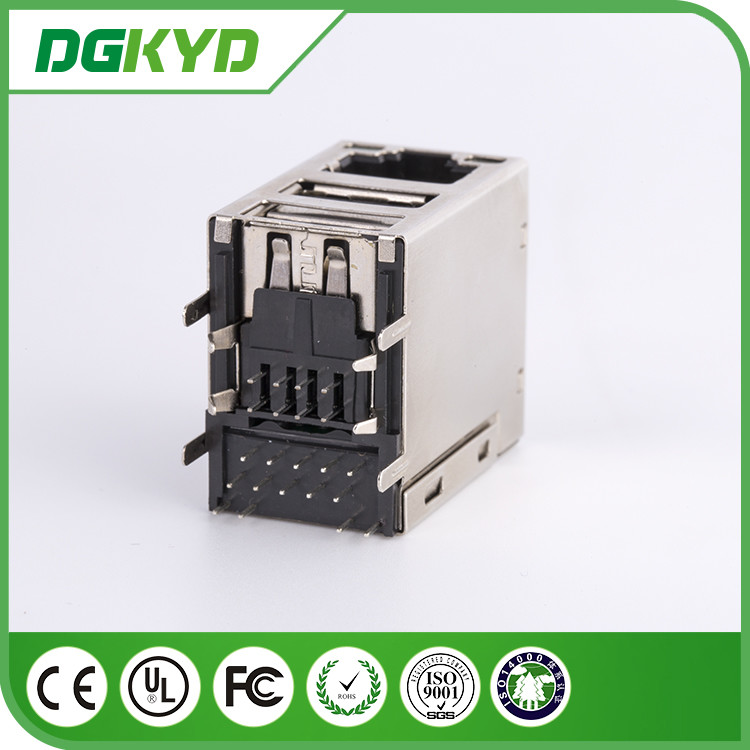

Single Port SFP Connector RJ45 Tab Up Transformer For Network Switch



10 / 100 / 1000 Base Single Port RJ45 USB Connector Tab Up Transformer for Network Switch



1x1 Tab Up Transformer RJ45  With Double USB  KRJ-1001USB2NL without EMI(10/100/1000M)



Descriptions:

  • 10/100/1000Base-Tx RJ45 single port 1X1 Vertical with LEDS with 2 USB
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range: 0℃ to +70℃
  • Storage temperature range: -40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded: YES
  • Rohs compliant
  • Length: 29.0mm
  • LEDS: YES
  • EMI finger: NO
  • LEFT: Green,RIGHT:Yellow
  • Usage: KRJ-1001USB2NL

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications:



.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC



Applications:



• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.gold finger insert and pull life should be 750 times above.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages

Single Port SFP Connector RJ45 Tab Up Transformer For Network Switch 0Single Port SFP Connector RJ45 Tab Up Transformer For Network Switch 1Single Port SFP Connector RJ45 Tab Up Transformer For Network Switch 2
