1000base 1 X 2 port RJ45 cat6 ethernet connector with internal transformer for Network Module

Name: 1000base 1 X 2 port RJ45 cat6 ethernet connector with internal transformer for Network Module
Brand: DGKYD
SKU: KRJ-201QNL
Rating: 4.6 (155 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-201QNL

Detail Information
Product Name:	RJ45 Modular Jack	Gender:	Rj45 Receptacle
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Shielded RJ45 Network Port
OEM/ODM:	Yes	Type:	Multi Pin Rj45 Magjack
High Light:	dual port rj45 , dual rj45 connector , 1 X 2 port RJ45 ethernet connector

Product Description

1000base Custom 1 X 2 Transformer RJ45 Modular Jack without led for Network Module

P/N:KRJ-201QNL

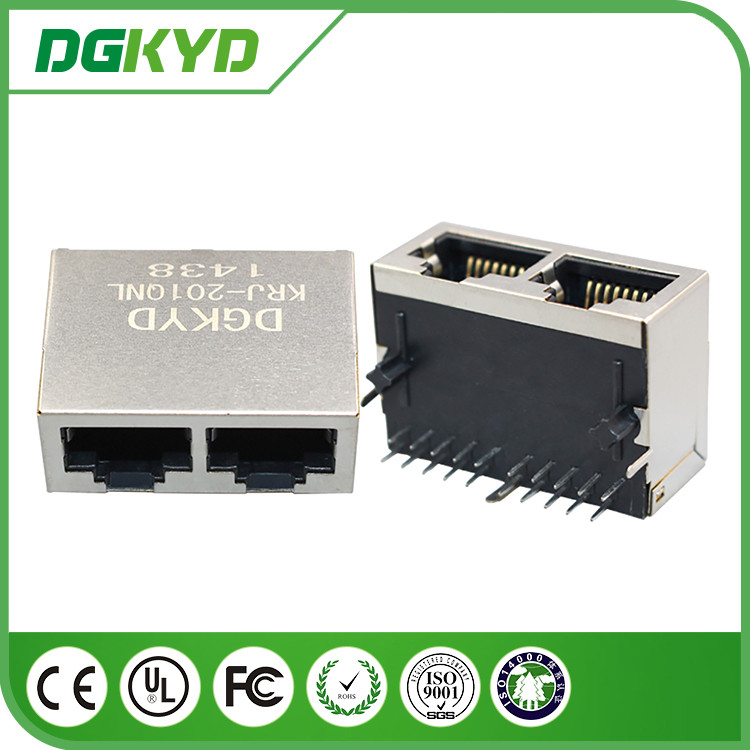

1000base 1 X 2 port RJ45 cat6 ethernet connector with internal transformer for Network Module 0

Descriptions:

10/100/1000Base-Tx RJ45 2 port 1X2 Side Entry without LED.
Double port 1X2 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:10
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS:no
EMI finger:NO
Usage:KRJ-201QNL

Applications:

Integrated RJ45 connector main used to :

10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA, DSL／ADSL and so on.

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
