Shield tab down cat 5 dual port ethernet socket RJ45 connector

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S1X2NL

Detail Information
Product Name:	RJ45 Modular Jack	Speed:	Cat 3/5/6
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Shielded RJ45 Network Port
OEM/ODM:	Yes	Type:	Rj45
High Light:	dual port rj45 connector , dual rj45 connector , dual port ethernet RJ45 connector

Product Description

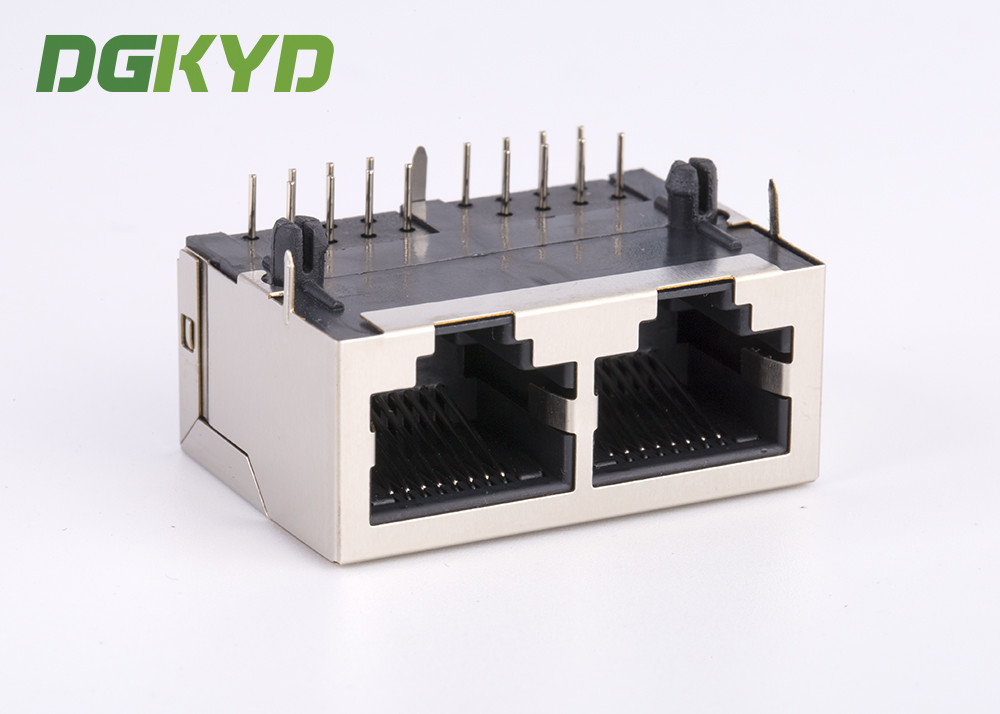

Tab Down 1x2 Port RJ45 Modular Jack W / O Led 8p8c

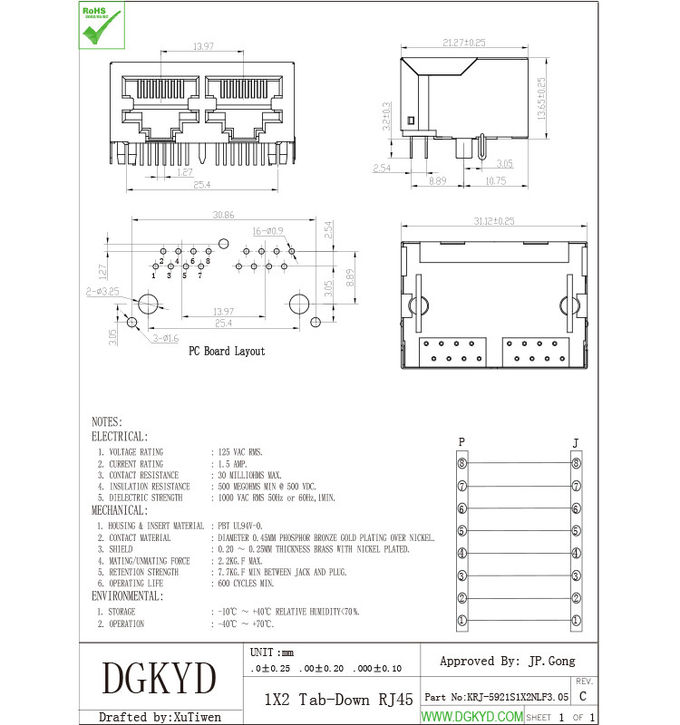

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:
• Integrated RJ45 connector main used to :
• 10/100/1000M net card, PCMCIA net card, USB Hub, network switch, router, fiber optic transceivers, optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer, telecommunication,MODEM,HomePNA, DSL／ADSL and so on.
