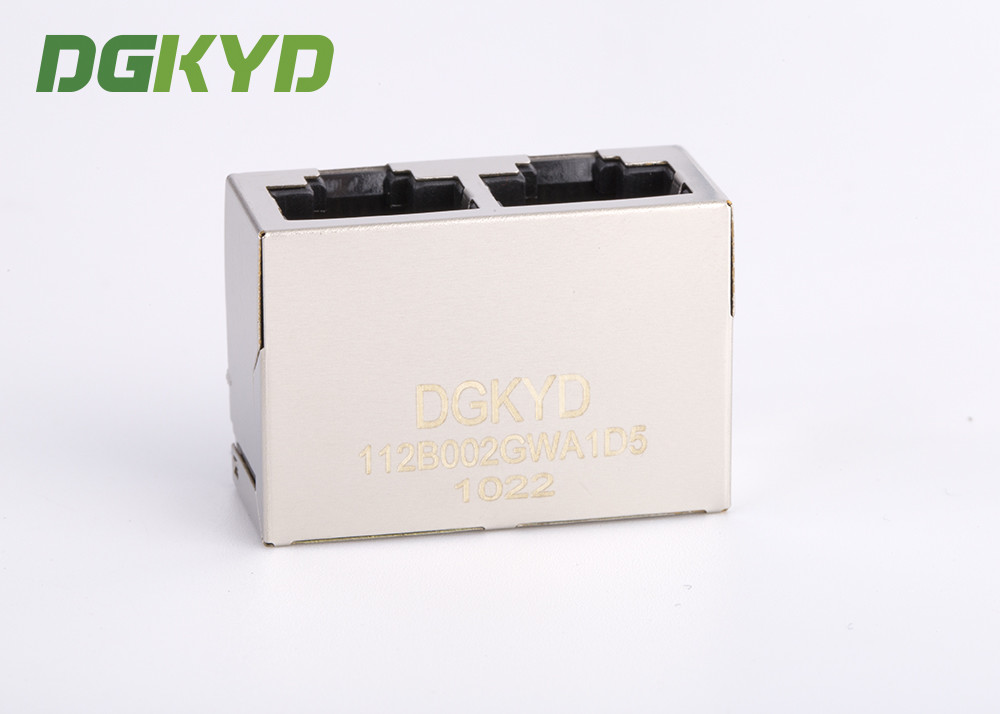

1 X 2 Port Integrated Magnetic RJ45 Modular Jack 100BASE Without LEDS

1 X 2 Port Integrated Magnetic RJ45 Modular Jack 100BASE Without LEDS

Product Details:
Place of Origin:	DongGuan of China
Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number:	DGKYD112B002GWA1D5
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Please contact us to get the latest price.
Packaging Details:	Tray in Carton
Delivery Time:	10 days
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	100K pcs/day

Contact Now

Detail Information
Application:	Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc	Feature:	Shielded RJ45 Network Port
OEM/ODM:	Yes	Type:	Multi Pin Rj45 Magjack
Gender:	Rj45 Receptacle	Product Name:	RJ45 Modular Jack
Highlight:	dual port rj45 connector , dual rj45 connector , 1 X 2 Magnetic RJ45 Modular Jack

Product Description

1 x 2 Integrated Magnetic RJ45 Modular Jack 100BASE Connector Receptacle No LEDS

Descriptions:

10/100Base-Tx RJ45 double port 1X2 Vertical without LED with side entry
Double port 1X2 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS:NO
EMI fingers:NO

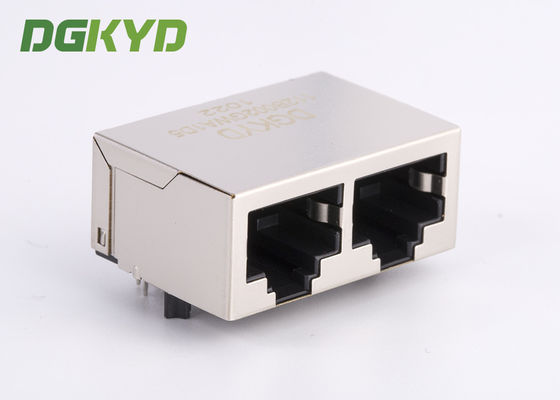

1 X 2 Port Integrated Magnetic RJ45 Modular Jack 100BASE Without LEDS 0

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

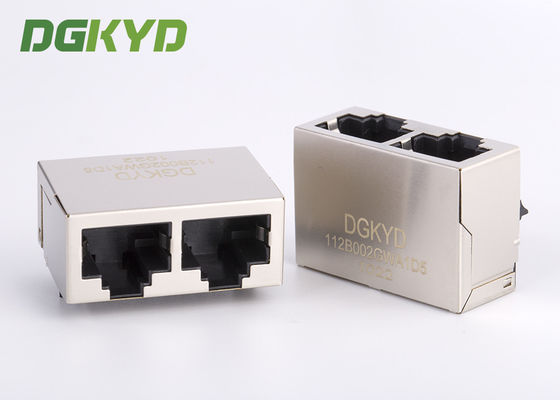

1 X 2 Port Integrated Magnetic RJ45 Modular Jack 100BASE Without LEDS 3

Tag:

dual port rj45 connector

dual rj45 connector

dual port rj45
