100 Megabit Dual Port RJ45 Connector With Isolation Transformer RJ45 For IP Phone

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-215WCNL

Detail Information
Performance Category:	CAT5E	PCB Mounting Style:	DIP
No. Of Port:	Dual Port	Connector Type:	RJ45 Female Jack
High Light:	dual port rj45 connector , dual port rj45 , RJ45 Connector With Isolation Transformer

Product Description

Router Transformer RJ45 for IP Phone , Dual Port RJ45 Connector

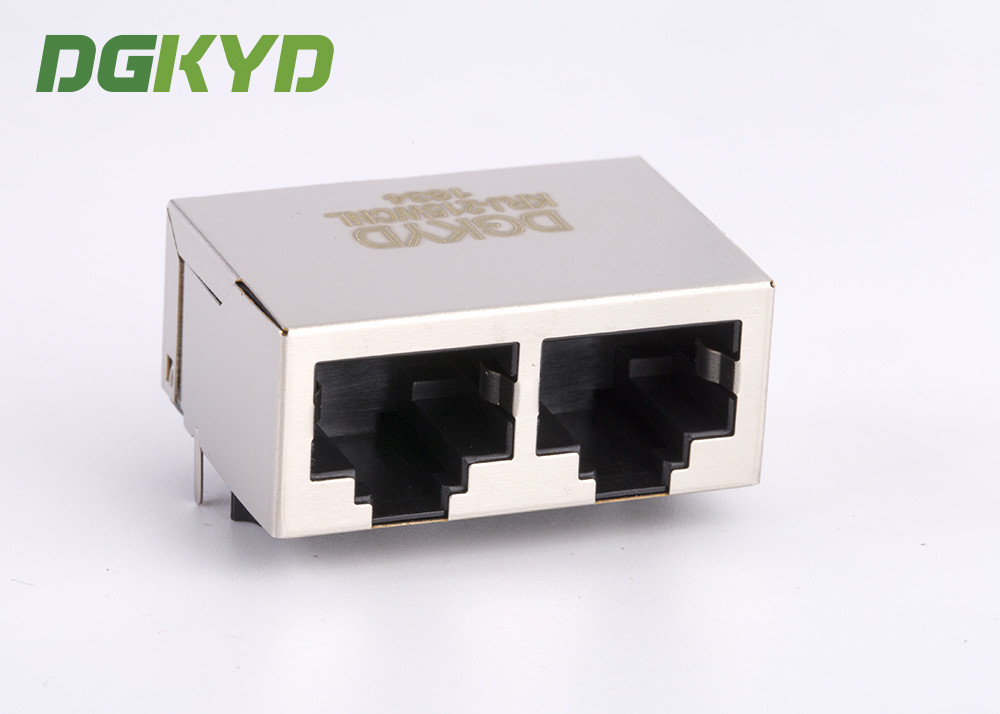

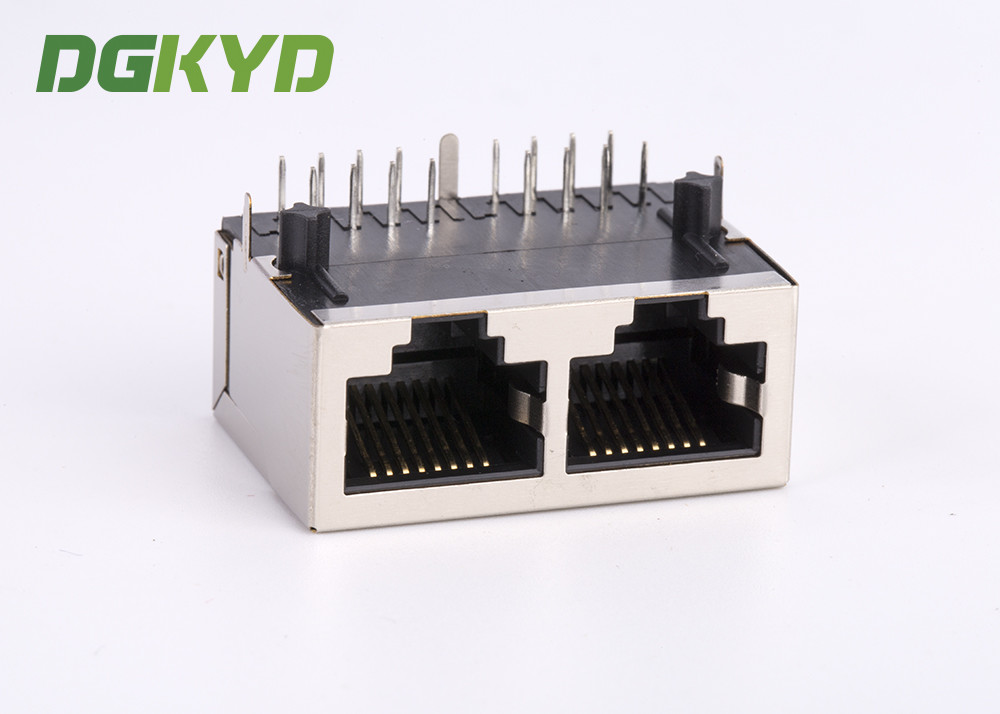

100 Megabit Dual Port RJ45 Connector With Isolation Transformer RJ45 For IP Phone 0

10/100Base-Tx RJ45 double port 1X2 Vertical without LED with side entry
Double port 1X2 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range : -40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS:NO
EMI fingers:NO
Usage:KRJ-215WCNL

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

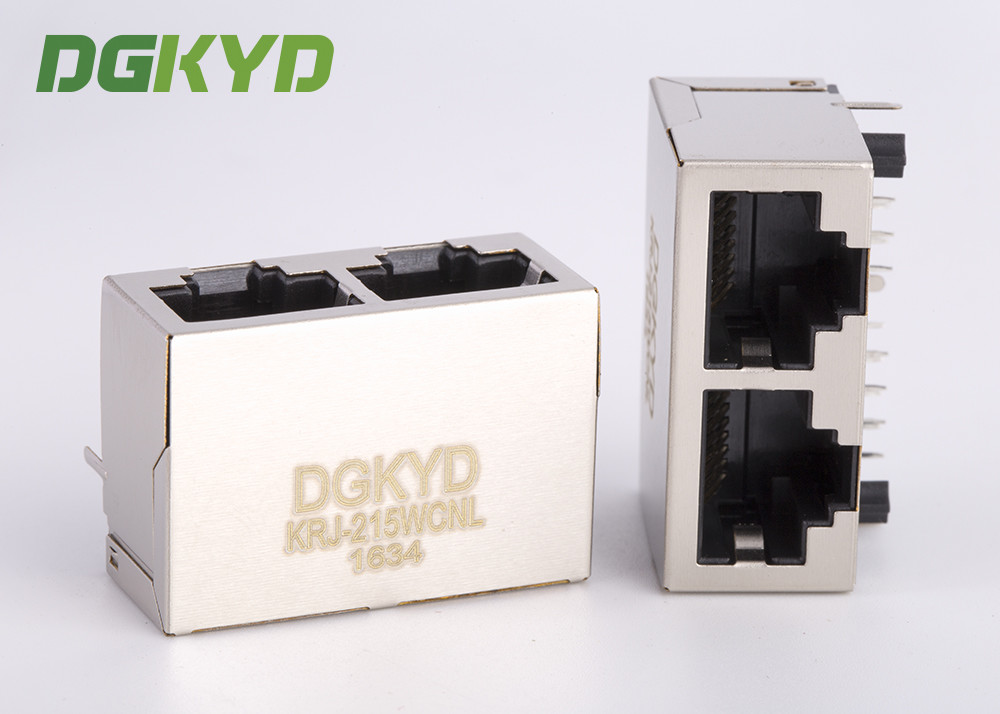

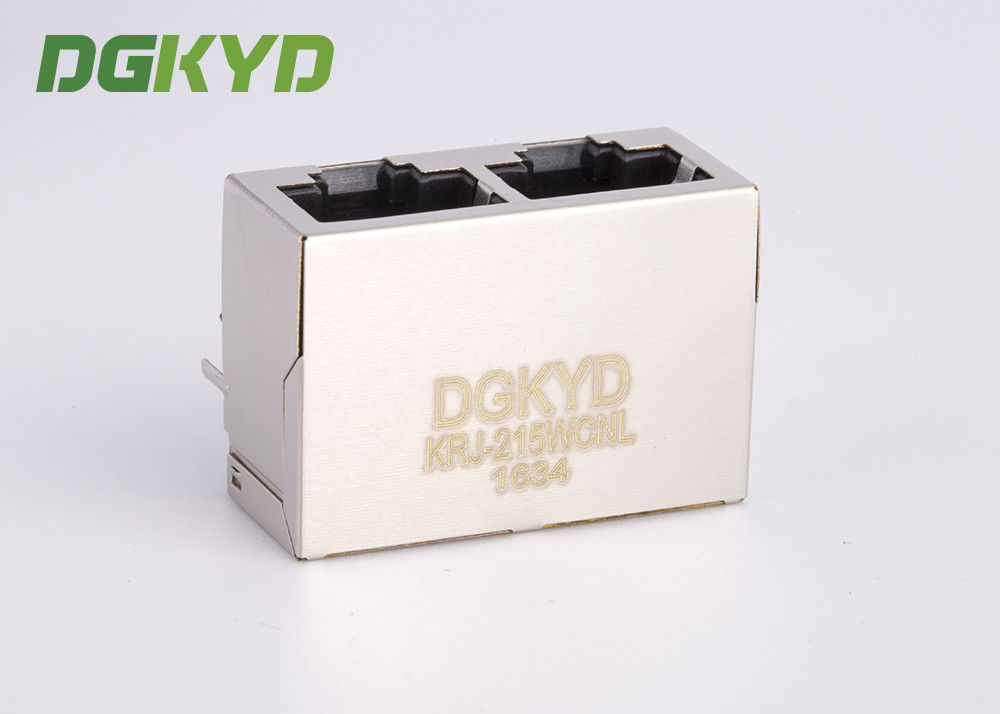

100 Megabit Dual Port RJ45 Connector With Isolation Transformer RJ45 For IP Phone 3

Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,

there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

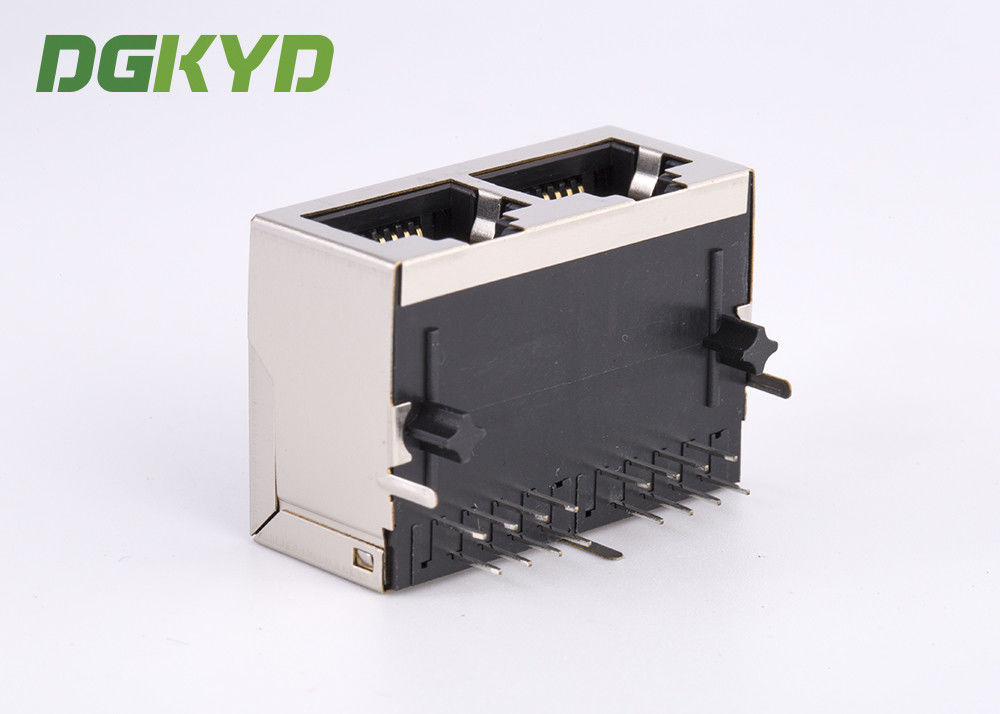

100 Megabit Dual Port RJ45 Connector With Isolation Transformer RJ45 For IP Phone
