RJ45 Single Port Filter Network Connector With Light And Shielding PBT DGKYD411Q008DF3A1D
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-320CNL |
|
Detail Information |
|||
| Housing Material: | PBT Polyester | Filter: | With Filter |
|---|---|---|---|
| Latch: | Tab Down | Transmision Speed: | Cat 6 |
| Plating: | Glod Plating 6u/15u/30u/50u | Length: | 21.3mm |
| EMI Finger: | YES | ||
| High Light: | panel mount rj45 connector,surface mount rj45 connector,RJ45 Single Port Integrated Magnetic |
||
Product Description
► Product Description

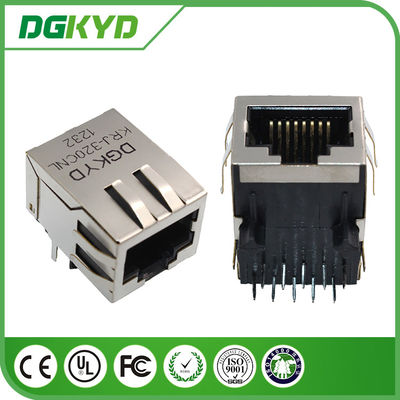

Factory price KRJ-320CNL 1000 Megabit Ethernet Integrated magnetic RJ45 Single Port jack
► Product Datasheet
|
Part Number
|
KRJ-320CNL
|
Brand
|
DGKYD/OEM/ODM
|
|
Place of Origin
|
Guangdong of China
|
Certification
|
CE /UL/FCC/Reach/RoHS
|
|
Product Type
|
Connector-Modular
|
Connector Style
|
Jack
|
|
Jack Type
|
RJ45
|
Connector Type
|
Modular Jack
|
|
Latch Style
|
Standard
|
Latch
|
Down
|
|
Filter
|
With Filter
|
LED Option
|
Without LED
|
|
LED Color
|
N/A
|
Panel Stops
|
With Panel Stops
|
|
Shielded
|
Metal Shielded |
Applies To
|
Printed Circuit Board
|
|
Performance Speed
|
10/100/1000 BASE-T
|
Grounding Options
|
Panel Ground and PCB Ground
|
|
Port Configuration
|
Single
|
Number of Positions
|
10
|
|
Jack Configuration
|
1 x 1
|
Terminals per Port
|
8
|
|
Shield Material
|
Copper Alloy preplated with Nickel
|
PCB Mounting Orientation
|
Side Entry (Right Angle)
|
|
Contact Mating Area Plating Material
|
Gold 6u/15u/30u/50u
|
Contact Base Material
|
Phosphor Bronze
|
|
Solder Tail Contact Plating Material
|
Tin-Lead over Nickel
|
PCB Mounting Style
|
Through Hole
|
|
Termination Method to PC Board
|
Through Hole-Press-Fit
|
Board Lock
|
With/Without Board Lock
|
|
Housing Material
|
PBT Polyester
|
Housing Color
|
Black
|
|
Housing Material Temperature
|
Standard
|
UL Flammability Rating
|
UL 94V-0
|
Applications:
KRJ-320CNL main used to :
10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
For example;
► Detailed Images
► Product Drawing
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
