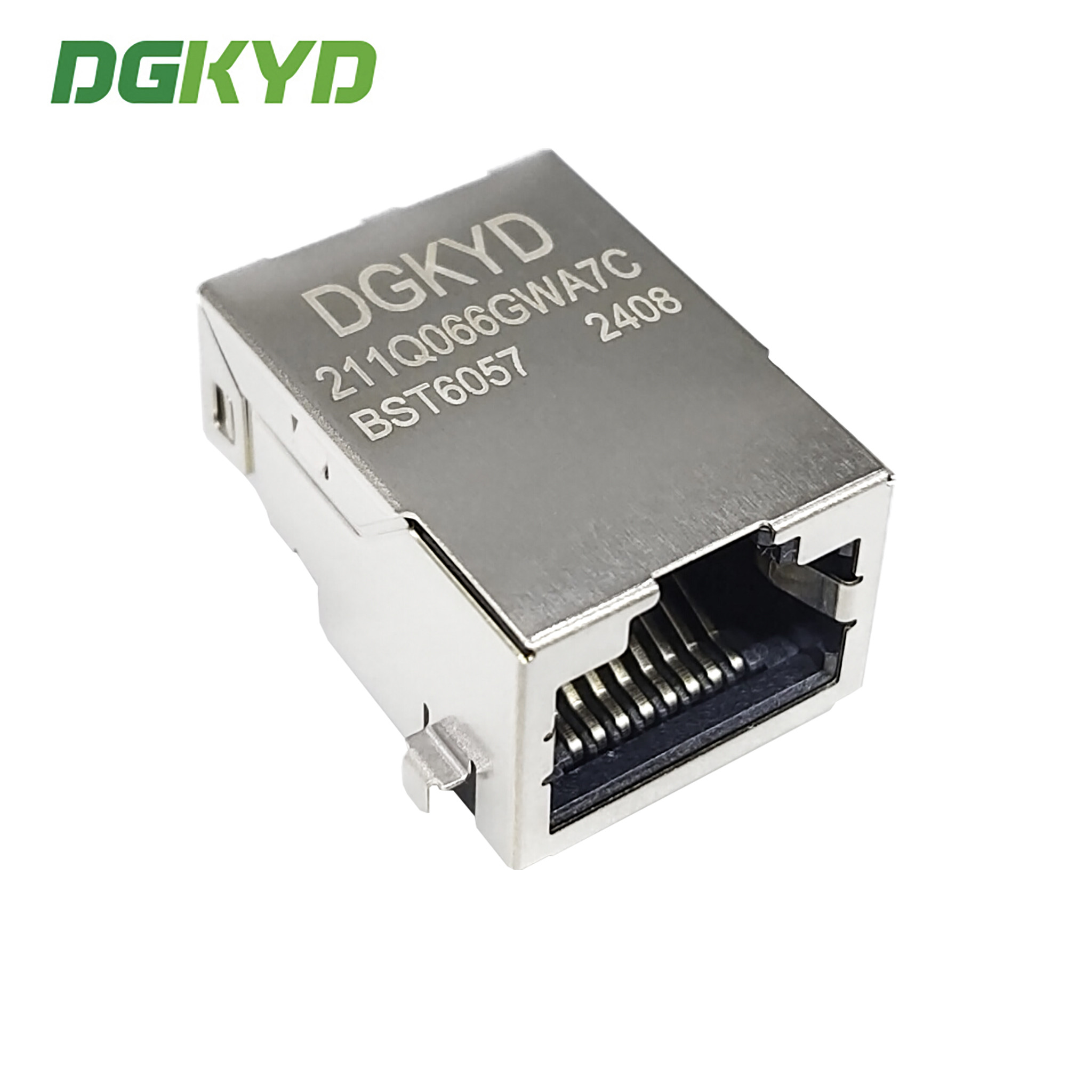

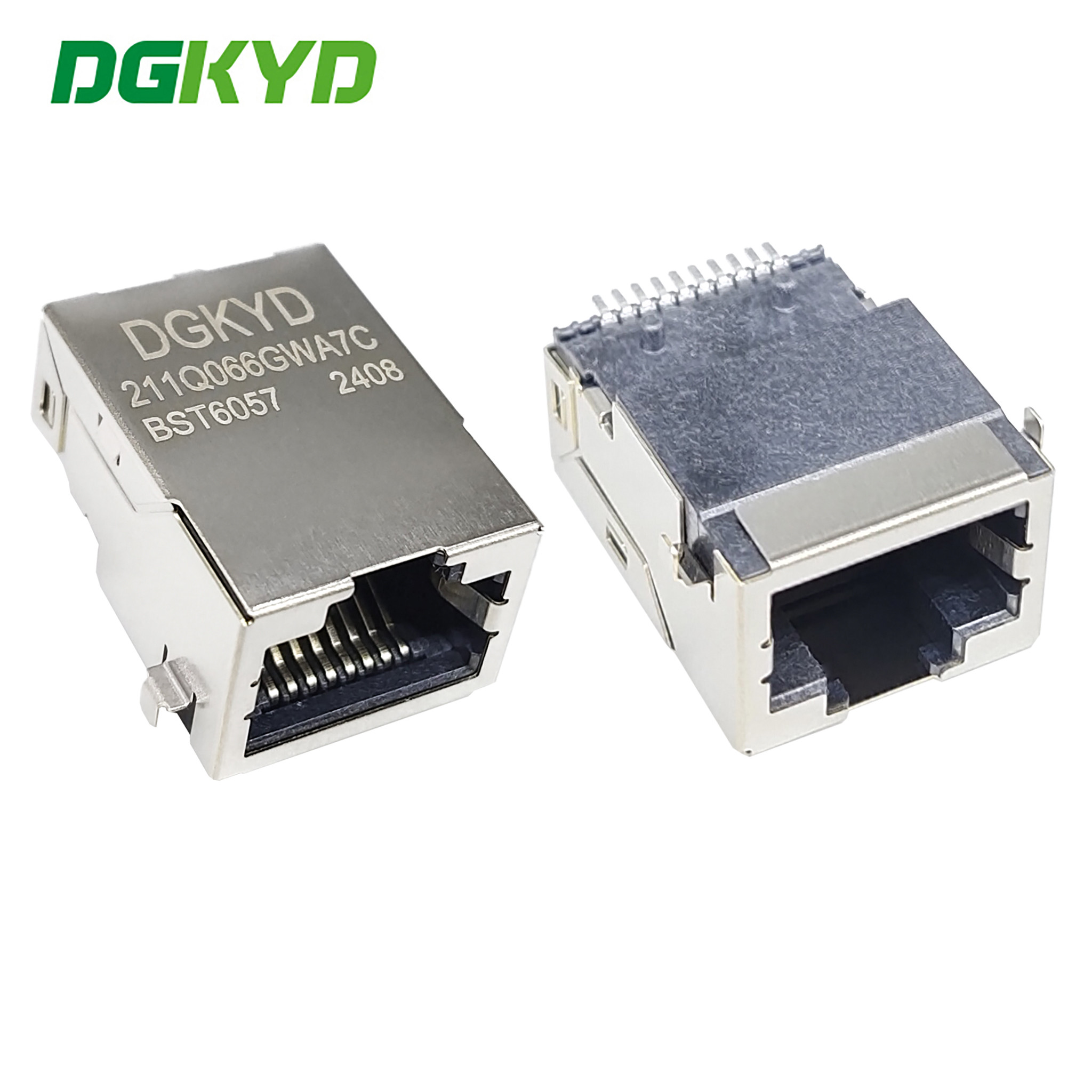

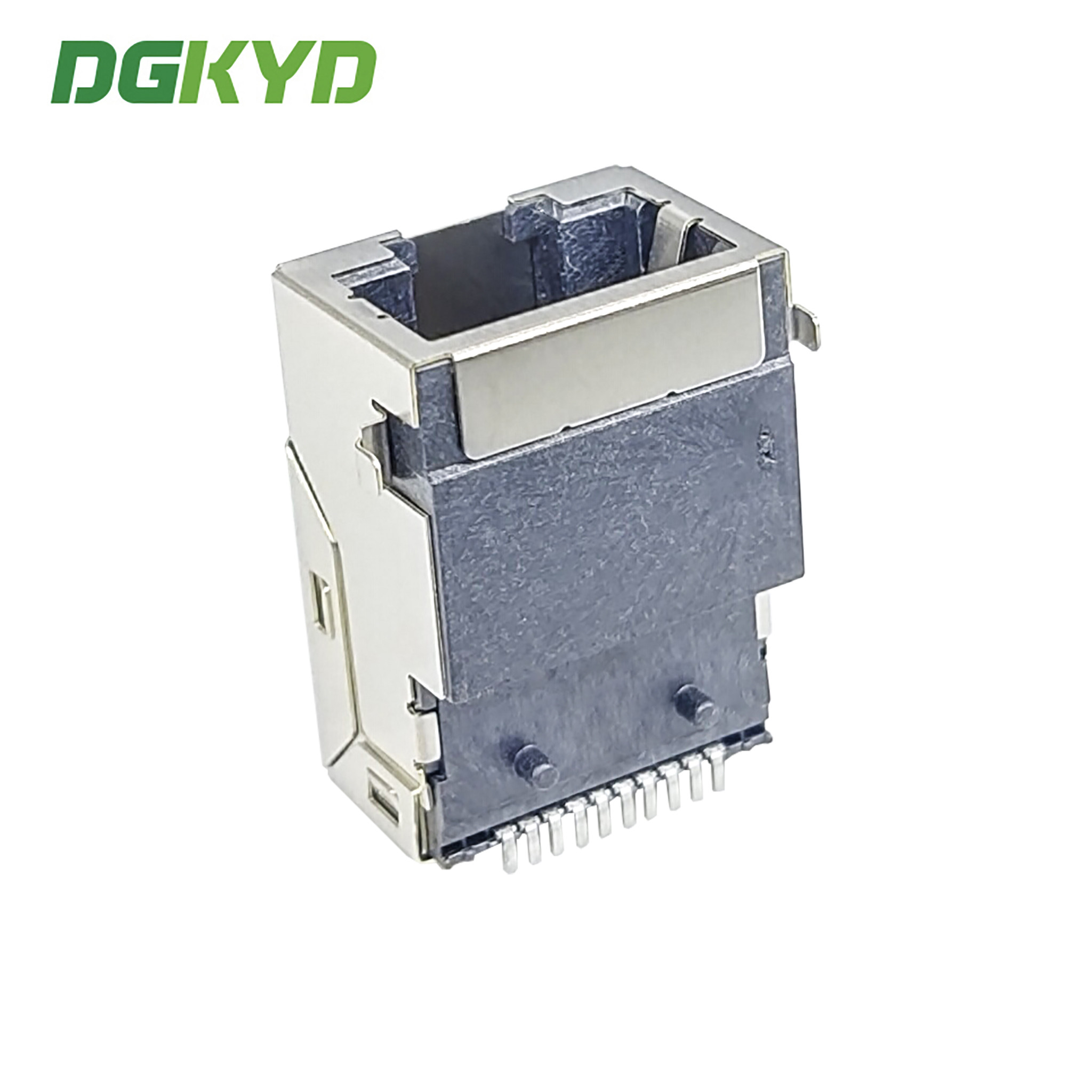

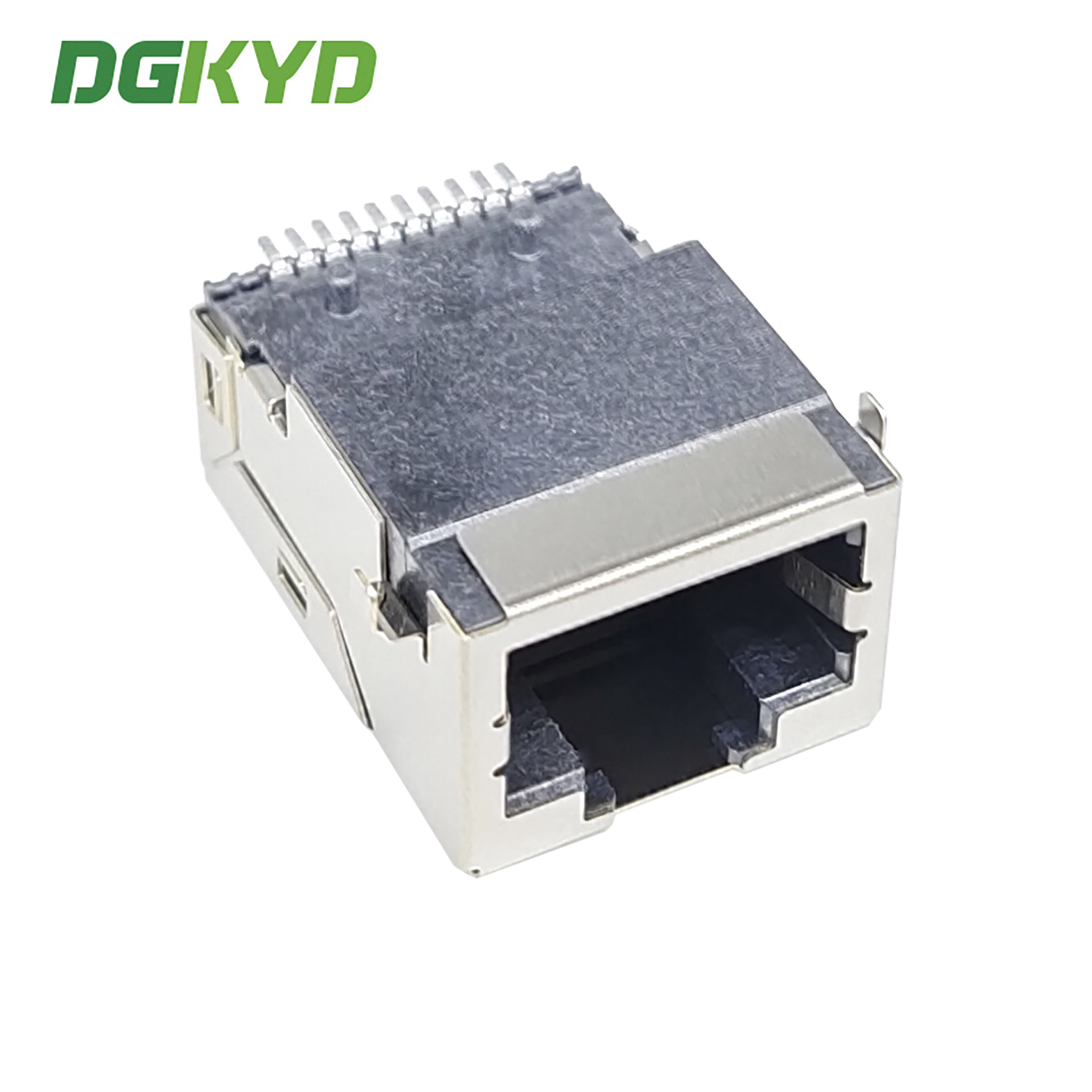

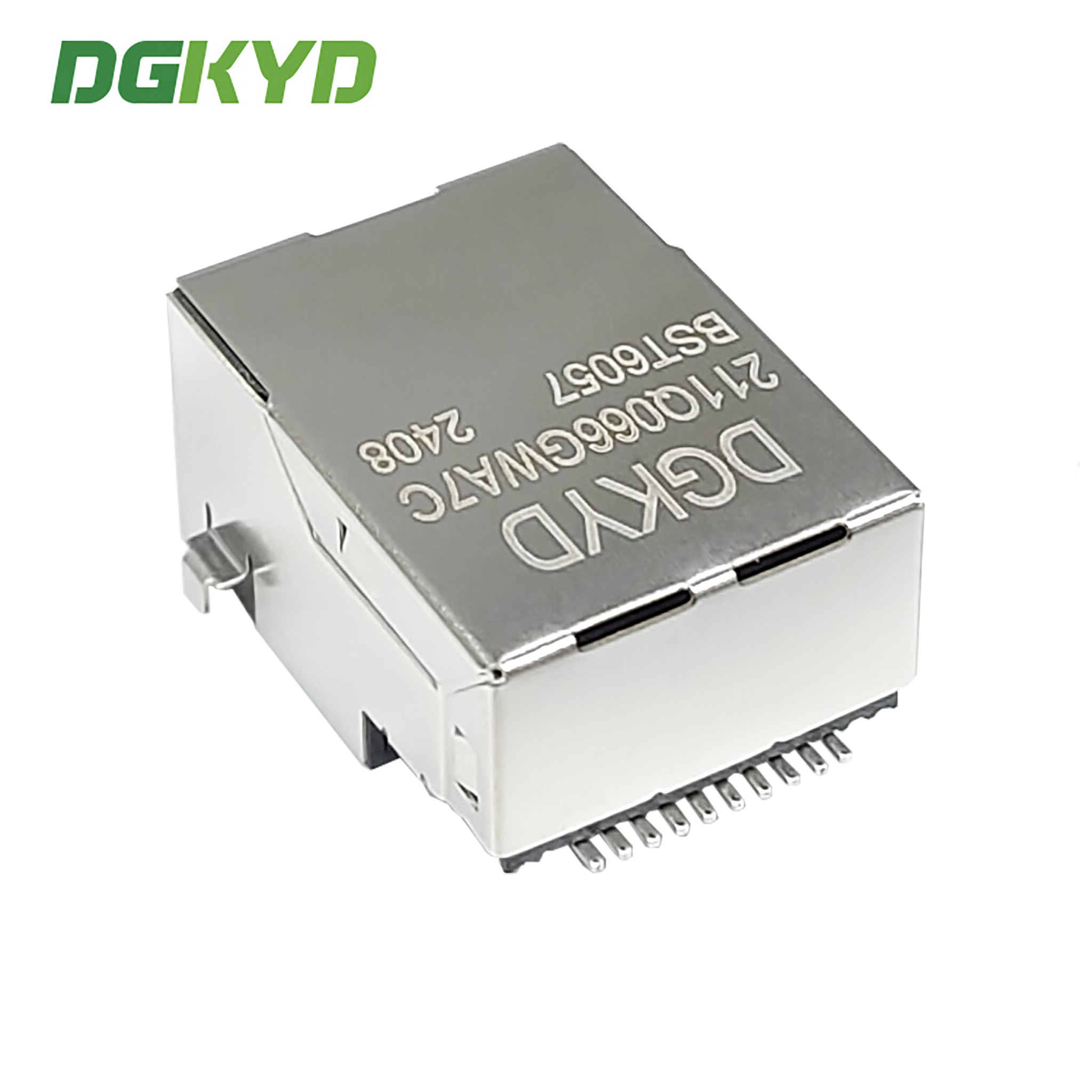

KRJ-SM015NL RJ45 Socket Patch Network Interface Integrated With 100M Network Transformer Communication Interface
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD211Q066GWA7CBST6057 |
|
Detail Information |
|||
| Application:: | Ethernet | Performance Speed:: | 0/100/1000BASE-T |
|---|---|---|---|
| PCB Mount:: | Right Angle SMD | Standard:: | IEEE802.3ab |
| Contact Plating: | 6u Glod Plating | Latch: | TAB-UP |
| Pin: | 10PIN | Filter: | With Filter |
| Housing Material: | LCP Black | Operation Temperature: | -40°C~+85°C |
| High Light: | DGKYD211Q066GWA7CBST6057,1000base Integrated Connector Patch,RJ45 Integrated Connector Patch |
||
Product Description
Product Specification Document
| Part Number | DGKYD211Q066GWA7CBST6057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down&Up |
| Filter | With Filter | LED Option |
Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | single ports | Number of Positions | 10 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
| Packaging Type | Tray |
|---|---|
| Panel Mount | Spring |
| Plating min - Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Ports | 1 |
| Positions / Loaded Contacts | 10/8 |
| Surface Mount Compatible (SMC) | No |
| Temperature Range - Operating | -40°C to +85°C |
| Termination Interface: Style | SMD |
