KGP2479SR - (POE) Safety Isolating Transformer 24 Pin SMD
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
---|---|---|---|
Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
---|---|---|---|
Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KT30639SR |
Detail Information |
|||
Product Type: | Ethernet Transformer | Encapsulation Method: | Roll Tape Packaging |
---|---|---|---|
PCB Mount Style: | SMD | Shape: | Rectangle |
PIN Quantity: | 6 PINS | Lan Transformer Speed: | 100m |
Operating Temperature: | -40-85°C Optional | Core Quantity: | 1 Sets |
Peak Temperature-5℃: | Over 30 S | Above 217℃: | 60~150 Seconds |
Average Ramp-up Rate: | 3℃/Second Max | Preheat Temperature And Soak Time: | 150~200℃,60~120 Seconds |
High Light: | KT30639SR Shielded Isolation Transformer,6 Pin Shielded Isolation Transformer,6 Pin Rj45 Isolation Transformer |
Product Description

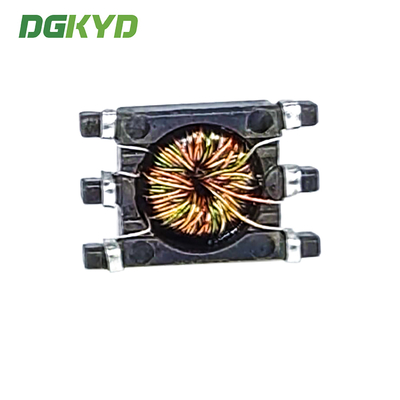

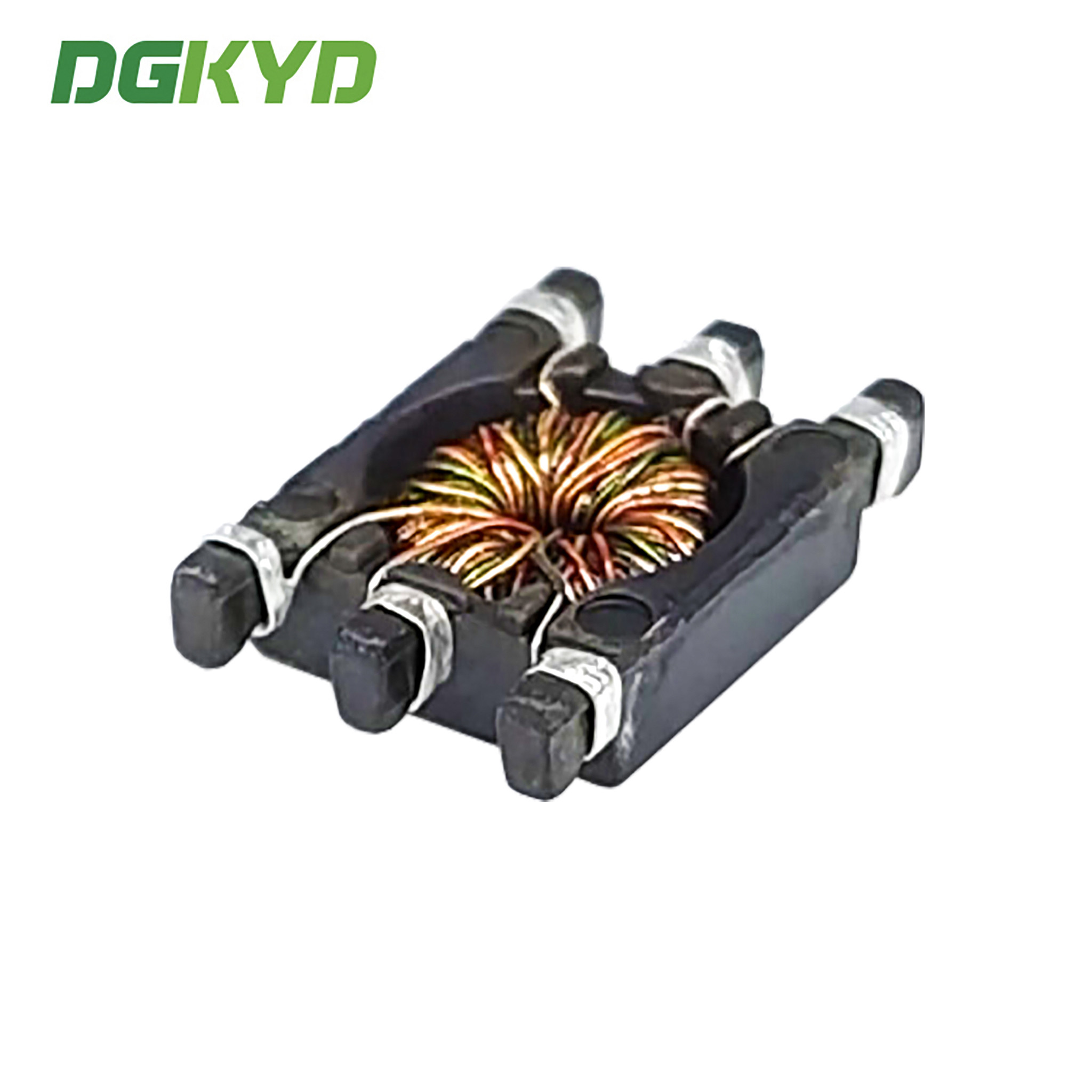

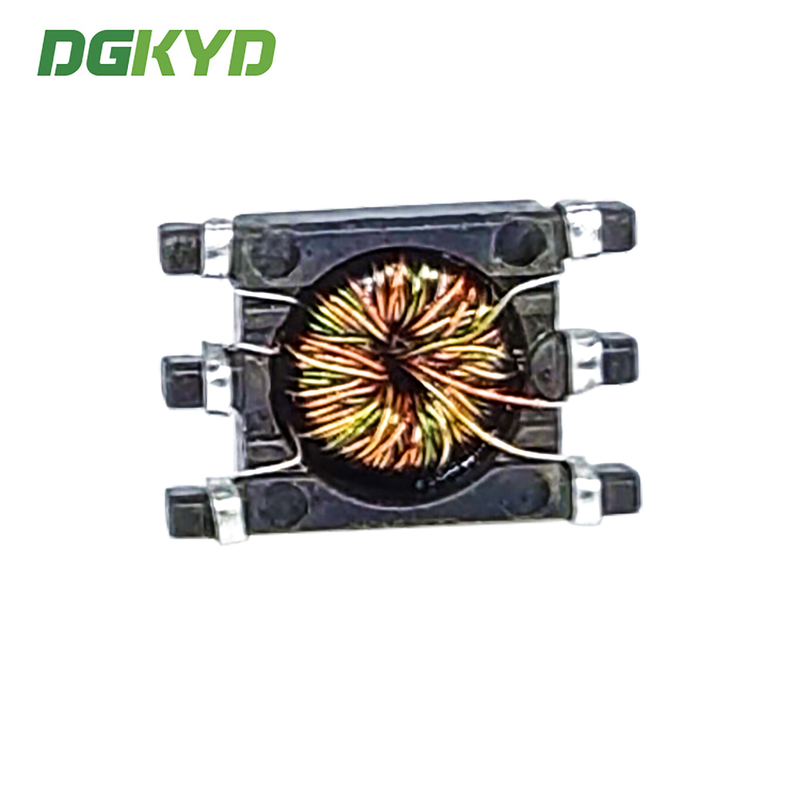

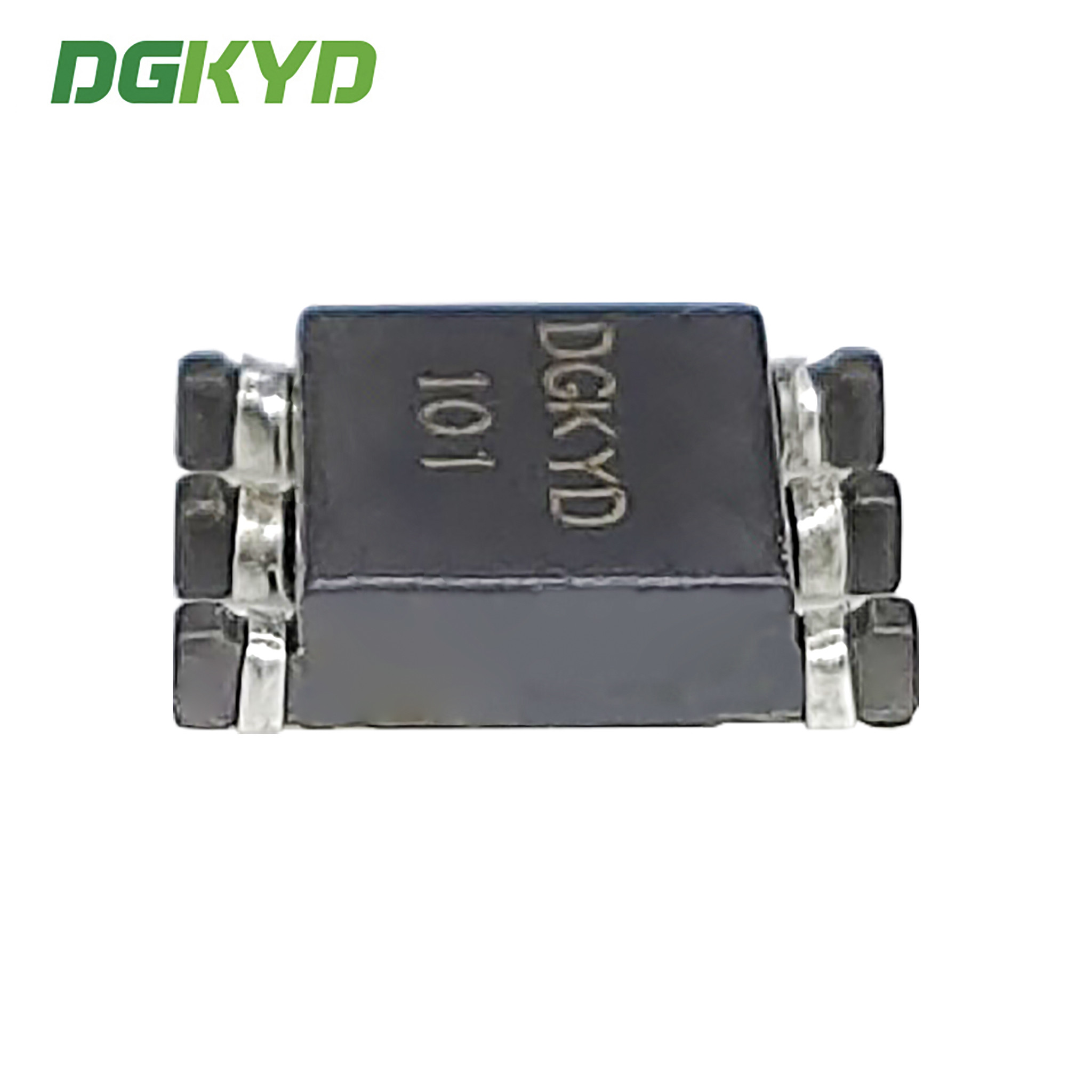

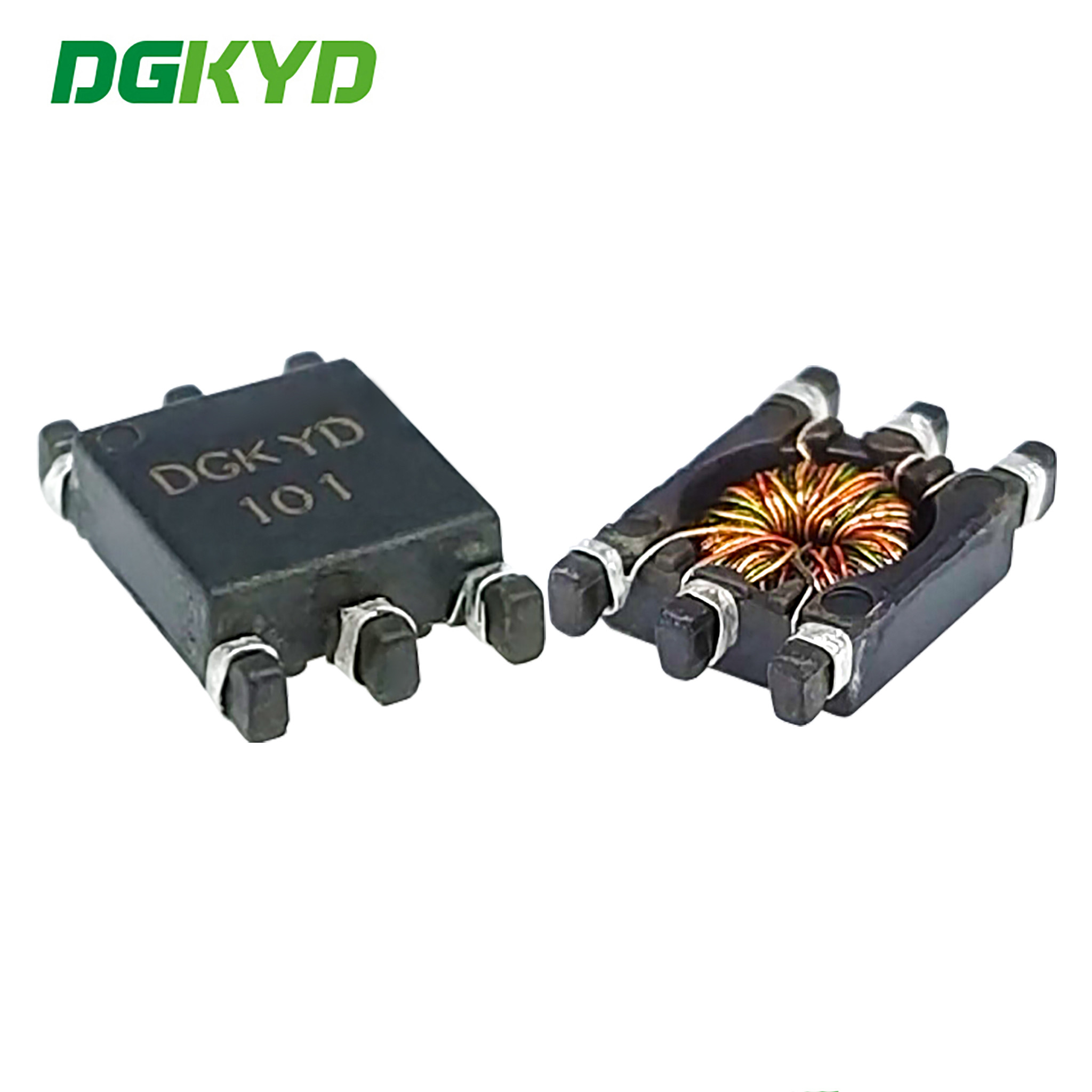

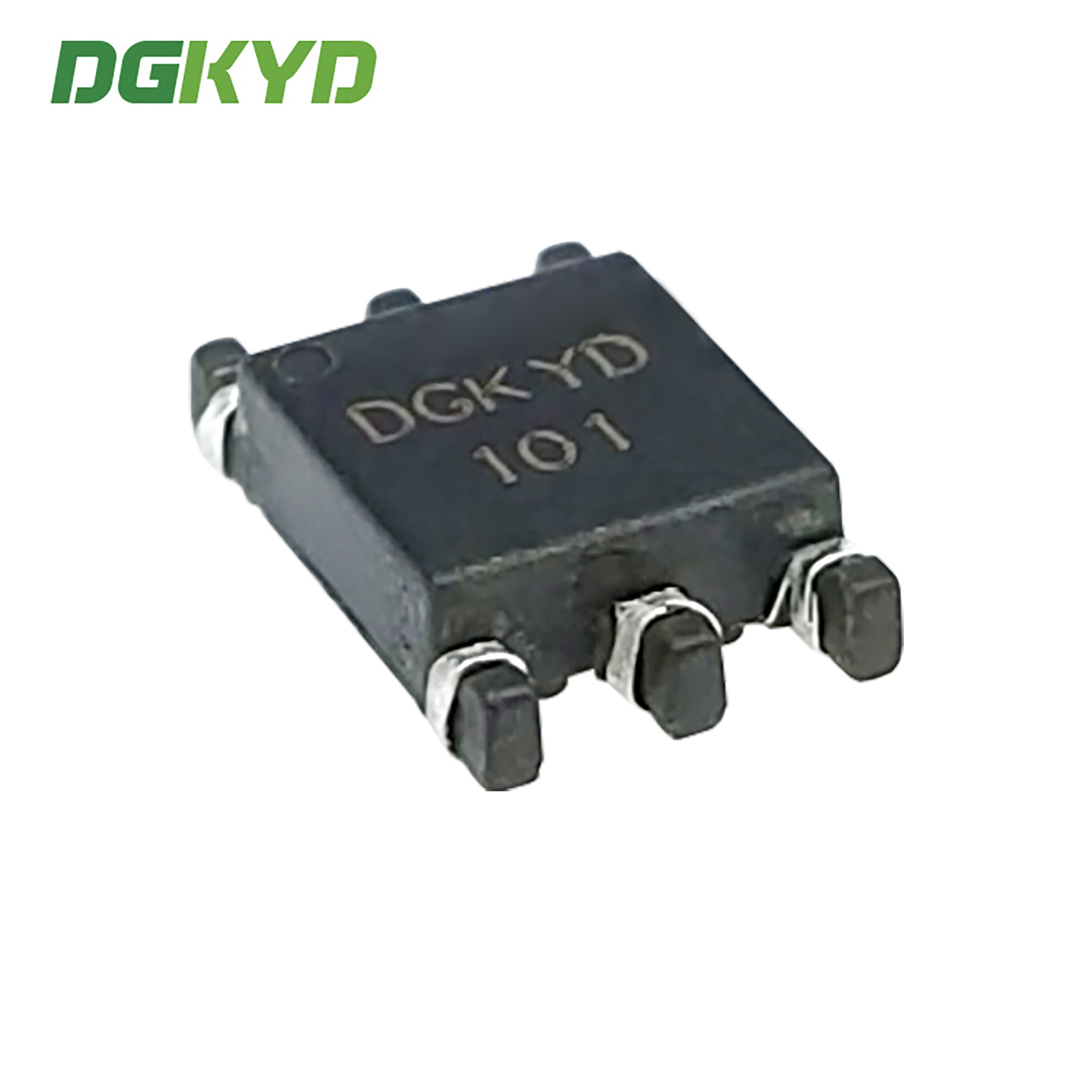

KT30639SR 6PIN SMD Network Transformer Ethernet Isolation Transformer Thin Network Transformer
Product Specification Document
Parameters
Part Number | KT30639SR | Brand | DGKYD/OEM/ODM |
Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
Product Type | Transformer Modular | Transformer Style | Discrete Transformer |
Core Quantity | 1 pairs | PIN quantity | 6 |
Lan Transformer Speed | 100M | Mounting Type | SMD |
1).Preheat Temperature and Soak Time: 150~200℃,60~120 Seconds
2).Average Ramp-up Rate: 3℃/Second Max
3).Above 217℃: 60~150 Seconds
4).Peak Temperature-5℃: Over 30 S
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
