RJ45 Connector 1X1 10P8C With Shielded Communication Interface DGKYD5621118GWA2D1Y3
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 4800Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD52T1188AB1A1DY1 |
|
Detail Information |
|||
| Product Type: | RJ45 Connector | Voltage Rating: | Jack |
|---|---|---|---|
| PCB Mount Style: | DIP | Shape: | Rectangle |
| Number Of Positions/Contacts: | 8p8c (RJ45, Ethernet) | Filter: | Without Filter |
| Latch: | TAB-UP | Dimension (mm): | 16.35*15.75*13.45（mm） |
| Gold Plating On Contact Pins: | G/FU | Operating Temperature: | - 40 ℃ ~ 85 ℃ |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | ||
| High Light: | 8P8C Rj45 Plug Connector,Rj45 Plug Connector Without Light Strip |
||
Product Description

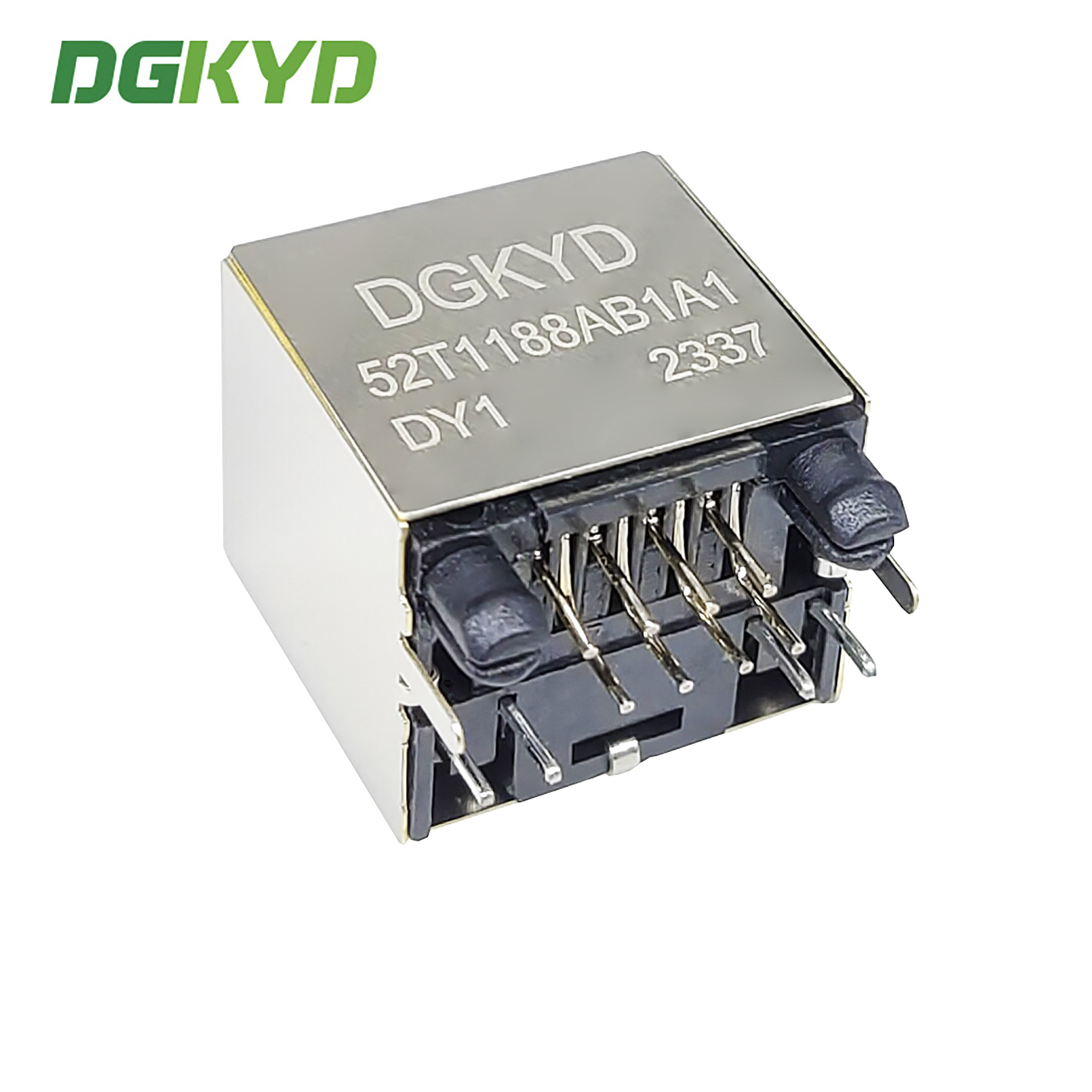

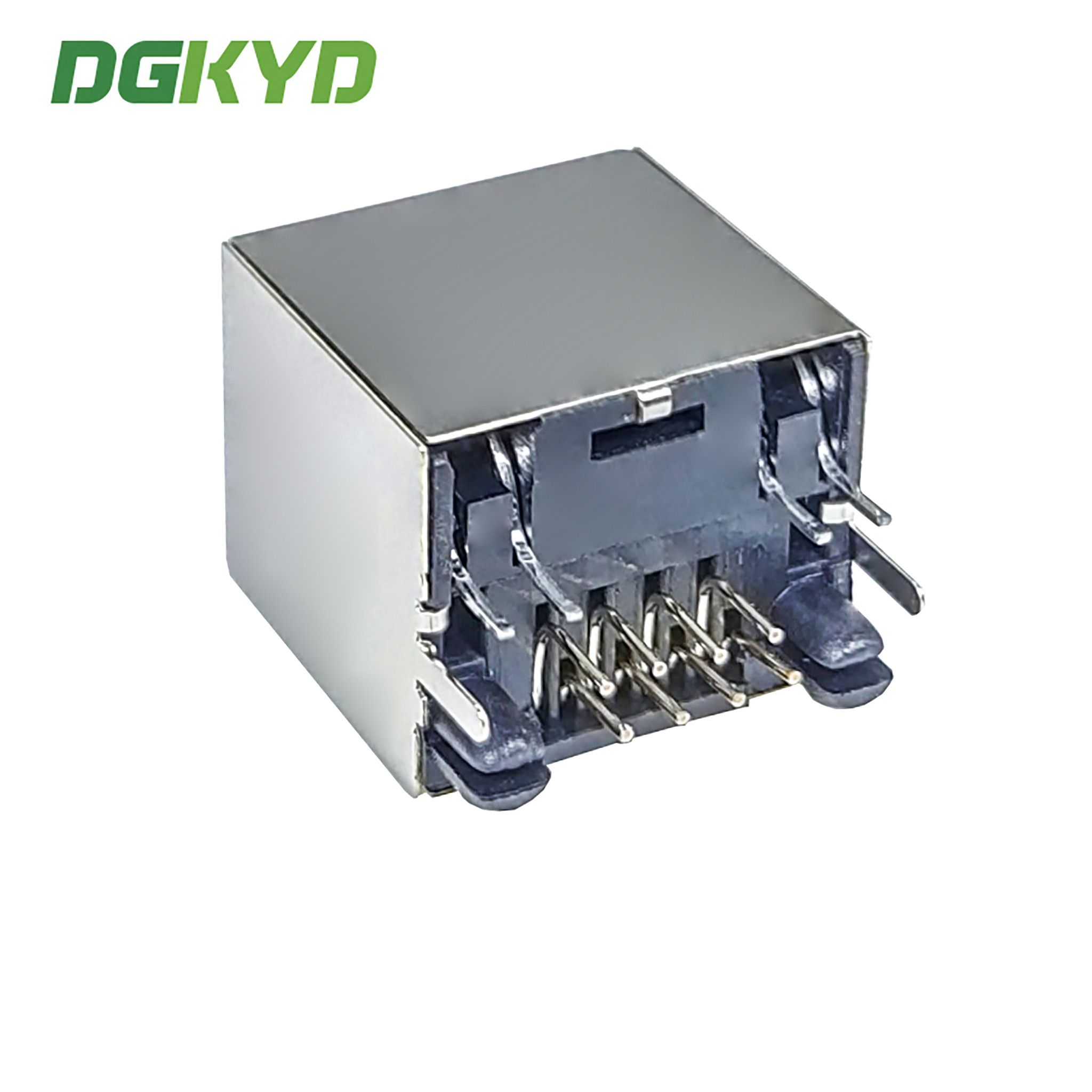

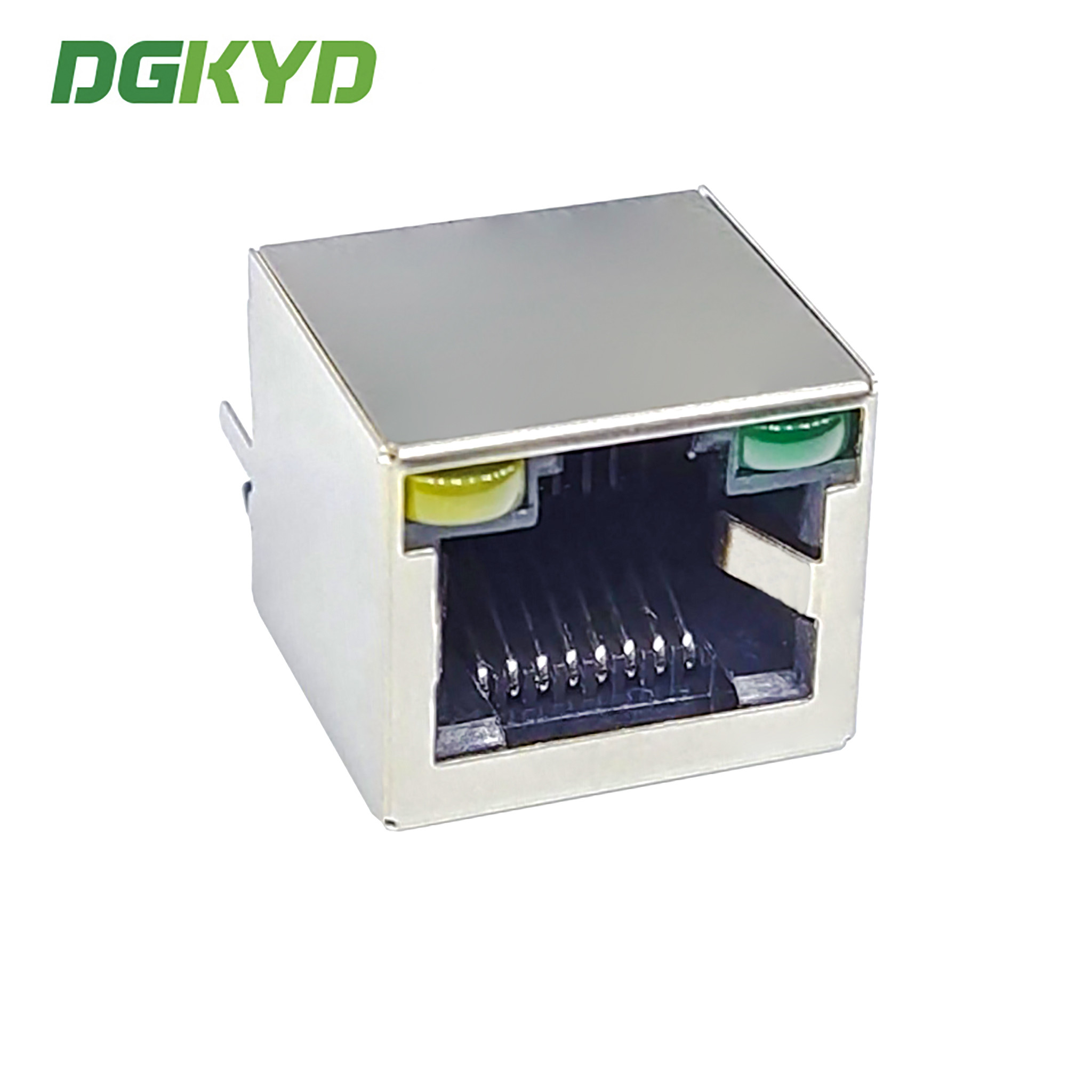

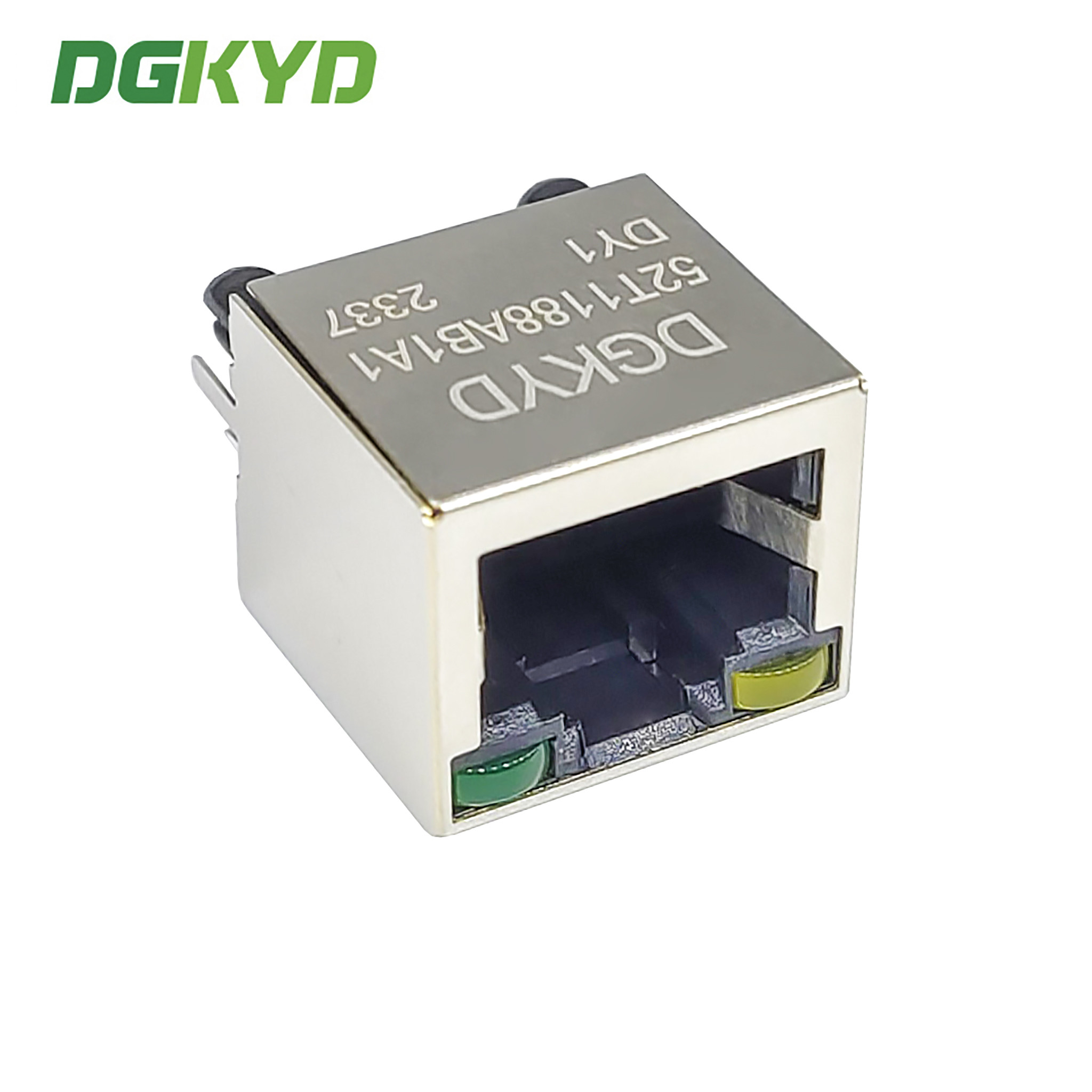

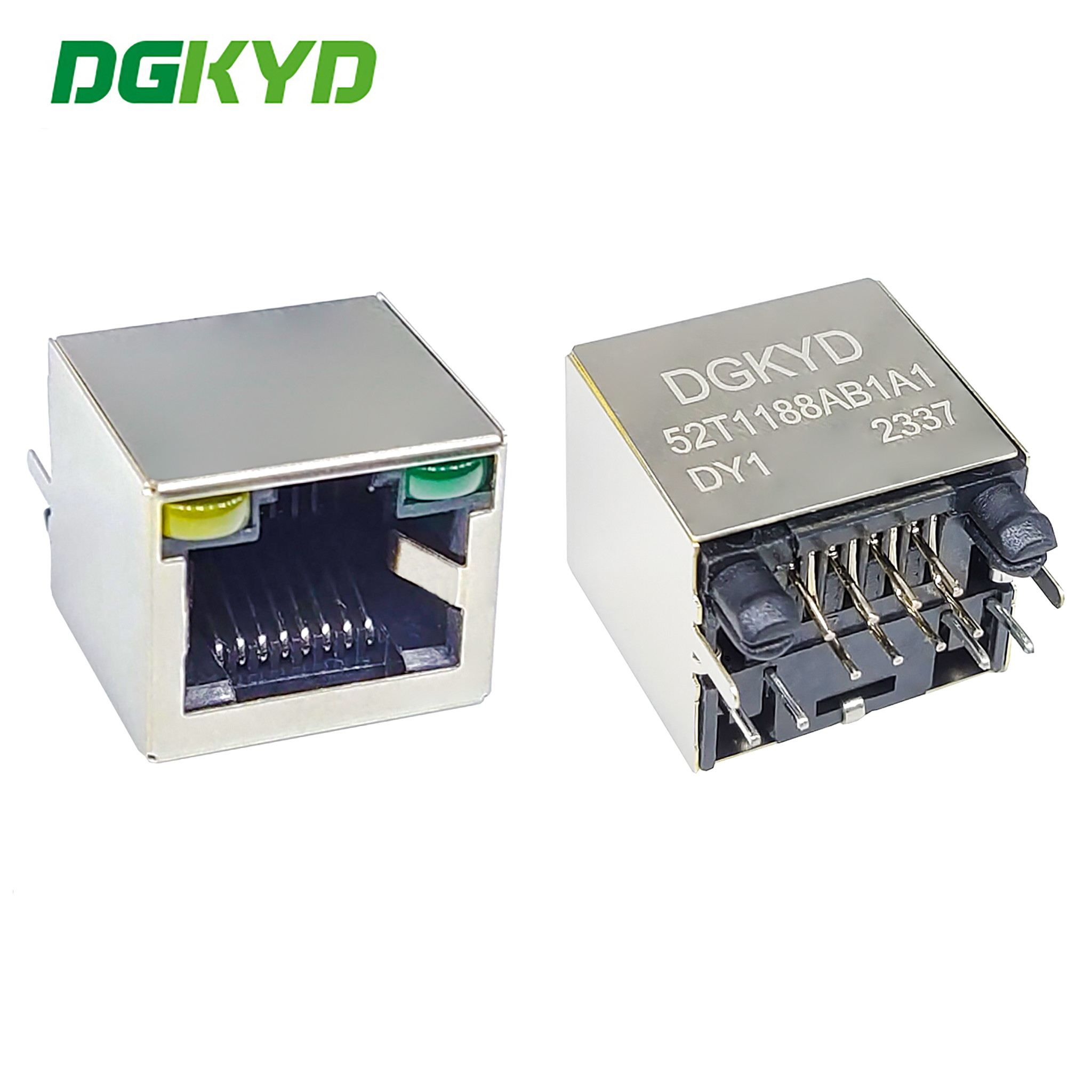

DGKYD52T1188AB1A1DY1 8P8C RJ45 Connector 180° Vertical Interface Without Light Strip Shielding Connector Empty Package
Product Specification Document
DGKYD52T1188AB1A1DY1.pdf
Parameters
| Part Number | DGKYD52T1166GWA1DY1008 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
