KH1629SR 100BASE-TX 100M Network Transformer Ethernet Filter 16PIN

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KH1629SR

Detail Information

Product Type: Ethernet Transformer Encapsulation Method: Roll Tape Packaging
PCB Mount Style: SMD Shape: Rectangle
PIN Quantity: 16 PINS Lan Transformer Speed: 100 BASE-TX
Operating Temperature: 0-70°C Or -40-85°C Optional Core Quantity: 2 Sets
High Light:

Network Transformer 16 PIN

,

Network Transformer 100BASE-TX 100M

,

KH1629SR

Product Description

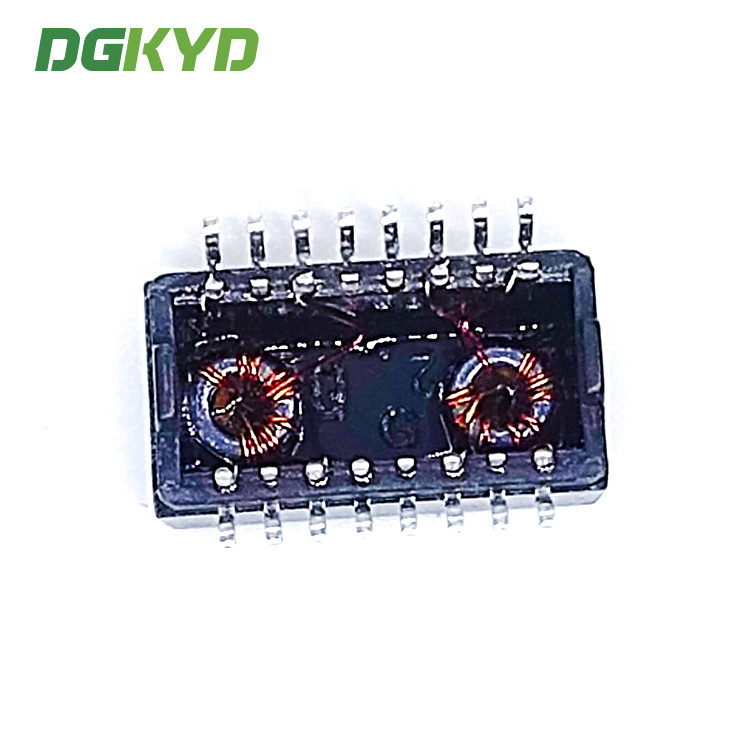

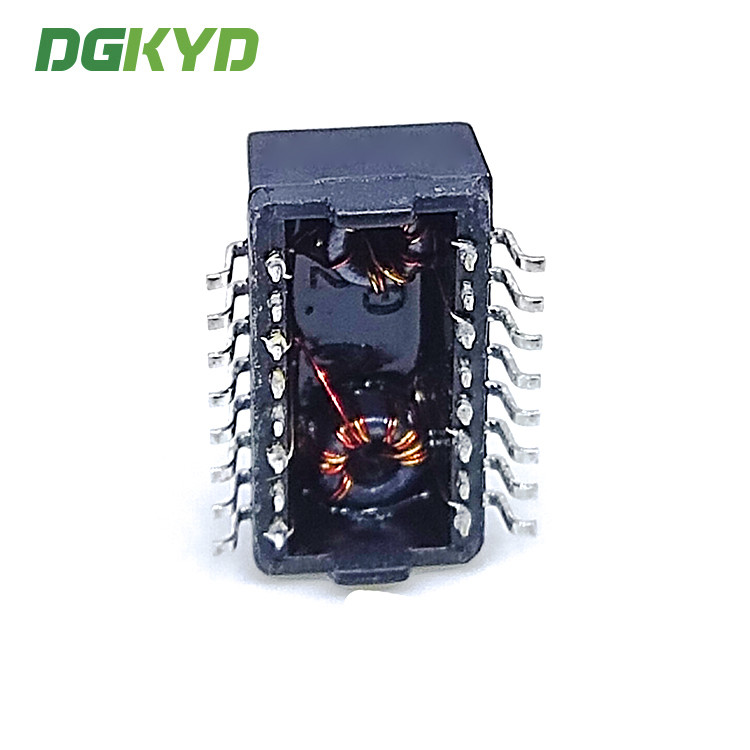

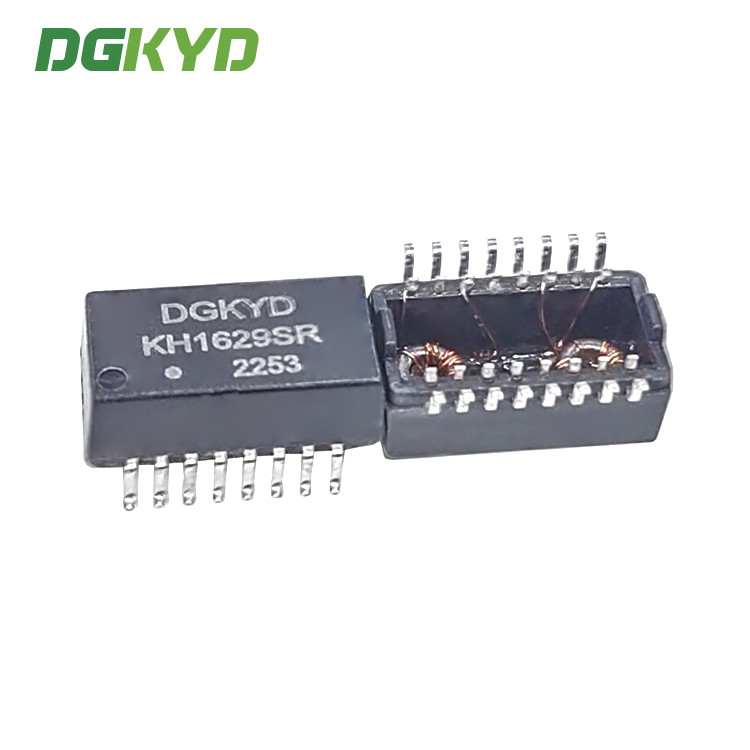

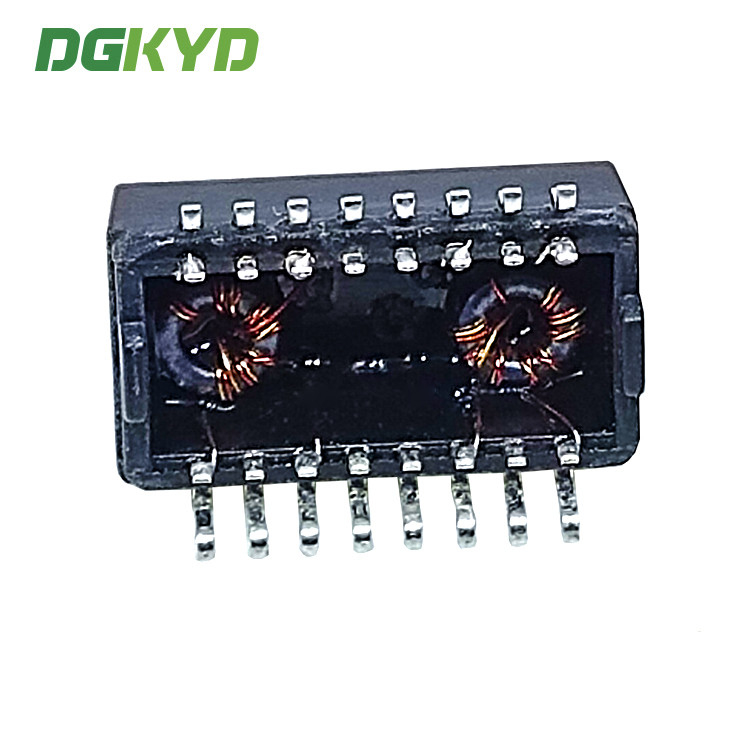

KH1629SR 100BASE-TX 100M Network Transformer Ethernet Filter 16PIN



Parameters

Part Number KH1629SR Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type  Transformer Modular Transformer Style Discrete Transformer
Core Quantity 2 pairs PIN quantity 16
Lan Transformer Speed 10/100 BASE-TX Mounting Type SMD



Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



KH1629SR 100BASE-TX 100M Network Transformer Ethernet Filter 16PIN 0
