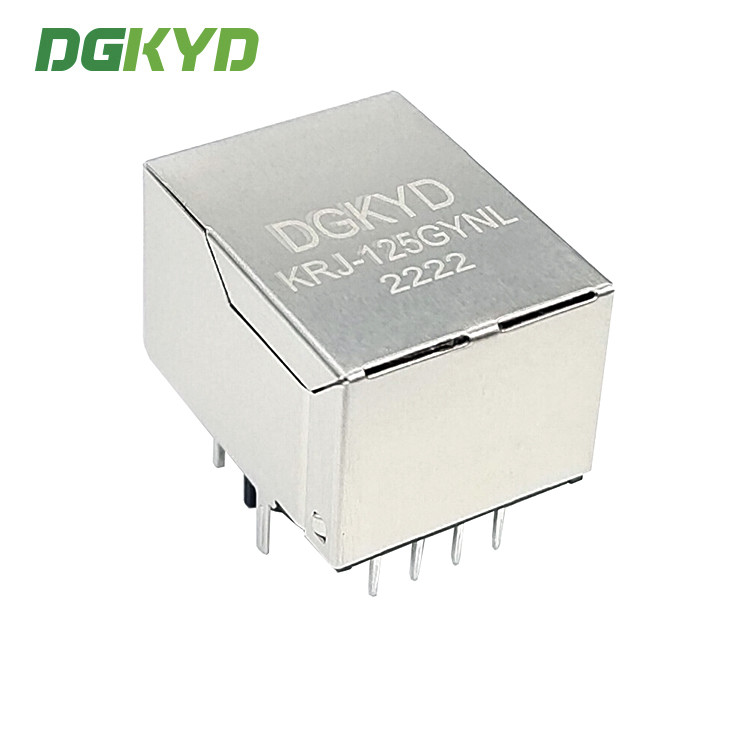

KRJ-125GYNL RJ45 100M Integrated Filter Network Connector 8PIN With Light And Shield

Contact Now

KRJ-125GYNL RJ45 100M Integrated Filter Network Connector 8PIN With Light And Shield

Name: KRJ-125GYNL RJ45 100M Integrated Filter Network Connector 8PIN With Light And Shield
Brand: DGKYD
SKU: KRJ-125GYNL
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (164 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-125GYNL

Detail Information
Application:	PCB	Gender:	Female
Housing Material:	PBT BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch:	DOWN	LED Option:	With LED
Number Of Ports:	1	Number Of Contacts:	8
PCB Mount Angle:	SIDE ENTRY
High Light:	Integrated Filter Network Connector , 21.3mm RJ45 Network Connector , 100M Modular Block Jack

Product Description

KRJ-125GYNL RJ45 100M integrated filter network connector 8PIN with light and shield facing down modular block jack

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm
LEDS:YES
EMI fingers:NO
LEFT LED:Green,RIGHT LED:Yellow
Usage:KRJ-125GYNL

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Drawings:

http://file:///C:/Users/Administrator/Desktop/KRJ-125GYNL.pdf
