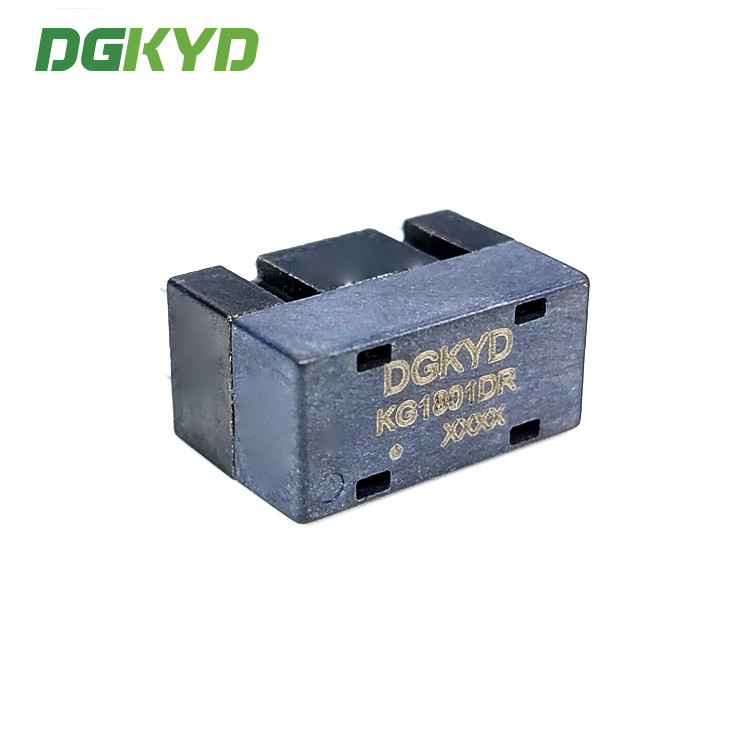

KG1801DR 18PIN 1000BASE-TX 1000M Custom Magnetics Network Lan DIP Ethernet Transformer Equipment

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KG1801DR

Detail Information

Name: Isolated Transformers PIN Quantity: 18 PINS
Lan Transformer Speed: 1000 BASE-TX Mounting Type: DIP
Core Quantity: 4 Sets Isolation Voltage (Vrms Min): 1500
Crosstalk(dB Min )MHz: -33 Leakage Primary@ 100KHz,0.1Vrms: 0.5 UH Max
OCL Primary@ 100KHz,0.1Vrms, 8mA: 350uH Min Operating Temperature: -40°C~+85°C
High Light:

DIP Mounting Ethernet Transformer

,

DIP Ethernet Transformer

,

18 PIN Isolated Transformers

Product Description

KG1801DR 18PIN 1000BASE-TX 1000M Custom Magnetics Network Lan DIP Ethernet Transformer Equipment





Parameters



Part Number KG1801DR Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type  Transformer Modular Transformer Style Discrete Transformer
Core Quantity 4 pairs PIN quantity 18
Lan Transformer Speed 1000 BASE-TX Mounting Type DIP



Drawing

KG1801DR 18PIN 1000BASE-TX 1000M Custom Magnetics Network Lan DIP Ethernet Transformer Equipment 0KG1801DR 18PIN 1000BASE-TX 1000M Custom Magnetics Network Lan DIP Ethernet Transformer Equipment 1KG1801DR 18PIN 1000BASE-TX 1000M Custom Magnetics Network Lan DIP Ethernet Transformer Equipment 2

Competitive Advantage:



Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer

 firstly ,100% test, 0 defect, short lead time are our best advantages



Our Service



World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• DGKYD Is OEM Of FOXCONN For 6 Years
• Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:1-2 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
DGKYD Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
