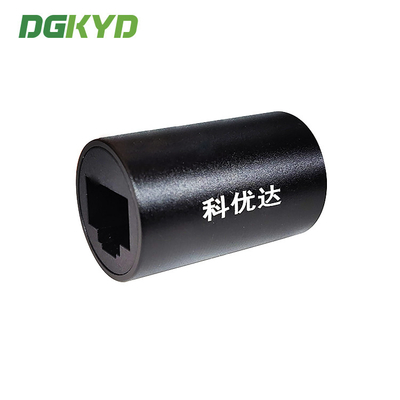

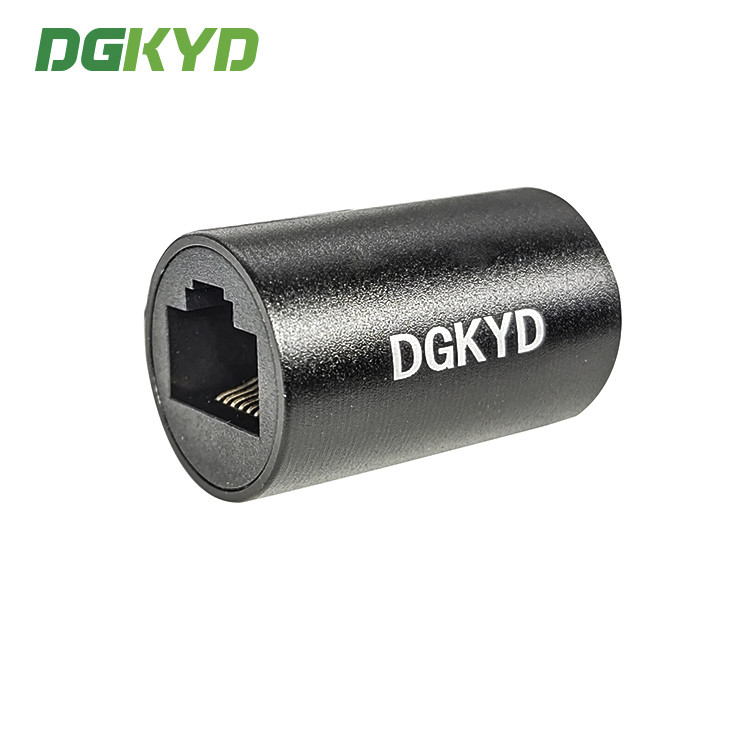

Ultra Thin Straight Through Head RJ45 Waterproof Dual Interface 180 Degree Round Straight Through With Aluminum Shell

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYDYZT1188GWA1D4008

Detail Information

Characteristic: Water Proof Termination: Straight Plug
Application Field: Electronic Equipment LED Color: No
Filter: Without Filter INSERT MATERIAL: PBT
Contact Plating: 30u Glod Plating VOLTAGE RATING: 125 VAC
Storage Temperature: - 40 ℃ ~ 85 ℃ CONTACT RESISTANCE: 30mΩ MAX
Latch: TAB-UP/down
High Light:

180 Degree Cat6 RJ45 Connector

,

Waterproof Cat6 RJ45 Connector

,

Dual Interface Cat6 RJ45 Connector

Product Description

Ultra-thin straight-through head RJ45 waterproof dual interface 180-degree round straight-through with aluminum shell

Parameters

Part Number

DGKYDYZT1188GWA1D4008

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-up/down
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   double Ports Number of Positions 

8

Jack Configuration 1X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

Ultra Thin Straight Through Head RJ45 Waterproof Dual Interface 180 Degree Round Straight Through With Aluminum Shell 0



FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
