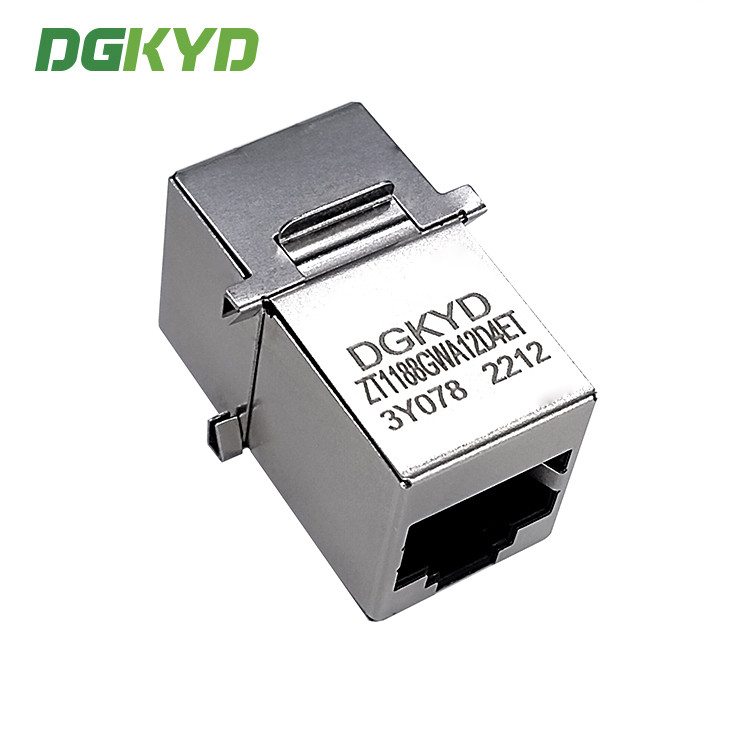

8P8C Has Card Groove CAT.3 With Shielding Modular RJ45 To RJ45 Coupler Shielding Straight Through Module

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYDZT1188GWA12D4ET3Y078

Detail Information
HOUSING:	Abs	Color:	BLACK.
TERMINAL:	PHOSPHOR BRONZE	Gold Plated:	6U
DURABILITY:	750 CYCLES MIN,12.5MM/MINUTE.	OPERATING TEMPERATURE:	-20℃～+70℃.
STORAGE TEMPERATURE:	-40°C~+85°C.	VOLTAGE:	125 VOLTS AC.
CURRENT RATING:	1.5AMP.	DIELECTRIC STRENGTH:	1000 VAC RMS 50HZ OR 60HZ,1MIN.
INSULATION RESISTANCE:	500 MEGA OHMS MIN @ 500V DC.	CONTACT RESISTANCE:	30 MILLIOHMS MAX.
Highlight:	RJ45 To RJ45 Coupler With Shielding , 8P8C RJ45 To RJ45 Coupler , RJ45 To RJ45 Straight Through Module

Product Description

8P8C has card groove CAT.3 with shielding modular RJ45 to rj45 coupler shielding straight-through module

Parameters

Part Number	DGKYDZT1188GWA12D4ET3Y078	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-up
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	No	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	PBS Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
