Modular Socket 8P8C Connector RJ45 Network Interface Without Light Strip Shielding 6U DGKYD52F1188GWA1DB4078

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 4800Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD52F1188GWA1DB4078

Detail Information

Product Type: RJ45 Voltage Rating: Jack
PCB Mount Style: DIP Shape: Rectangle
Number Of Positions/Contacts: 8p8c (RJ45, Ethernet) Filter: Without Filter
Latch: UP Dimension (mm): 15.85*15.6*12.9(mm)
Gold Plating On Contact Pins: 6U Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

RJ45 Connector Without Light Strip

,

Shielding 6U RJ45 Network Connector

,

Modular RJ45 Connector Without Light Strip

Product Description

Modular socket 8P8C connector RJ45 network interface without light strip shielding 6U DGKYD52F1188GWA1DB4078

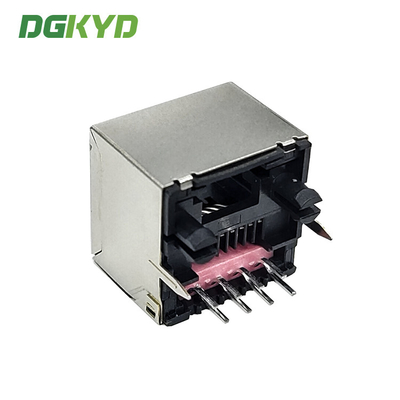

Modular Socket 8P8C Connector RJ45 Network Interface Without Light Strip Shielding 6U DGKYD52F1188GWA1DB4078 0

Modular Socket 8P8C Connector RJ45 Network Interface Without Light Strip Shielding 6U DGKYD52F1188GWA1DB4078 1


 Parameters

Part Number

DGKYD52F1188GWA1DB4078

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter Without Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

Modular Socket 8P8C Connector RJ45 Network Interface Without Light Strip Shielding 6U DGKYD52F1188GWA1DB4078 3
