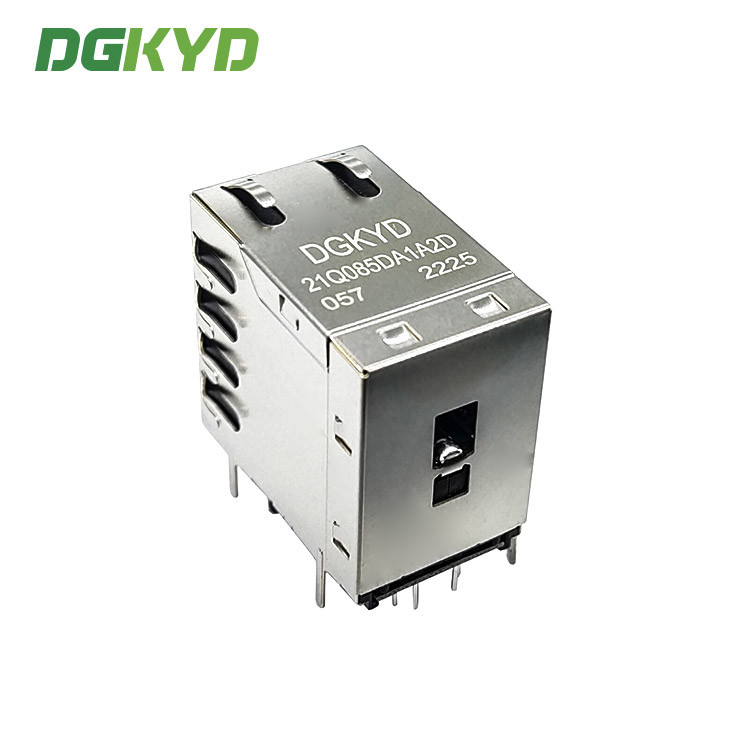

1000 Base-T 2X1 Port Shielded Rj45 Connector DIP PCB Mount

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 560Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21Q085DA1A2D057

Detail Information

Product Type: RJ45 Encapsulation Method: Double In-line Package
PCB Mount Style: DIP Shape: Rectangle
Shield: Brass Number Of Pins: 10
Number Of Cores: 8 Dimension (mm): 17.27* 28.43* 25.83
Gold Plating On Contact Pins: 6U Operating Temperature: - 40 ℃ ~ 85 ℃
Storage Temperature: - 40 ℃ ~ 85 ℃
High Light:

2X1 Port Shielded Rj45 Connector

,

1000 Base-T Shielded Rj45 Connector

,

6U Shielded Rj45 Connector

Product Description

1000 Base-T 2X1 Port RJ45 Jack Socket Connector

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: -40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



 Parameters

Part Number DGKYD21Q085DA1A2D057 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch UP/DOWN
Filter With Filter LED Option With LED
LED Color L-Yellow/R-Green Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Double Ports Number of Positions  10
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material 

PA66 Polyester

Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

1000 Base-T 2X1 Port Shielded Rj45 Connector DIP PCB Mount 01000 Base-T 2X1 Port Shielded Rj45 Connector DIP PCB Mount 11000 Base-T 2X1 Port Shielded Rj45 Connector DIP PCB Mount 2

Pictures

1000 Base-T 2X1 Port Shielded Rj45 Connector DIP PCB Mount 3
